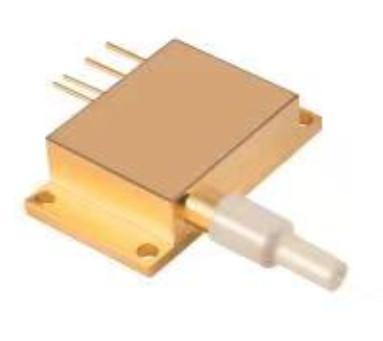

Wavelength Stabilized Fiber Coupled Laser Module 9W-120W 976nm

Product introduction

Delivers diode lasers employing professional coupling technology,that enjoy multiple advantages,e_g_,compact design.stable output power.high power.high efficiency and convenient packaging.There laser diode modules can provide solutions for fiber laser applications and direct suppliers.

Product application

Medical Printing pump source Material processing

Product specification

Output Power(CW)	9	18	36	54	81	100	120	W
Centre Wavelength	976	976	976	976	976	976	976	nm
Spectral Width(FWHM)	2.0	2.0	2.0	2.0	2.0	2.0	2.0	nm
Operating Current	14	14	14	14	14	12	14	A
Operating Voltage	1.7	3.5	6.5	10.0	15.0	22.0	22.0	V
Threshold Current	0.7	0.7	0.7	0.7	0.7	0.7	0.7	A
Convention Efficiency	45	45	45	45	45	45	45	%
Slop Efficiency	0.9	1.8	3.6	5	8	11.5	11	W/A
Core Diameter	105	105	105	105	106.5	106.5	106.5	μm
Numeric Aperture	0.22	0.22	0.22	0.22	0.22	0.22	0.22
Fiber length	0.9	0.9	0.9	0.9	0.9	0.9	0.9	M
Proestion Tube	0.9	0.9	0.9	0.9	0.9	0.9	0.9	nm
Fiber Bend Radius	37.5	37.5	37.5	37.5	37.5	37.5	37.5	nm
Package	T1V	T3V	T4.8	T60W	T90W	T120W	T120W
Operating Temperature	20-30							℃
Storage Temperature	-30_70							℃
Humidity	5-85							%
Wavelength shift vs. Temperature	0.02							nm/℃
Wavelength shift vs.Current	0.02							nm/A
