1060mm 80g Sheet Paper Waterbased UV Varnish Spot Coating Machine

Categories UV Varnishing Machine
Brand Name: ECOOGRAPHIX
Model Number: ECOO SD1060
Certification: CE
Place of Origin: CHINA
MOQ: 1SET
Payment Terms: L/C, T/T
Supply Ability: 500SETS
Delivery Time: 45DAYS
Packaging Details: Standard Export Packing
Price: Negotiable
Max. laminating Sheet (mm): 730X1060mm
Min Sheet Size: 310x406mm
Power: 44KW
Machine Speed: about 9000s/h
Machine weight (kgs): 8500KGS
Condition: New
Application: Water-based Varnish, UV Varnish
Warranty: One Year
Configurations: Feeder, Coating Unit,UV Curing and IR Drying,Paper Delivery
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

1060mm 80g Sheet Paper Waterbased UV Varnish Spot Coating Machine

80g Paper Sheet UV Spot and Overall Varnish Coating Machine

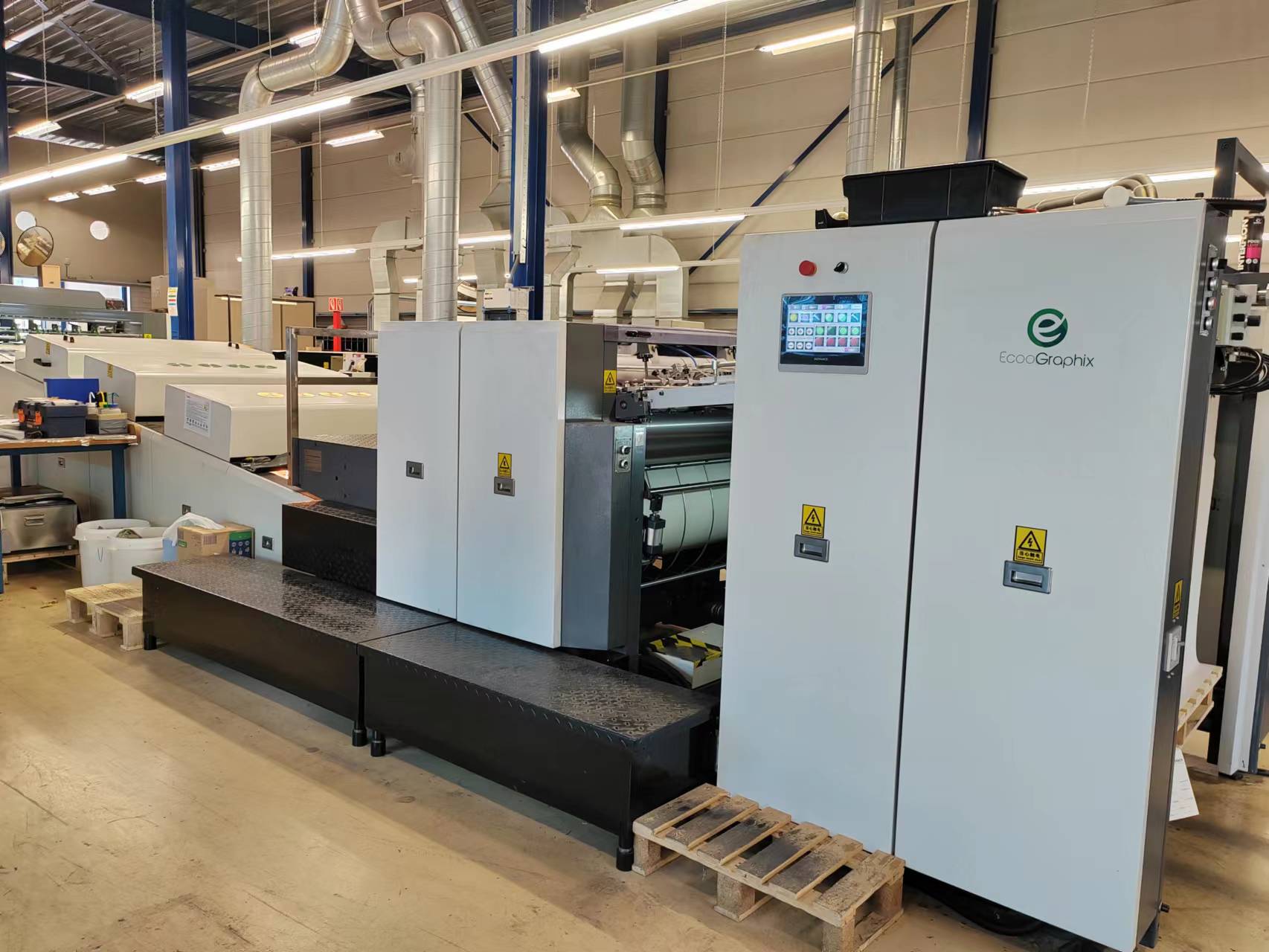

The Ecoo SD1060 UV coating machine can do spot UV and overall UV coating on printed matter and packaging products such as the books, posters, cartons,adhesive stickers etc. This machine is consist of Auto feed system, vanishing system, curing system and auto delivery system. It not only improves the quality of printed materials, but also increases the value of the products, makes more profits to printing companies. Because of the high speed and efficiency, it is getting very good reputations from clients all over the world.


The machines can be used for water based blister varnish coating, skin varnish coating(for tooth brush or toys packaging),gloss coating, or substitute for plastic laminating, or UV varnishing, with speed up to 9000s/h,by using printing blanket or flexo plate with anilox roller.



PRODUCT DESCRIPTION
* The machine is suitable for using water-based varnish, UV varnish.
* Cold-water non-curling system: The paper will be non-curling after separated.
* Low cost: Ceramic anilox roller coating, minimize gluing amount to 5g/sqm.
* The heating energy cycle drying system makes the whole machine power consumption about 15kw/h.
* High efficiency:The machine working speed reaches to 70m/min, 9000sheets/h.


Standard Configuration: Selectable Configuration:

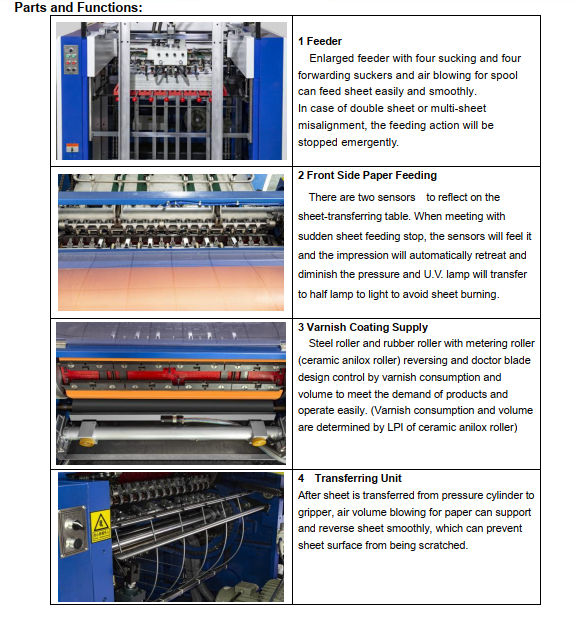

Auto Feeder

Multifunctional Coating Unit

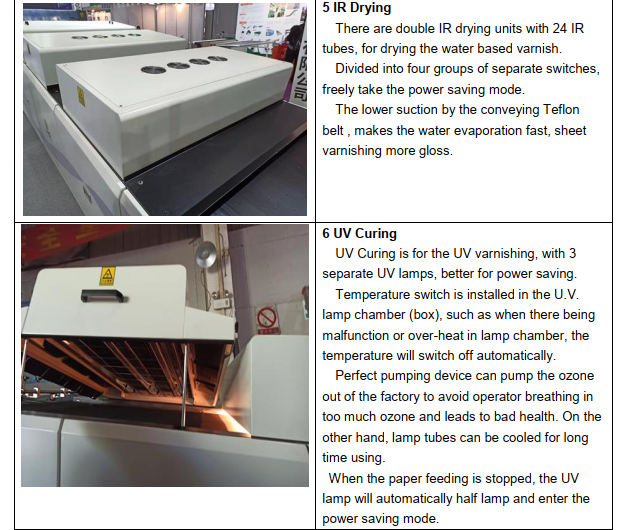

UV Curing System

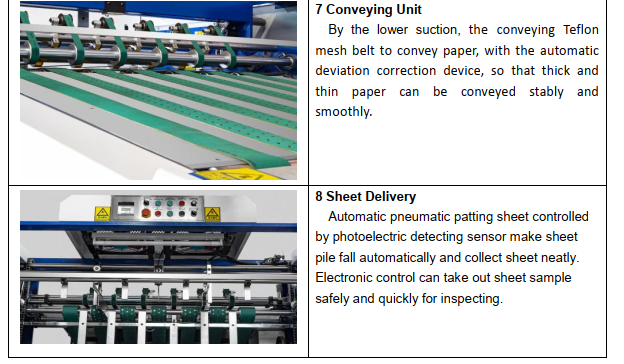

Auto Delivery Unit

Auto Control


ModelEcoo SD-1060
Max.sheet size730x1060mm
MIN.sheet size310X406mm
Max.coating size720x1040mm
Sheet thickness80-500gsm
Coating registration accuracy±0.2mm
Production speed9000sheets/hour
Weight8T
Dimension10460x2725x1930mm
Power44KW
Remark: Production speed depending on sheet weight, size and quality
