Auto 260x190mm 15KW Laminating UV Spot Coater 60M/Min

Categories UV Varnishing Machine
Brand Name: ECOOGRAPHIX
Model Number: ECOO 620A
Certification: CE
Place of Origin: CHINA
MOQ: 1SET
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 500SETS
Delivery Time: 30DAYS
Packaging Details: Standard Export Packing
Max. laminating Sheet (mm): 620x450mm/ 24'' x 18''
Min Sheet Size: 260x190mm
Power: 15KW
Laminating speed (m/min): 10-60
Machine weight (kgs): 1200KGS
Condition: New
Application: Water-based Glue, Oil-based Glue, Thermal Film, Glueless Laminating Film
Warranty: One Year
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

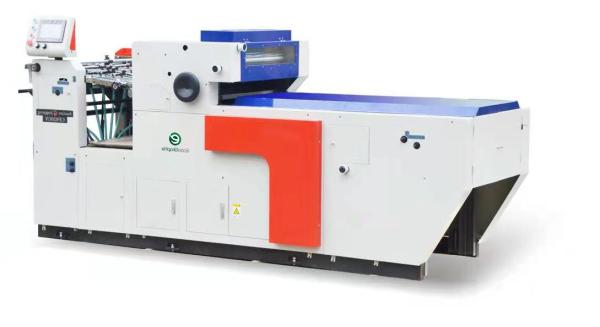

Auto 260x190mm 15KW Laminating UV Spot Coater 60M/Min

Small Digital UV Spot Coater Laminating Machine 24'' 5500Sheets Per Hour


The Ecoo CF 620A UV coating machine can do spot UV and overall UV coating on printed matter and packaging products such as the books, posters, adhesive stickers etc. This machine is consist of Auto feed system, vanishing system, curing system and auto delivery system. It not only improves the quality of printed materials, but also increases the value of the products, makes more profits to printing companies. Because of the high speed and efficiency, it is getting very good reputations from clients all over the world.


PRODUCT DESCRIPTION
* The machine is suitable for using water-based glue, solvent-based glue, and thermal film.
* Cold-water non-curling system: The paper will be non-curling after separated.
* Low cost: Ceramic anilox roller coating, minimize gluing amount to 5g/sqm.
* The heating energy cycle drying system makes the whole machine power consumption about 15kw/h.
* High efficiency:The machine working speed reaches to 70m/min, 5500sheets/h.


Remarks:
Laminating speed depend on paper weight, film thickness and gule material quality.
Subject to change without notice.
Standard Configuration: Selectable Configuration:

Auto Feeder

Multifunctional Coating Unit

UV Curing System

Auto Delivery Unit

Auto Control


ModelEcoo CF-620A
Max.sheet size620×450mm, 24'' x 18''
MIN.sheet size260×190mm
Sheet weight60-350g/m2
Production speed5500 sheet/hour
Power15KW
UV lamp2pcsx5.6kw
Weight1200KG
Dimension2950×1200×1450mm
