9000 Sheets/H 730x1060mm Spot UV Coating Machine Varnishing

9000 Sheets/H 730x1060mm Spot UV Coating Machine Varnishing

9000 Sheets/H 730x1060mm Spot UV Coating Machine Varnishing
9000 Sheets/H 730x1060mm Spot UV Coating Machine Varnishing
Categories UV Varnishing Machine
Brand Name: EcooGraphix
Model Number: ECOO SD-1060
Certification: ISO9000, CE
Place of Origin: China
MOQ: 1 SET
Payment Terms: L/C, T/T
Supply Ability: 500 Sets/Year
Delivery Time: 45 Days
Packaging Details: Standard Export Packing
Price: Negotiable
Classification: Spot UV Coating Machine
Max. sheet size: 730x1060mm
Min. sheet size: 310x406mm
Max. coating size: 720x1050mm
Sheet thickness: 80-500gsm
Coating registration accuracy: +/- 0.2mm
Production speed: 9000sheets/hour
Remark: Production speed depending on sheet weight, size and quality
Dimension: 10460x2725x1930mm
Contact Now
Company Info.
Hangzhou Ecoographix Digital Technology Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

9000 Sheets/H 730x1060mm Spot UV Coating Machine Varnishing

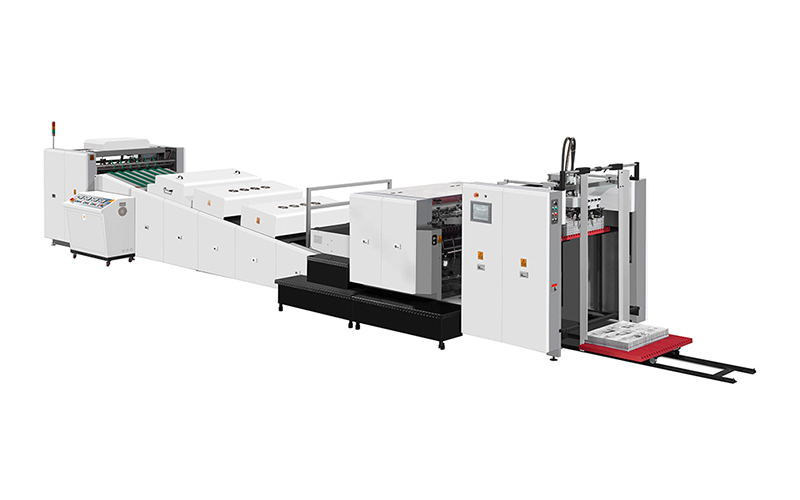

9000 Sheets/Hour 730x1060mm Spot UV Coating Machine



•○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○•
♥ Introduction
High Speed UV Spot and Overall Coating machine adopts upper-swaygripper-pass-sheet method to enable max speed up 9000 sheets/hour. UV curing system with Teflon conveying belt has characteristic of higher speed, precise orientation and UV curing higher efficiency and lower power consumption. After sheet travelling through UV coater and being transferred directly by teflon belt, grippers can not be heated by high temperature from UV light, which prevent them from being damaged or deformed to ensure easy maintenance.



•○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○•
♠ Specification

High Speed UV Spot And Overall Coating Machine

Model ECOO SD-1060

Max. sheet size 730 x 1060mm

Min. sheet size 310 x 406mm

Max. coating size 720 x 1050mm

Sheet thickness 80 - 500gsm


Max. coating thickness 0.025mm

Coating media Water Base Varnish or UV Varnish


Coating registration accuracy ± 0.2mm

Production speed 9000sheets/hour

Weight 8T

Dimension 10460 x 2725 x 1930mm

Power Max. 44KW

Remark: Production speed depending on sheet weight, size and quality

​​

High Speed UV Spot And Overall Coating Machine
ModelECOO SD-1050
Max. sheet size730 x 1050mm
Min. sheet size310 x 406mm
Max. coating size720 x 1040mm
Sheet thickness80 - 500gsm
Min. coating thickness0.025mm
Coating mediaWater Base Varnish or UV Varnish
Coating registration accuracy± 0.2mm
Production speed9000sheets/hour
Weight8T
Dimension10460 x 2725 x 1930mm
PowerMax. 44KW
Remark: Production speed depending on sheet weight, size and quality

​




•○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○•

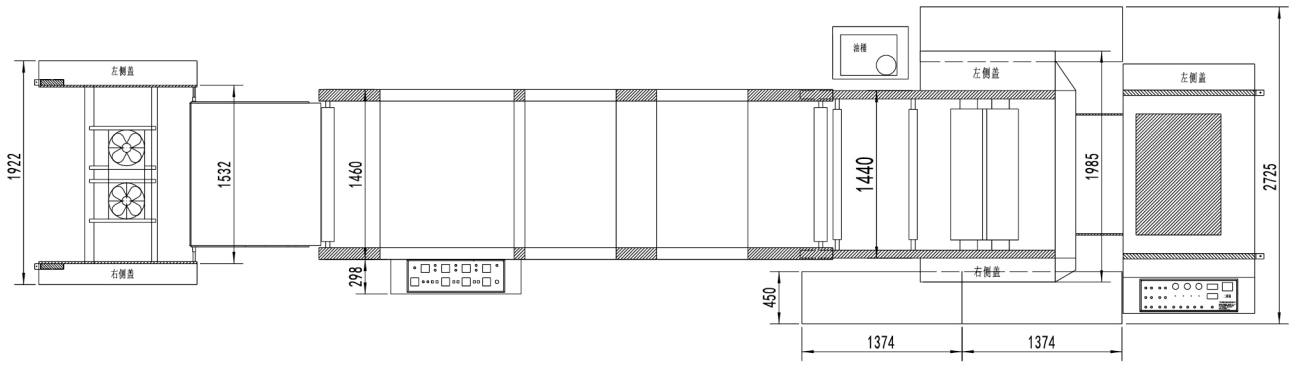

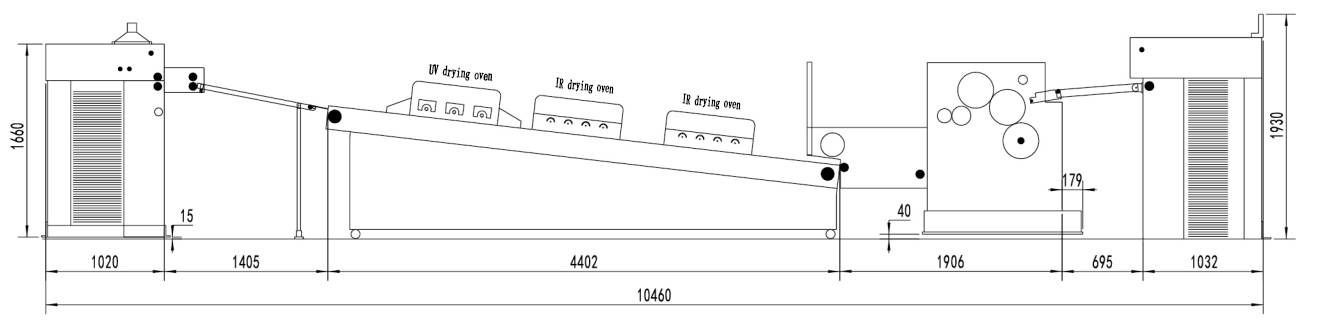

♦ Floor Plan



Standard Equipments:
Auto Feeder
Multifunctional Coating Unit
UV Curing System
Auto Delivery Unit
Auto Control


Optional Equipments:
Non-stop Feeding and Delivery Mechanism
Fold the Car Device
Ceramic Anilox Roller





•○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○•

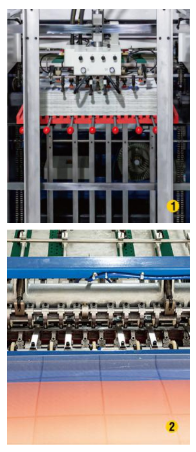

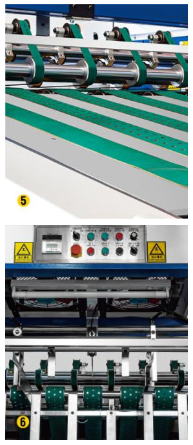

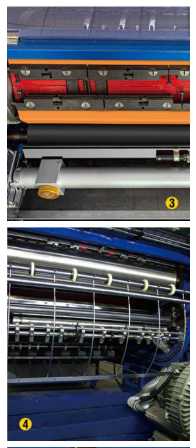

♣ Main Features

​


Feeder
High speed feeder with four sucking and four forwarding suckers can feed sheet smoothly.
Sheet Transferring Unit
Upper swing sheet transferring method can transfer sheet smoothly at high speed to pres-sure cylinder exactly.
Varnish Supply
Steel roller and rubber roller with metering roller reversing and doctor blade design control by varnish consumption and volume to meet the demand of products and operate easily. (Varnish consumption and volume are determined by LPI of ceramic anilox roller)
Transferring Unit
After sheet is transferred from pressure cylinder to gripper, air volume blowing for paper can support and reverse sheet smoothly, which can prevent sheet surface from being scratched.
Conveying Unit
Upper and lower conveying belt can form thin sheet to be curved for smoothly delivery.
Sheet Delivery
Automatic pneumatic patting sheet controlled by photoelectric detecting sensor make sheet pile fall automatically and collect sheet neatly. Electronic control can take out sheet sample safely and quickly for inspecting.

​




•○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○•

♥ Producing And Packaging

From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.




•○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○•
♠ Certifications




•○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○• •○•○•○•
♦ FAQ

Q1: What are your main products ?

A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.

You can get the equipment and consumables all in one and no worry about the after-sales service from our company.


Q2: Where is your factory ?

A: Our CTP Processor machine factory is in Shanghai, you are warmly welcome to visit our factory!



Q3: What is your warranty for the CTPs ?

A: Three years' Laser Head and main spare parts for the CTPs, one year for the Processor.
If the customer use EcooGraphix CTP plate with the CTP machine, we will provide the Lifetime Warranty.


Q4: Can you also supply the Workflow and RIP ?

A: Yes, we can provide the Workflow Brainnew and RIP Compose V12.


Q5: What about the installation and after-sales technician support ?

A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.
These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
