Overview
The TL1102 pressure switch (anti-corrosion medium pressure)/pressure controller adopts a bellows type sensor, which can be used for corrosive gases and liquid media.
The setting value of TL1102 pressure switch (anti-corrosion medium pressure)/pressure controller is adjustable, with an adjustment range of -0.1 to 6.3 MPa. The temperature range for use is wide.
Main Technical Performance
| Common | Explosion proof type | |
|---|---|---|
| Working viscosity | <1×10－3m2/s | <1×10－3m2/s |
| Switching element | microswitch | Sealed switch |
| Explosion proof grade | - | Exde Ⅱ CT4～T6 Certificate Number: GYB24.1453X |
| Degrees of protection provided by enclosure | IP65(Compliant with DIN40050 and equivalent to IP65 in GB4208) | IP54(Compliant with DIN40050 and equivalent to IP54 in GB4208) |
| Ambient temperature | －40℃～50℃ | －20℃～50℃ |
| Medium temperature | 0～120℃ | 0～95℃ |
| Installation position | - | Pressure interface vertically downward |
| Anti-Vibration Performance | TL1102:40m/s2；TL1103:20m/s2 | Max:20m/s2 |
| Repeatability error | ≤1% | ≤1% |
| Contact capacity | AC 220V 6A(Resistive) | DC 250V 0.25A(Resistive) 60Wmax AC 250V 5A(Resistive) 1250VAmax |

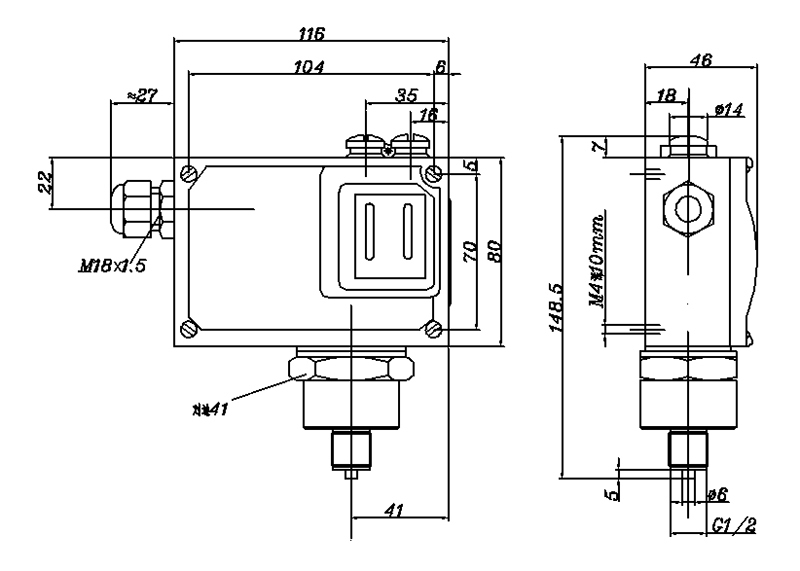

specifications
TL1102 switching error is not adjustable
| Setting value adjustment range (MPa) | Switching difference not greater than (MPa) | **Allowable pressure ① (MPa) | Switching frequency/minute | Pressure sensor material | External thread of interface | Weight (kg) | Outline dimension drawing number | Order catalog number | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Casing | Corrugated tube | Common | Explosion proof type | Common | Explosion proof type | ||||||
| －0.1～0 | 0.007 | 1 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 1.0 | 01 | 04 | TL1102.10-106106 | TL1102.50-106106 |
| －0.1～0.1 | 0.008 | 1 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 1.0 | 01 | 04 | TL1102.10-105106 | TL1102.50-105106 |
| －0.1～0.16 | 0.009 | 1 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 1.0 | 01 | 04 | TL1102.10-104106 | TL1102.50-104106 |
| －0.1～0.25 | 0.012 | 1 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 1.0 | 01 | 04 | TL1102.10-103106 | TL1102.50-103106 |
| 0～0.1 | 0.008 | 1 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 1.0 | 01 | 04 | TL1102.10-110106 | TL1102.50-110106 |
| 0～0.16 | 0.009 | 1 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 1.0 | 01 | 04 | TL1102.10-111106 | TL1102.50-111106 |
| 0.01～0.25 | 0.01 | 1 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 1.0 | 01 | 04 | TL1102.10-145106 | TL1102.50-145106 |
| 0.02～0.4 | 0.03 | 2 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 0.85 | 02 | 05 | TL1102.10-151106 | TL1102.50-151106 |
| 0.03～0.6 | 0.035 | 2 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 0.85 | 02 | 05 | TL1102.10-156106 | TL1102.50-156106 |
| 0.03～1 | 0.04 | 2 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 0.85 | 02 | 05 | TL1102.10-158106 | TL1102.50-158106 |
| 0.05～1.6 | 0.08 | 5 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 0.9 | 03 | 06 | TL1102.10-167106 | TL1102.50-167106 |
| 0.05～2.5 | 0.09 | 5 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 0.9 | 03 | 06 | TL1102.10-169106 | TL1102.50-169106 |
| 0.3～6.3 | 0.2 | 8.5 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 0.9 | 03 | 06 | TL1102.10-192106 | TL1102.50-192106 |
TL1102 switching difference adjustable
| Setting value adjustment range (MPa) | Switching difference not greater than (MPa) | **Allowable pressure ① (MPa) | Switching frequency/minute | Pressure sensor material | External thread of interface | Weight (kg) | Outline dimension drawing number | Order catalog number | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Casing | Corrugated tube | Common | Explosion proof type | Common | Explosion proof type | ||||||
| －0.1～0 | 0.019 | 1 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 1.05 | 01 | 04 | TL1102.00-106106 | TL1102.40-106106 |
| －0.1～0.1 | 0.021 | 1 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 1.05 | 01 | 04 | TL1102.00-105106 | TL1102.40-105106 |
| －0.1～0.16 | 0.022 | 1 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 1.05 | 01 | 04 | TL1102.00-104106 | TL1102.40-104106 |
| －0.1～0.25 | 0.024 | 1 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 1.05 | 01 | 04 | TL1102.00-103106 | TL1102.40-103106 |
| 0～0.1 | 0.016 | 1 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 1.05 | 01 | 04 | TL1102.00-110106 | TL1102.40-110106 |
| 0～0.16 | 0.020 | 1 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 1.05 | 01 | 04 | TL1102.00-111106 | TL1102.40-111106 |
| 0.01～0.25 | 0.024 | 1 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 1.05 | 01 | 04 | TL1102.00-145106 | TL1102.40-145106 |
| 0.02～0.4 | 0.08 | 2 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 0.9 | 02 | 05 | TL1102.00-151106 | TL1102.40-151106 |
| 0.03～0.6 | 0.09 | 2 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 0.9 | 02 | 05 | TL1102.00-156106 | TL1102.40-156106 |
| 0.03～1 | 0.1 | 2 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 0.9 | 02 | 05 | TL1102.00-158106 | TL1102.40-158106 |
| 0.05～1.6 | 0.19 | 5 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 0.95 | 03 | 06 | TL1102.00-167106 | TL1102.40-167106 |
| 0.05～2.5 | 0.2 | 5 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 0.95 | 03 | 06 | TL1102.00-169106 | TL1102.40-169106 |
| 0.3～6.3 | 0.65 | 8.5 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 0.95 | 03 | 06 | TL1102.00-192106 | TL1102.40-192106 |
TL1103 switching error is not adjustable (small switching error, no explosion-proof type)
| Setting value adjustment range (MPa) | Switching difference not greater than (MPa) | **Allowable pressure ① (MPa) | Switching frequency/minute | Pressure sensor material | External thread of interface | Weight (kg) | Outline dimension drawing number | Order catalog number | |
|---|---|---|---|---|---|---|---|---|---|
| Casing | Corrugated tube | ||||||||
| －0.1～0 | 0.0045 | 1 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 1.0 | 01 | TL1103.10-106106 |
| －0.1～0.1 | 0.005 | 1 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 1.0 | 01 | TL1103.10-105106 |
| －0.1～0.16 | 0.0065 | 1 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 1.0 | 01 | TL1103.10-104106 |
| －0.1～0.25 | 0.01 | 1 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 1.0 | 01 | TL1103.10-103106 |
| 0～0.1 | 0.0045 | 1 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 1.0 | 01 | TL1103.10-110106 |
| 0～0.16 | 0.006 | 1 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 1.0 | 01 | TL1103.10-111106 |
| 0.01～0.25 | 0.007 | 1 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 1.0 | 01 | TL1103.10-145106 |
| 0.02～0.4 | 0.016 | 2 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 1.0 | 01 | TL1103.10-151106 |
| 0.03～0.6 | 0.02 | 2 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 0.85 | 02 | TL1103.10-156106 |
| 0.03～1 | 0.03 | 2 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 0.85 | 02 | TL1103.10-158106 |
| 0.05～1.6 | 0.05 | 5 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 0.85 | 02 | TL1103.10-167106 |
| 0.05～2.5 | 0.06 | 5 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 0.85 | 02 | TL1103.10-169106 |
| 0.3～6.3 | 0.12 | 8.5 | 20 | 1Cr18Ni9Ti | stainless steel(316L) | G1/2 | 0.9 | 03 | TL1103.10-192106 |
|
