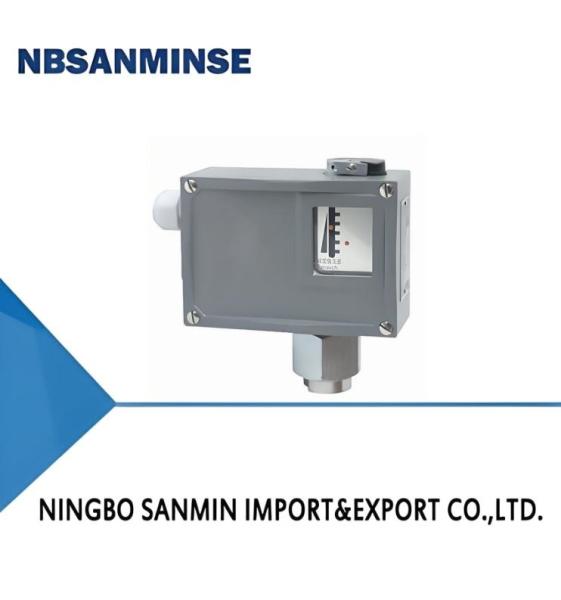

TL0102 pressure switch pressure controller

Overview
The TL0102 pressure switch adopts a diaphragm type sensor, and some specifications of the sensor housing material are stainless steel, which can be used for corrosive media, as well as neutral gases such as air, gas, water vapor, and liquid media such as oil.
The setting value of TL0102 pressure switch is adjustable, with a range of 0-1MPa. High sensitivity control in low voltage range.


Main Technical Performance


CommonExplosion proof type
Working viscosity<1×10－3m2/s<1×10－3m2/s
Switching elementmicroswitchSealed switch
Explosion proof grade-Exde Ⅱ CT4～T6
Degrees of protection provided by enclosureIP65(Compliant with DIN40050 and equivalent to IP65 in GB4208)IP54(Compliant with DIN40050 and equivalent to IP54 in GB4208)
Ambient temperature－5℃～40℃－5℃～40℃
Medium temperature0～120℃0～95℃
Installation position-Pressure interface vertically downward
Anti-Vibration Performance20m/s2Max:20m/s2
Repeatability error≤1.5%≤1.5%
Contact capacityAC 220V 6A(Resistive)DC 250V 0.25A(Resistive) 60Wmax
AC 250V 5A(Resistive) 1250VAmax


Specifications
TL0102 switching error is not adjustable

Setting value adjustment range
(MPa)		Switching difference not exceeding (MPa)**Allowable pressure ① (MPa)Switching frequency/minutePressure sensor materialInternal thread of interface

Weight

(kg)

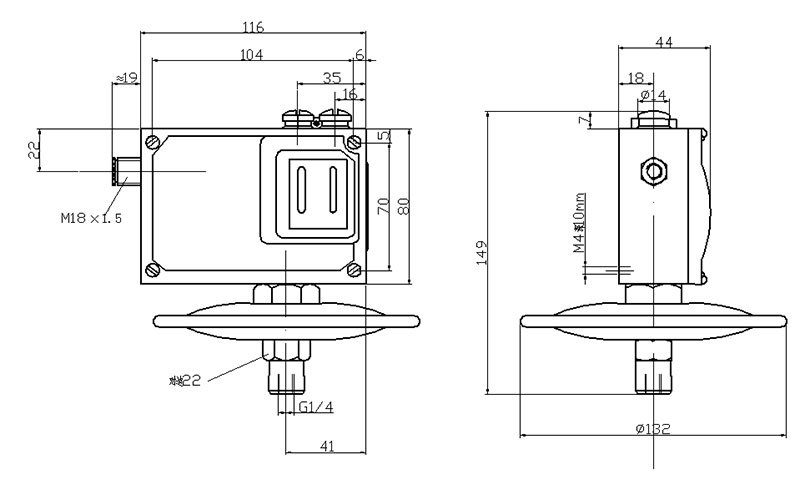

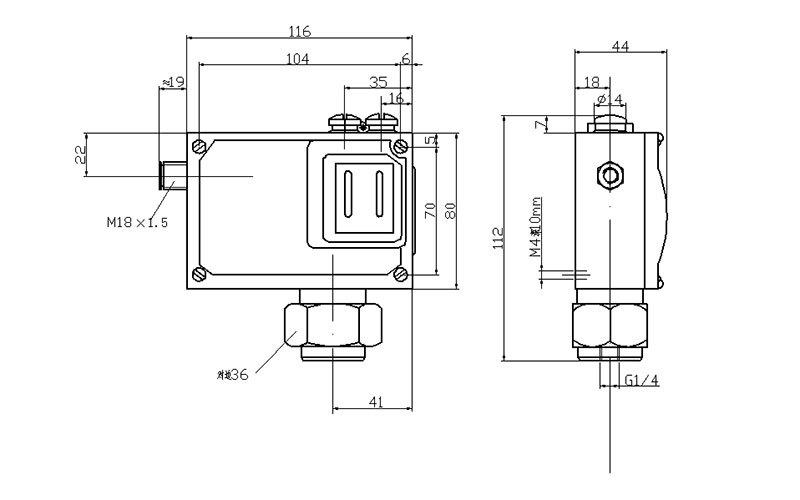

Outline dimension drawing numberOrder catalog number
CasingDiaphragmCommonExplosion proof typeCommonExplosion proof type
0～0.010.00120.110stainless steelstainless steel(316L)G1/40.90103TL0102.10-107117TL0102.50-107117
0～0.0250.00180.110stainless steelstainless steel(316L)G1/40.90103TL0102.10-108117TL0102.50-108117
0～0.040.00250.110stainless steelstainless steel(316L)G1/40.90103TL0102.10-109117TL0102.50-109117
0.05～0.40.0610②10stainless steel1Cr18Ni9Tistainless steel(316L)G1/40.90204TL0102.10-163117TL0102.50-163117
0.05～0.60.0710②10stainless steel1Cr18Ni9Tistainless steel(316L)G1/40.90204TL0102.10-164117TL0102.50-164117
0.05～10.110②10stainless steel1Cr18Ni9Tistainless steel(316L)G1/40.90204TL0102.10-166117TL0102.50-166117


TL0102 switch difference adjustable

Setting value adjustment range
(MPa)		Switching difference not exceeding (MPa)**Allowable pressure ① (MPa)Switching frequency/minutePressure sensor materialInternal thread of interface

Weight

(kg)

Outline dimension drawing numberOrder catalog number
CasingDiaphragmCommonExplosion proof typeCommonExplosion proof type
0～0.010.0040.110stainless steelstainless steel(316L)G1/40.950103TL0102.00-107117TL0102.40-107117
0～0.0250.0050.110stainless steelstainless steel(316L)G1/40.90103TL0102.00-108117TL0102.40-108117
0～0.040.0070.110stainless steelstainless steel(316L)G1/40.950103TL0102.00-109117TL0102.40-109117
0.05～0.40.1810②10stainless steel1Cr18Ni9Tistainless steel(316L)G1/40.950204TL0102.00-163117TL0102.40-163117
0.05～0.60.2210②10stainless steel1Cr18Ni9Tistainless steel(316L)G1/40.950204TL0102.00-164117TL0102.40-164117
0.05～10.310②10stainless steel1Cr18Ni9Tistainless steel(316L)G1/40.950204TL0102.00-166117TL0102.40-166117


TL0103 switching difference is not adjustable (small switching difference, no explosion-proof type)

Setting value adjustment range
(MPa)		Switching difference not exceeding (MPa)**Allowable pressure ① (MPa)Switching frequency/minutePressure sensor materialInternal thread of interface

Weight

(kg)

Outline dimension drawing numberOrder catalog number
CasingDiaphragm
0～0.010.00060.110stainless steelstainless steel(316L)G1/40.901TL0103.70-107117
0～0.0250.0010.110stainless steelstainless steel(316L)G1/40.901TL0103.70-108117
0～0.040.00180.110stainless steelstainless steel(316L)G1/40.901TL0103.70-109117
0.05～0.40.03510②10stainless steel1Cr18Ni9Tistainless steel(316L)G1/40.902TL0103.70-163117
0.05～0.60.0410②10stainless steel1Cr18Ni9Tistainless steel(316L)G1/40.902TL0103.70-164117
0.05～10.0510②10stainless steel1Cr18Ni9Tistainless steel(316L)G1/40.902TL0103.70-166117


Note: In practical work, even a brief peak pressure cannot exceed this value.
② Refers to the static pressure value.
