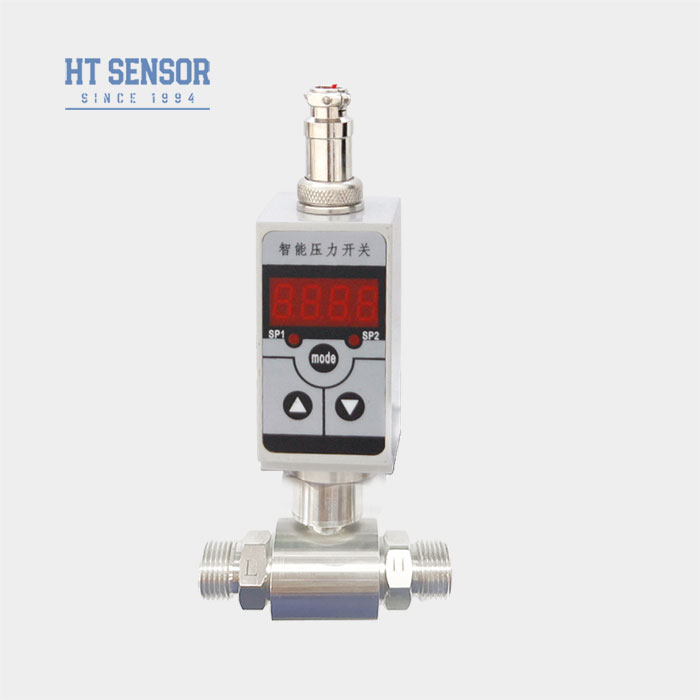

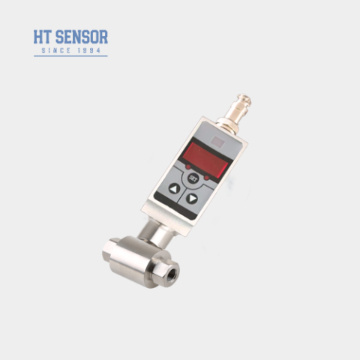

BPZK04-D Electronic Pressure SwitchIntroduction of differential electronic pressure switch Differential Pressure Transmitter
:BPZK04-D differential electronic pressure switch is a fully digital
measurement and control product integrating pressure measurement,
point control display and transmission output. The two pressure
difference values are measured through the positive and negative
pressure ends and fed back to the field. The output 4-20mA standard
signal is displayed on the spot with two relays. When the pressure
reaches the set value, the relay is closed or disconnected to
control. Allows field use of keyboard to fine-tune parameters and
differential pressure control points.
| Performance Parameters of differntial electronic pressure switch |
| Measurement Range | 0-10KPa~2MPa(Differential Pressure) |
| Pressure Type | Differential Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Long-Term Stability | ±0.3%F.S/year |
| Zero Point Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Compensation Temperature | 0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Relay Control | 1-2 channels of control or electronic switch quantity control |
| Contact Life | Exceeds 100,000 cycles |
| Display Range | -1999~9999 |
| Installation Method | vertical axis installation |
| Explosion-proof Rating | Intrinsically Safe |
| Protection Rating | IP65 |
| Weight | ~1.2kg |
Product Features of differnetial electronic pressure switch:- Stainless steel structure design, with a variety of differential
pressure interface options.
- Equipped with high brightness LED or LCD pressure display.
- Power supply: 24VDC 24VAC.
- One 3-wire 4-20mA+ two control relay outputs are available, with
the ability to set arbitrary relay values and states for accurate
and reliable control.
Applications of differential electronic pressure switch:
Measurement and control of differential pressure of fluid media in industries such as hydropower, metallurgy, and chemical
engineering, for automatic control applications.

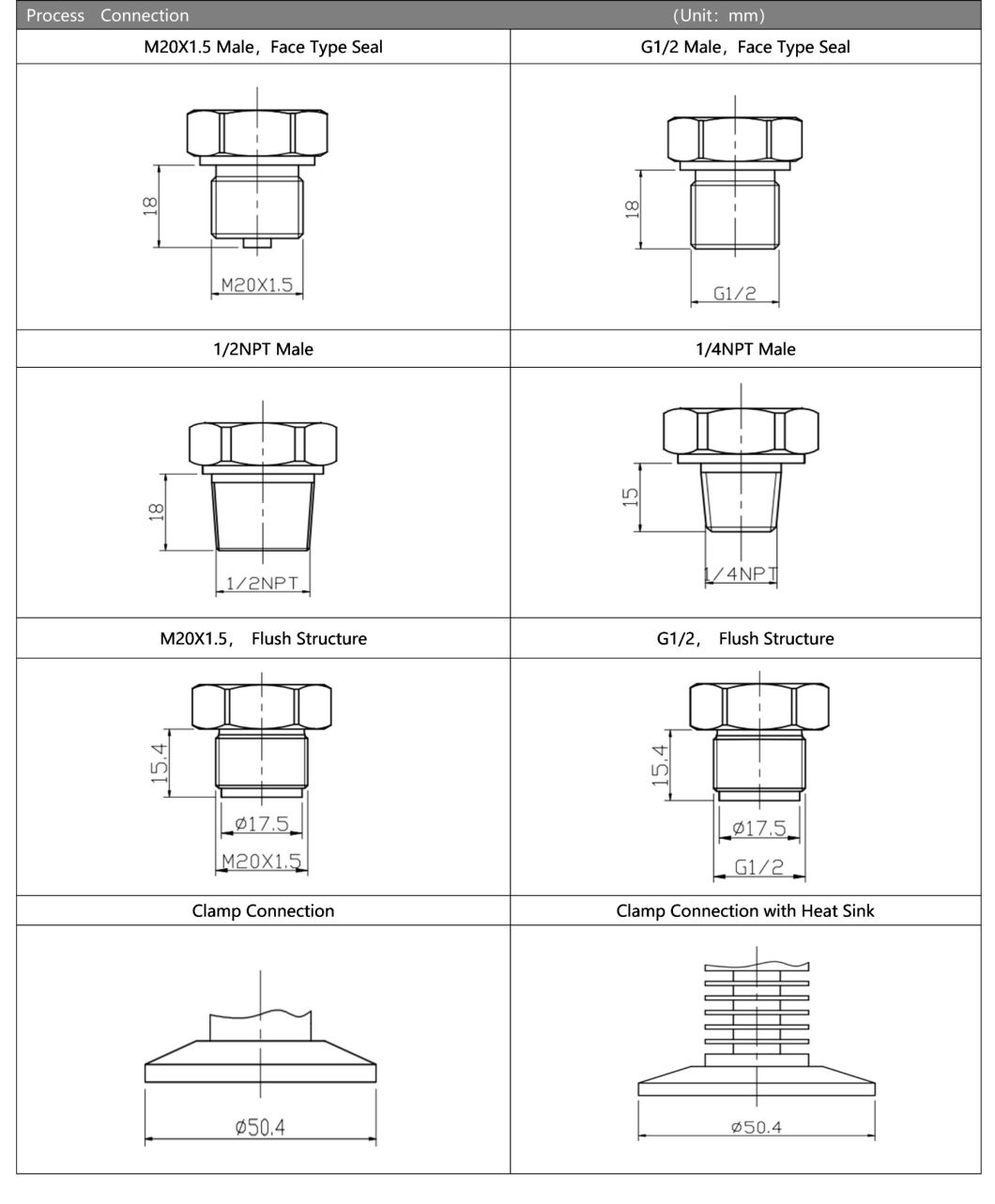

| Outline Construction of electronic pressure switch |

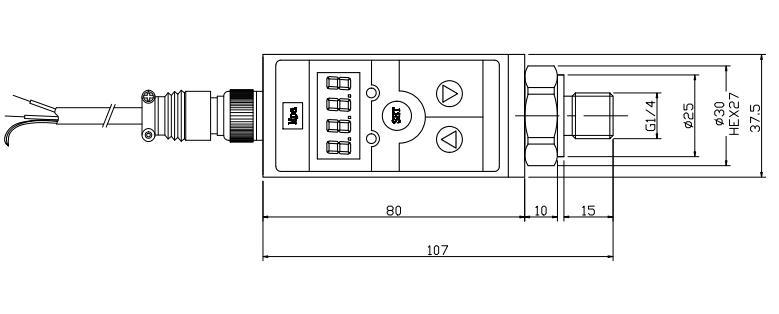

| Dimension |  |
1.Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance.
Customization available.2.Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service3.Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure
sensor transmitters per month, so we are fully capable of meeting
the needs of large-scale orders. However, it is advisable to
contact our sales team in advance to ensure smooth production and
delivery scheduling
.4.Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may
vary.5.Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term
partners
.6.Q: What is the warranty of your products? And after-sales
service?
A: Our warranty time is 24 months after shipment, and our
after-sales will respond with your questions in 24hrs, remote
instruction by PC network is always available.
