BP93420DII High precision oil filled differential pressure
transmitter uses a piezoresistive diffused silicon sensor. It uses
multi-point calibration of the sensor's temperature, linearity,
hysteresis and repeatability through digital compensation
technology.
Digital compensation enhances the performance and reliability of
pressure transmitters by leveraging advanced algorithms and digital
processing techniques. This results in highly accurate, stable, and
customizable pressure measurement solutions for a wide range of
applications.
Product Features:
1. High precision
2. Wide measuring range
3. Strong corrosion resistance
4. Strong anti-interference ability
5. High temperature adaptability
6. Easy maintenance
7. Multiple output signal options
8. High reliability
Applications:
1. Suitable for measuring differential pressure of various gases or
liquids in pipelines of industries such as petroleum, chemical,
power, and hydrology.
2. Applied in industrial on-site processes such as petroleum,
chemica,metallurgy, power generation, and hydrology
3. Pressure measurement for pipelines and furnace chambers
| Performance Parameters |
| Measurement Range | 0-10KPa...~2MPa |
| Pressure Type | Differential Pressure |
| Single-side Overload | ≤3 times of the rated range |
| Static pressure | The minimum value between 5 times the rated range or 7 MPa |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC |
| Operating Temperature | -30ºC~80ºC |
| Storage Temperature | -40ºC~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Intrinsically safe and explosion-proof |
| Protection Rating | IP65 |
| Weight | ~0.45kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA |
3 wire |
| 0/1~5V |
| 0.5~4.5V | 5VDC |
1. When selecting the product, please ensure that the measured
medium is compatible with the product's contacting parts.
2. To ensure reliable operation, it is recommended to install a
three-valve manifold between the measurement point and the
transmitter, ensuring a slow and uniform pressure application to
the positive and negative pressure chambers of the transmitter.
3. During installation, it is advisable to position the pressure
interfaces at both ends horizontally to minimize the impact of the
installation location on the product.
4. For special requirements such as strong vibration, instant
impact force, strong electromagnetic interference, or radio
frequency interference, please inform our company and specify these
requirements in the order| Order Guide |
| BP93420XX | Pressure Transmitter |

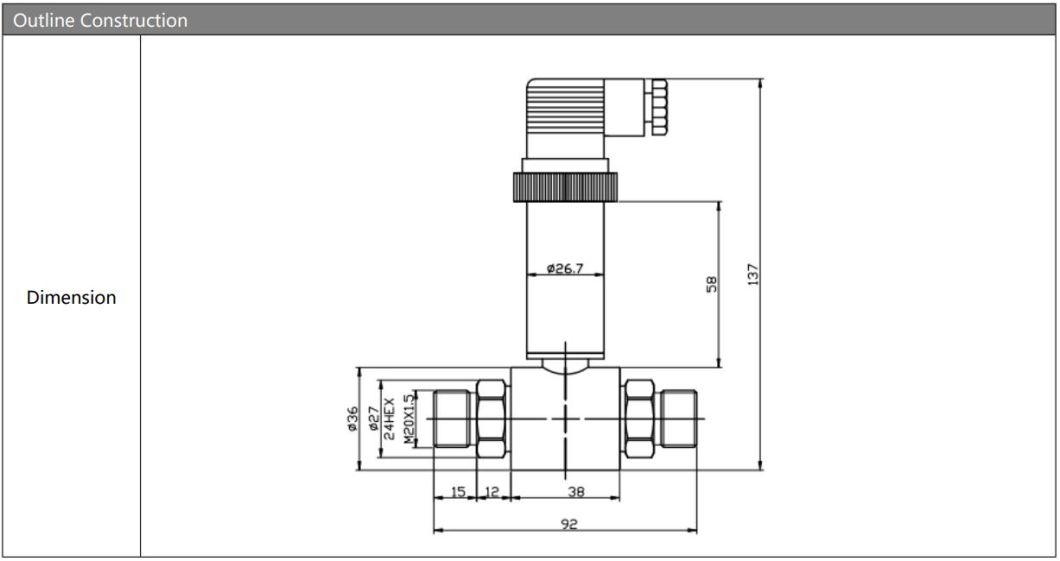

| Code | Outline Construction |
| DII | Differential Pressure Transmitter |
| Measurement Range | 0-10KPa...~2MPa |
| Code | Power Supply |
| D1 | 24VDC |
| D2 | 5VDC |
| D3 | Other |
| Code | Output Signal |
| S1 | 4~20mADC | S5 | 0~20mADC |
| S2 | 1~5VDC | S6 | 0~10VDC |
| S3 | 0~5VDC | S7 | 0.5~4.5VDC |
| S4 | 0~10mADC | | |
| Code | Pressure Connection |
| J1 | M20×1.5 Male |
| J2 | G1/2 Male |
| J3 | G1/4 Male |
| J4 | 1/2 NPT Male |
| J5 | Other |
| Code | Electrical Connection |
| B1 | Hirschmann |
| B2 | PG7 Plug |
| B3 | Sealed Cable Output |
| B4 | Other |
| Code | Pressure Type |
| D | Differential Pressure |
