| Categories | Differential Pressure Transmitter |
|---|---|
| Brand Name: | HT sensor |
| Model Number: | BP93420DIII |
| Certification: | CE,RoHs,ISO9001 |
| Place of Origin: | Baoji，China |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 5000PCS/Month |
| Delivery Time: | 5-8 work days |
| Packaging Details: | Standard Export Package |
| Model NO.: | BP93420D-III |
| Customized: | Customized |
| Pressure Type: | Differential Pressure |
| Transport Package: | Standard Export Packing with Carton |
| Specification: | 10kpa~2Mpa |
| HS Code: | 9026201090 |
| Type: | Differential Pressure Transmitter |
| Measuring Medium: | Gas or Liquid |
| Accuracy Grade: | 0.25%, 0.5%,0.3% |
| Pressure range: | 0-10kpa...~2MPa |
| Samples: | US$ 80/Piece 1 Piece(Min.Order) | Request Sample |
| Company Info. |
| Baoji Hengtong Electronics Co., LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
BP93420DIII Differential Pressure Transmitter
Introduction of differential pressure transmitter:
BP93420DIII liquid pressure differential pressure transmitter uses a piezoresistive diffused silicon sensor. When the measured medium's differential pressure acts on the corrugated diaphragms at both ends of the sensor, the output signal from the Wheatstone bridge on the sensor chip exhibits a good linear relationship with the differential pressure, enabling accurate measurement of the differential pressure. It is suitable for various gas and liquid differential pressure measurements in industries such as petroleum, chemical, power, and hydrology for pipeline applications.
Product Features:
1. The transmitter features a stainless steel structural design,
making it compact and easy to install
2. It undergoes strict temperature compensation and aging
screening, ensuring stable and reliable performances
3. The electrical interface can be selected as a plug-in or direct
wiring option.
Applications:
1. Suitable for measuring differential pressure of various gases or
liquids in pipelines of industries such as petroleum, chemical,
power, and hydrology.
2. Applied in industrial on-site processes such as petroleum,
chemica,metallurgy, power generation, and hydrology
3. Pressure measurement for pipelines and furnace chambers
| Performance Parameters | |
| Measurement Range | 0-10KPa...~2MPa |
| Pressure Type | Differential Pressure |
| Single-side Overload | ≤3 times of the rated range |
| Static pressure | The minimum value between 5 times the rated range or 7 MPa |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC |
| Operating Temperature | -30ºC~80ºC |
| Storage Temperature | -40ºC~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Intrinsically safe and explosion-proof |
| Protection Rating | IP65 |
| Weight | ~0.45kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V | ||
| 0.5~4.5V | 5VDC |

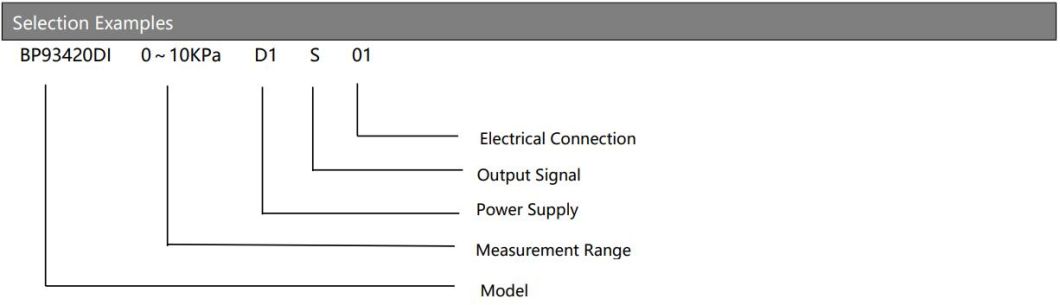

| Order Guide: | ||||||||
| BP93420XX | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| DII | Differential Pressure Transmitter | |||||||
| Measurement Range | 0-10KPa...~2MPa | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | |||||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 Male | |||||||
| J2 | G1/2 Male | |||||||
| J3 | G1/4 Male | |||||||
| J4 | 1/2 NPT Male | |||||||
| J5 | Other | |||||||
| Code | Electrical Connection | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Sealed Cable Output | |||||||
| B4 | Other | |||||||
| Code | Pressure Type | |||||||
| D | Differential Pressure | |||||||
