Refrigerant Air Dryer Machine ASME certification Air Dryer
We can customize ASME certification refrugerated air dryer machine for you
Air contains contaminants like solid (dust particles), liquid
(moisture) and oil which contaminates the compressed air. When this
contaminated compressed air is used for various applications, it
may cause failures of pneumatic valves, instruments, etc which
results in the downtime of whole system.
So use our refrigerated air dryer to remove the moisture after the
air equipment!
1. Refrigeration compressor adopt High-temperature type enclosed refrigeration compressors,so that have steady running ,low noise ,reliable performance and energy saving.
2. Heat exchange and condenser used high quality and efficient screwed conduit, it has a high heat transfer coefficient that small in size and Compact structure
3. Refrigeration control elements adopt units of ALCO, which is advanced in the world,with a high performance
4. Liquid-vapor separator can make gas-liquid separation effect completely and avoid water the second evaporation , so that confirm the drying effect of the dryer.
5. Reasonable structural design make it easy to maintaining as well as elegant appearance.
6. Without foundation installation, easy to operation.
7. Has a high cost-effective.
Parameters of Air-Cooled Refrigerated Compressed Air Dryer
| Model | Air Displacement | Voltage | Refrigerator Power | Fan Power | Net weight | Dimension |
| (Nm3/min) | (V) | (hp) | (W) | (KG) | (mm) | |
| KSAD-2HF | 2.5 | 220 | 0.75 | 2*55 | 140 | 845*570*780 |
| KSAD-3HF | 3.6 | 1 | 2*150 | 160 | 1020*600*790 | |
| KSAD-4.5HF | 5 | 1.5 | 4*90 | 180 | 1000*500*990 | |
| KSAD-6HF | 6.8 | 2 | 4*150 | 210 | 1100*500*1000 | |
| KSAD-8HF | 8.5 | 2.5 | 4*190 | 250 | 1200*640*1250 | |
| KSAD-12HF | 12.8 | 380 | 3 | 4*190 | 270 | 1330*650*1250 |
| KSAD-15HF | 16 | 3.5 | 4*190 | 360 | 1635*880*1540 | |
| KSAD-20HF | 22 | 4.2 | 4*190 | 460 | 1640*890*1610 | |
| KSAD-25HF | 26.8 | 5.3 | 4*250 | 600 | 1860*990*1668 | |
| KSAD-30HF | 32 | 6.7 | 4*250 | 720 | 1810*1310*1728 | |
| KSAD-40HF | 43.5 | 8.3 | 6*250 | 870 | 2360*1410*2100 | |
| KSAD-50HF | 53 | 10 | 6*250 | 970 | 2360*1460*2000 | |
| KSAD-60HF | 67 | 13.3 | 7*460 | 1200 | 2460*1560*2160 | |
| KSAD-80HF | 90 | 20 | 8*550 | 1460 | 2540*1640*22 |

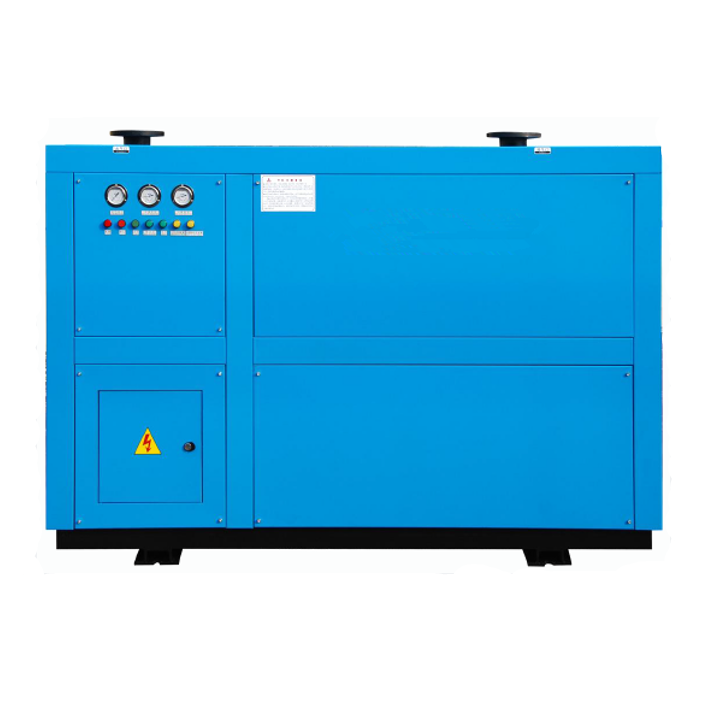

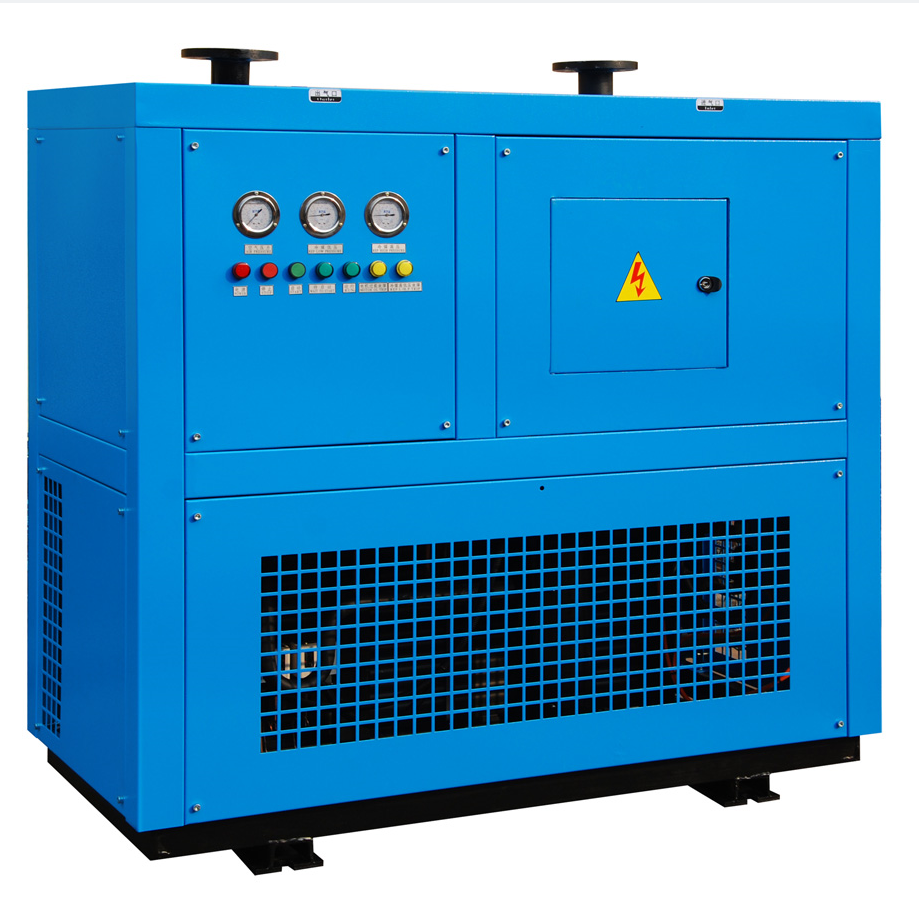

Pictures of our products:
|
