Refrigerated Compressed Air Dryer System ASME Certification Custom

Refrigerated ASME Certification Air Dryer Machine Custom Air Dryer

Function of Refrigerated Air Dryer

• The key function of the refrigerant compressed air dryer is to
remove the moisture of the compressed air.

• Through a refrigerant heat exchanger (evaporator), the
temperature of the compressed air drops to 2°C, the dew-point
temperature and moisture or water drops in the compressed air
condenses.

• Then through a seperator, the air and drips seperator. The drips
are drained from the system by an automatic drainage. The whole
process of drying finishes.

• Commonly, the moisture content of the drying compressed air is
about 0.59 g/m³, and the moisture removal rate can be up to 93%.The
users can select the suitable model or add filters according to the
necessity.

Parameters of Air-Cooled Refrigerated Compressed Air Dryer

Model	Air Displacement	Voltage	Refrigerator Power	Fan Power	Net weight	Dimension
	(Nm3/min)	(V)	(hp)	(W)	(KG)	(mm)
KSAD-2HF	2.5	220	0.75	2*55	140	845570780
KSAD-3HF	3.6		1	2*150	160	1020600790
KSAD-4.5HF	5		1.5	4*90	180	1000500990
KSAD-6HF	6.8		2	4*150	210	11005001000
KSAD-8HF	8.5		2.5	4*190	250	12006401250
KSAD-12HF	12.8	380	3	4*190	270	13306501250
KSAD-15HF	16		3.5	4*190	360	16358801540
KSAD-20HF	22		4.2	4*190	460	16408901610
KSAD-25HF	26.8		5.3	4*250	600	18609901668
KSAD-30HF	32		6.7	4*250	720	181013101728
KSAD-40HF	43.5		8.3	6*250	870	236014102100
KSAD-50HF	53		10	6*250	970	236014602000
KSAD-60HF	67		13.3	7*460	1200	246015602160
KSAD-80HF	90		20	8*550	1460	2540164022

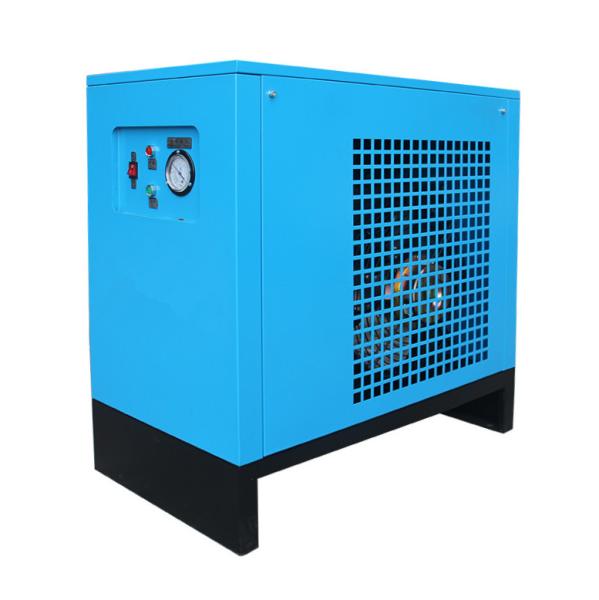

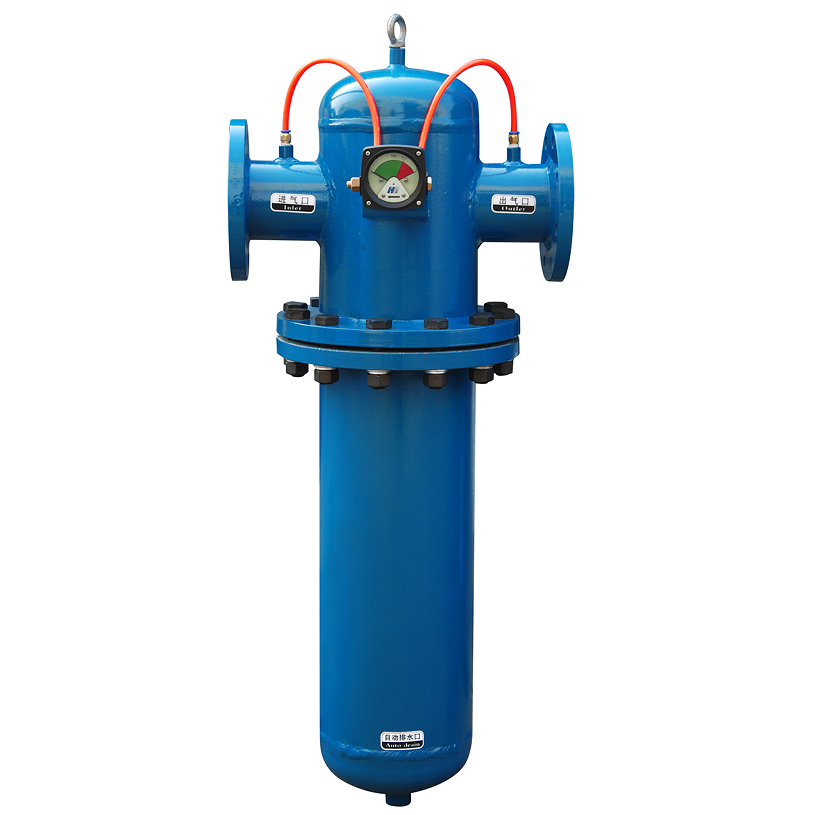

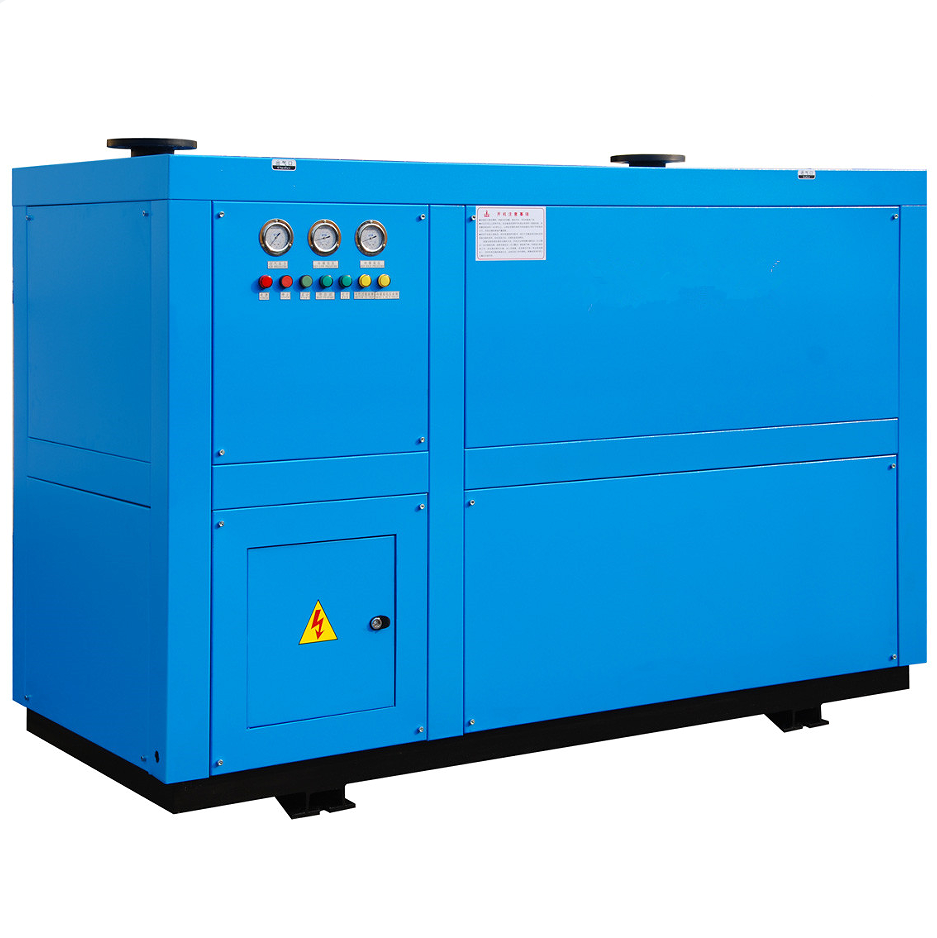

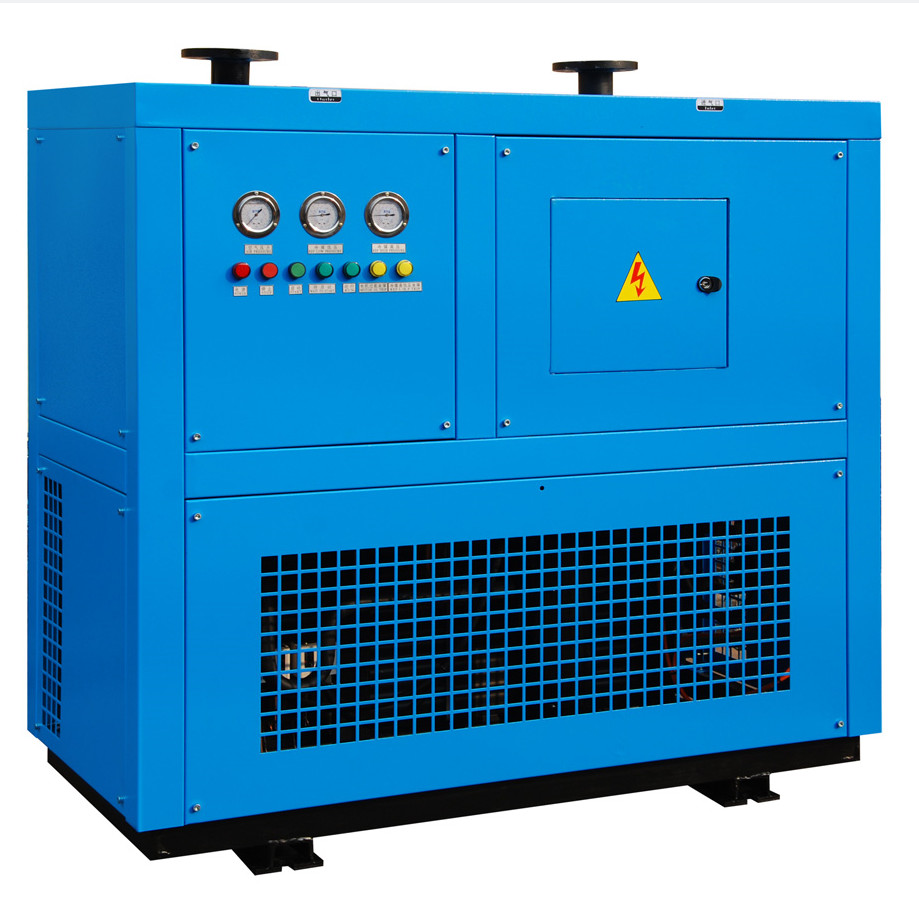

Pictures of our products:
