Dustproof Hybrid Solar Inverter / On Grid Off Grid Hybrid Inverter Independent CPU

Categories Hybrid Solar Inverter
Brand Name: SOROTEC
Model Number: REVO II
Certification: CE
Place of Origin: China
MOQ: 10PCS
Payment Terms: L/C, T/T
Supply Ability: 1000PCS/Month for REVO Series Solar Inverter
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Packaging Details: Standard Exported Cartons and Pallets.
Humidity: 0~90% RH (No Condensing)
Operating Temperature: 0 to 50 °C
Frequency Range: 50Hz/60Hz
Nominal Output Voltage: 220/230/240VAC
Maximum AC Input Current: 60A
Parallel Function: Yes
Maximum Solar Charge Current: 90A
Max PV Array Power: 5000W
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Dustproof Hybrid Solar Inverter / On Grid Off Grid Hybrid Inverter Independent CPU

On/Off Grid with Energy Storage 50Hz/60Hz Hybrid Solar Power Inverter with Dust Proof

Key Features:


1.Touch screen display
2.PV and utility power take the load at same time(can setting)
3.Output power factor PF=1.0
4.On&Off Grid with energy storage
5.Energy generated record,load record,history information and fault record
6.Language and time setting
7.Structure with dust filter
8.AC charging and AC output time setting
9.Charging voltage and charging current timing
10.External Wi-Fi device optional
11.Parallel operation up to 12 units
12.Connected with battery optional
13.Wide PV input range 120-450VDC
14.Independent CPU
15.MAX PV Array power 5000W
16.Solar and Utility supply power to the load when solar power is not sufficient to load

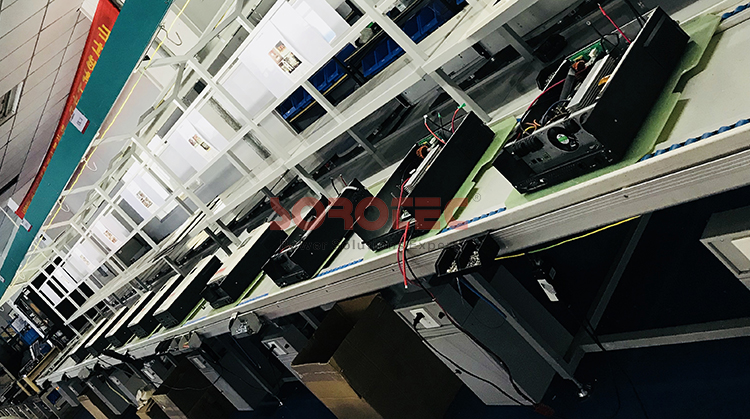

Product Show:




Wall Mounted Integrated Solar Power Inverter Technical Specification
Built-in MPPT Solar Controller

MODELREVO II 3K-24REVO II 3.2K-48REVO II 5.5K-48
Max PV Array Power5000W
Rated Output Power3000W3200W5500W
Maximum PV Array Open Circuit Voltage500VDC
MPPT Range @ Operating Voltage120-450VDC
GRID-TIE OPERATION
GRID OUTPUT (AC)
Nominal Output Voltage220/230/240VAC
Output Voltage Range184-265VAC
Nominal Output Current15A
EfficiencyUp to 93.5%
OFF-GRID, HYBRID OPERATION
GRID INPUT
Acceptable Input Voltage Range90-280VAC or 170-280 VAC
Frequency Range50Hz/60Hz (Auto sensing)
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage220/230/240VAC
Output Wave FormPure sine wave
BATTERY & CHARGER
Nominal DC Voltage24VDC48VDC
Maximum Solar Charge Current90A
Maximum AC Charge Current60A
Maximum Charge Current90A
Emergency output power
Maximum output power3000W3200W5500W
Automatic Transfer Time<8ms
GENERAL
INTERFACE
Parallel FunctionYes
CommunicationUSB or RS232/Dry-Contact
ENVIRONMENT
Humidity0~90% RH (No Condensing)
Operating Temperature0 to 50 °C
