3-5.5kw Off Grid Energy Storage Inverter REVO VM II Series

Categories Hybrid Solar Inverter
Brand Name: SOROTEC
Model Number: REVO VM II
Certification: CE,ROHS,RSO9000
Place of Origin: Shenzhen,China
MOQ: 2PCS
Price: Negotiable
Supply Ability: 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Packaging Details: Standard Exported Cartons and Pallets
Rated Power: 3-5.5kw
Frequency Range: 50 Hz/60 Hz (Auto sensing)
Maximum PV Array Power: 5500 W
MPPT Range @ Operating Voltage: 120~450 VDC
Maximum Charge Current: 100 A
Communication Interface: USB/RS232
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

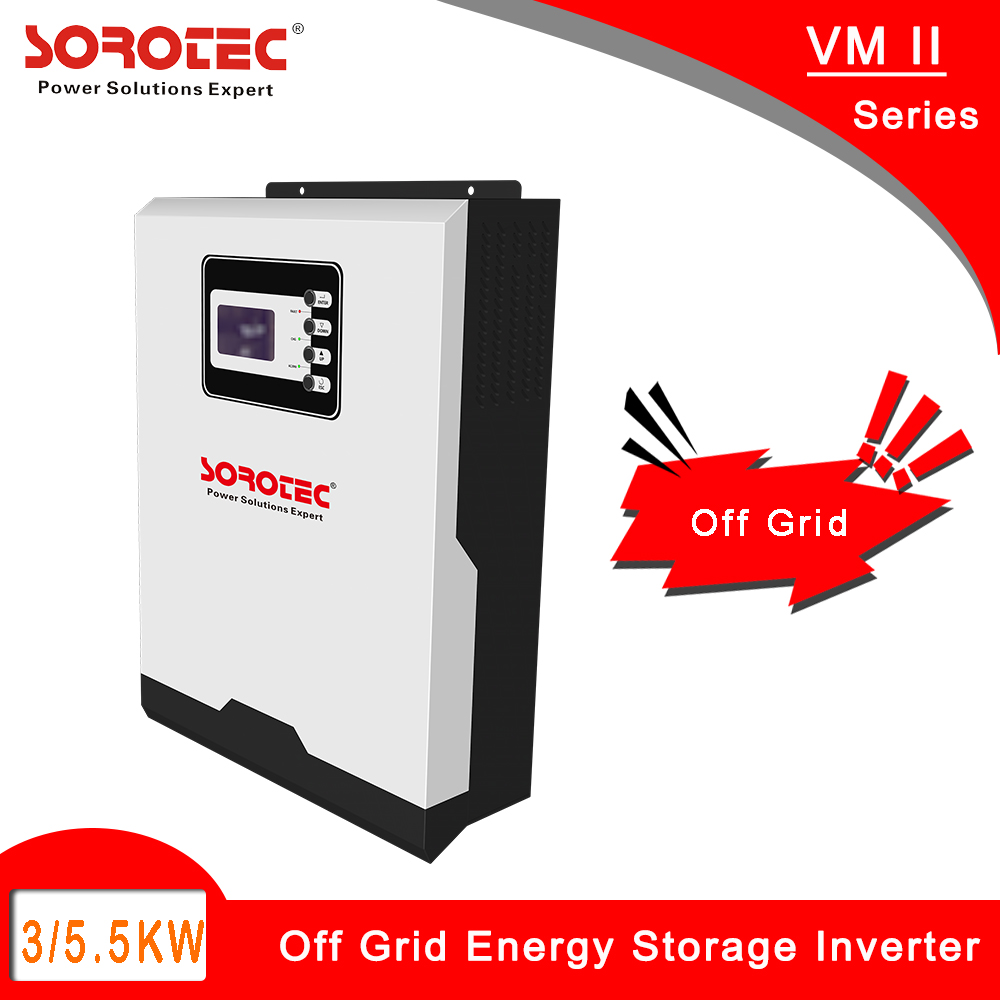

3-5.5kw Off Grid Energy Storage Inverter REVO VM II Series

3-5.5kw Off Grid Energy Storage Inverter REVO VM II Series

REVO VM II Pure sine wave solar inverter Output power factor 1
Parallel operation up to 9 units High PV input voltage range Battery independent design


Key Features:
Pure sine wave solar inverter
Output power factor 1
Parallel operation up to 9 units
High PV input voltage range
Battery independent design
Built-in 100A MPPT solar charger
Battery equalization function to optimize battery performance and extend lifecycle
Built-in anti-dusk kit for harsh environment

Anti-Dust Kit:
After installing this anti-dust kit, inverter will automatically detect this kit and activate internal thermal sensor to adjust internal
temperature. By virtue of the dustproof design, it dramatically increases product reliability in harsh environment.


REVO VM II Series
Wall Mounted Integrated Solar Inverter Technical Specification Built-in MPPT Solar Controller

MODELREVO VM II 3000-24REVO VM II 5500-48
Rated Power3000VA / 3000W5500VA / 5500W
INPUT
Voltage230 VAC
Selectable Voltage Range170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range50 Hz/60 Hz (Auto sensing)
OUTPUT
ACVoltage Regulation(Batt. Mode)230VAC ± 5%
Surge Power6000VA11000VA
Efficiency (Peak)90% ~ 93%
Transfer Time10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
WaveformPure sine wave
BATTERY
Battery Voltage24 VDC48 VDC
Floating Charge Voltage27 VDC54 VDC
Overcharge Protection33 VDC63 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage500 VDC500 VDC
Maximum PV Array Power5500 W5500 W
MPP Range @ Operating Voltage120~450 VDC120~450 VDC
Maximum Solar Charge Current100 A100 A
Maximum AC Charge Current80 A80 A
Maximum Charge Current100 A100 A
PHYSICAL
Dimension, D x W x H (mm)100 x 300 x 440
Net Weight (kgs)910
Communication InterfaceUSB/RS232
ENVIRONMENT
Humidity5% to 95% Relative Humidity (Non-condensing)
Operating Temperature-10°C to 50°C
Storage Temperature-15°C to 60°C
