Hybrid off grid inverter 2KVA 2KW 24V with 80A MPPT Controller

Categories Hybrid Solar Inverter
Brand Name: SOROTEC
Model Number: SSP3119C 1000-5000VA
Certification: CE,ROHS,RSO9000
Place of Origin: China
MOQ: 2PCS
Price: 200-1000
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000PCS Per Month
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Packaging Details: Standard Exported Cartons and Pallets
Model: On / Off Grid Hybrid Solar Inverter System
Power: 2KVA/2000W
Power Factor: 0.9
Battery Voltage: 24VDC
Input Voltage: 90-280VAC / 170-280VAC
Output Voltage: 220/230/240VAC
Frequency: 50/60HZ (Auto-sensing)
Application: Personal Computer
Controller: 80A MPPT
Color: White or green
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Hybrid off grid inverter 2KVA 2KW 24V with 80A MPPT Controller

Hybrid off grid inverter 2KVA 2KW 24V with 80A MPPT Controller


ProductOn-Off Hybrid Solar Inverter with Energy Storage
ModelSSP3119C
ColorWhite
Output Power2Kva/2000w
Power Factor0.9
Parallel WorkingNot Have
Controller80Amp mppt Solar Charge Controller

Key Features:

1.Pure sine wave output
2.Self-consumption and Feed-in to the grid
3.Programmable supply priority for PV, Battery or Grid
4.User-adjustable charging current and voltage
5.Monitoring software for real-time status display and control
6.Parallel operation up to 6 units only for 3K/4K/5K models
7.Programmable multiple operation modes: Grid-tie,off-grid and grid-tie with backup


Safety Protection:
Protection for low battery voltage,over load,output short circuit and over- temperature Restrain surge interference,eliminate noise,protection for thunder striking,provide the reliable power to the home appliances.


Energy-Saving and Green for Environment:

Provide long time backup ac power supply for the household appliances ,office appliances and solar power system.etc


SSP3119C On and Off Grid Hybrid Solar Power Inverter technical specifications:


MODEL3K-484K-485K-48
Max.PV Array Power4000W4000W6000W
Rated Output Power3000W4000W5000W
Maximum PV Array Open Circuit Voltage145VDC145VDC145VDC
MPPT Range @ Operating Voltage60~115VDC60~115VDC60~115VDC
MPPT Tracker Number112
GRID-TIE OPERATION
GRID OUTPUT(AC)
Nominal Output Voltage220/230/240VAC
Output Voltage Range184-264.5VAC
Nominal Output Current13A17A21.7A
Power Factor>0.99
Efficiency
Maximum Conversion Efficiency (DC/AC)90%
GRID INPUT
Accepatable Input Voltage Range90-280VAC or 170-280VAC
Frequency Range50HZ/60HZ(Auto sensing)
Maximum AC Input Current40A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage220/230/240VAC
Output WaveformPure Sine Wave
Efficiency(DC to AC)93%
BATTERY&CHARGER
Nominal DC Voltage48VDC48VDC48VDC
Maximum Solar Charge Current80A80A120A
Maximum AC Charge Current60A
Maximum Charge Current140A140A180A
INTERFACE
Parallel FunctionYesYesYes
CommunicationUSB or RS232/Dry-Contact
ENVIRONMENT
Humidity0~90%RH (No condensing)
Operating Temperature0 to 50℃

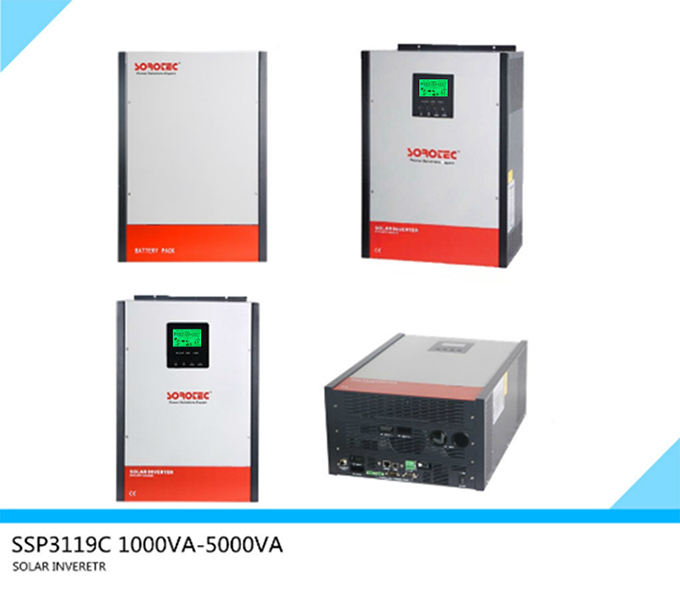

Product Picture Show:
