Mini 2D Bluetooth Barcode Scanner,Portable QR 1D Bar Code Reader , Mini Wireless Barcode Scanner For Inventory
Product Description:
The size of this portable barcode scanner is completely mini with light weight, it can perfect fit in your pocket. The mini size is better suited for field mobility workers .
This QR barcode scanner can easily scan most of 1D, 2D barcode, like PDF417, Data Matrix, code 128, ISBN code, etc. With a stonge decoding ability, this 2D barcode scanner can read damaged ,poor printed barcodes as well as mobile screens .
Product Specification:
| Light Sources | 617nm LED Aimer, White LED | |||||||
| Supported Symbologies | 1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN128, Codabar,Interleave 2 of 5, Industrial 2 of 5, ITF-6, ITF-4, ISBN, ISSN, MSI-Plessey,GS1 Databar, GS1 Composite Code, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5. 2D: QR Code, Data Matrix, PDF417, MicorPDF417, Aztec, Maxicode, Hanxin Code, Direct Chinese QR code. | |||||||
| Resolution | 640*480 | |||||||
| Scan Mode | Manual/Continuous/Automatic Induction Scanning | |||||||
| Scan angle | Yaw±55°, Rotation 360°, Pitch±55° | |||||||
| Precision | ≥5mil | |||||||
| Contrast | ≥20% | |||||||
| Depth of scan field | EAN13 25-150mm(13mil 90%PCS); QR 10-120mm(15mil 30 byte); PDF147 30-110mm(6.67mil 30 byte) | |||||||
| Error Rate | Less than 1/5million | |||||||
| Interface | USB-HID | |||||||
| Wireless Communication | Pairing Mobile Bluetooth Devices: Bluetooth BLE 4.0 | |||||||
| Wireless transmission distance | 20meters (open distance) | |||||||

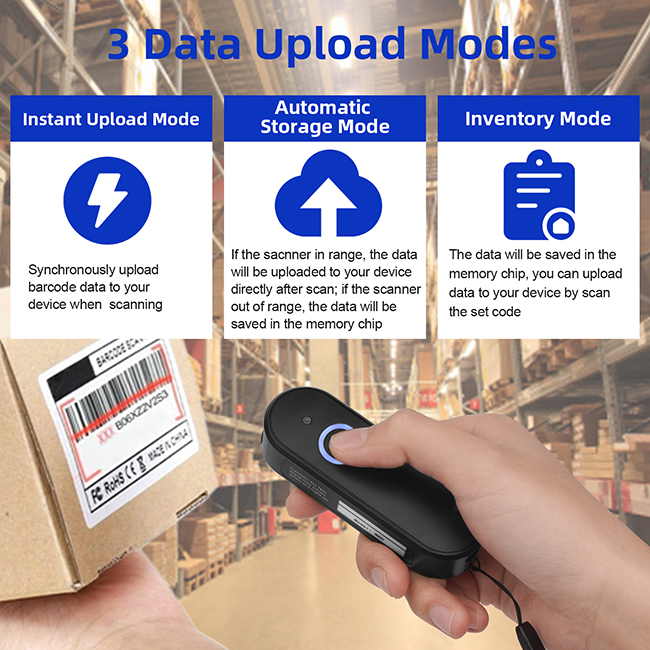

| Storage Mode | Offline Storage Mode: When the scanner exits the connection range, the data is automatically stored. Storage capacity is 512000 characters. Inventory storage mode: Scanner can enter inventory mode, storage capacity is 512000 characters. | |||||||
| Pairing Mode | One to One: One scanner paired with a Bluetooth mobile device | |||||||
| Electrical Parameters | ||||||||
| Voltage | DC5V±5% | |||||||
| Maximum Operating Current(MAX) | 200mA | |||||||
| Standby Current | 0mA (Standby is to cut off battery power) | |||||||
| Lithium battery | 800mA | |||||||
| Battery Working Time | 4h | |||||||
| Charging Time | 2.5h | |||||||
| Charging Model | Square USB charging cable, plug straight charge | |||||||
| Physical Parameters | ||||||||

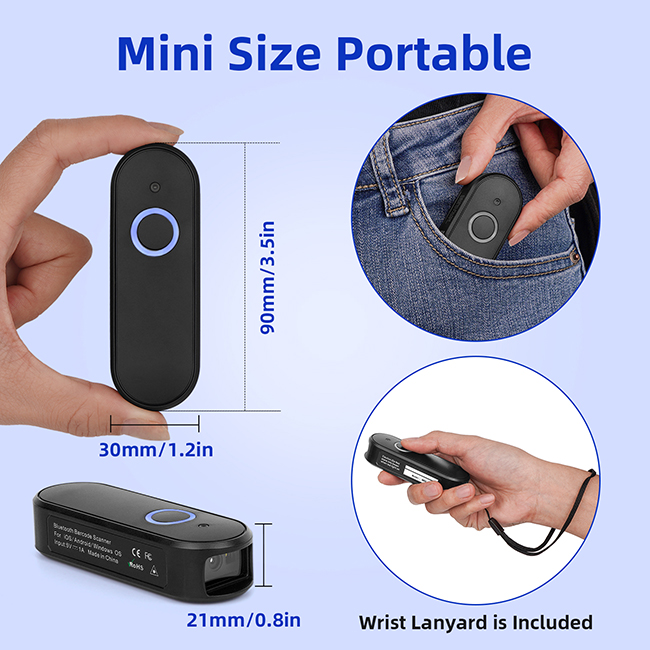

| Dimensions | 90mm*30mm*21mm | |||||||
| Material | ABS+PC | |||||||
| Cable | 0.8M | |||||||
| Environmental Parameters | ||||||||
| Operating Temperature | -20℃~+50℃ | |||||||
| Storage Temperature | -40℃~+70℃ | |||||||
| Relative Humidity | 5%~95% RH(Non-condensing) | |||||||
| Ambient lighting | 0~100000LUX | |||||||
| Drop/Shock Resistance | Withstands multiple times 1.2 meters drops to concrete | |||||||
Product Features:
• Mini size with super power decoding ability
• 3 types connection modes allow different application
• Battery support around 5 hours continuous working
• Portable carry and perfect fit in pocket
• Read both 1D and 2D barcodes from paper ,labels as well as mobile screen
Product Pictures:
Product Advantage :
• Widely use in different application like warehouse,retail stores
• Compatible with multiple OS like windows ,Android,IOS etc
• Long wireless transmission distance

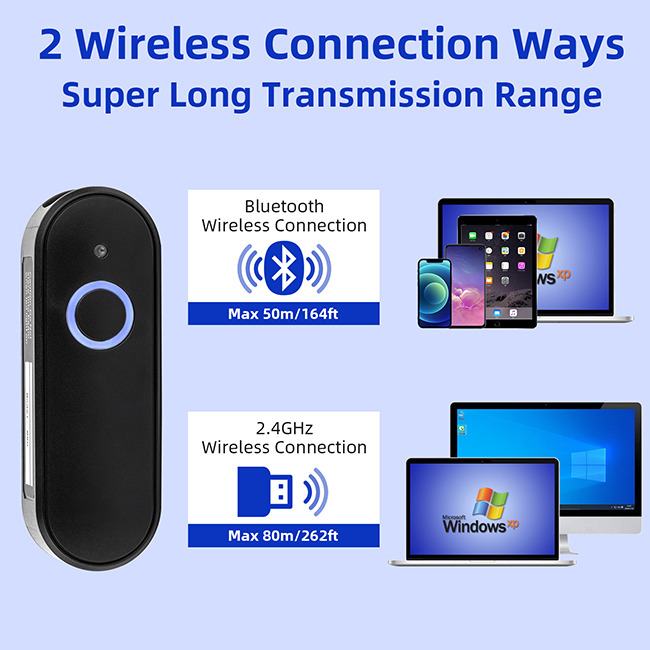

• Supports 2.4G wireless,Bluetooth connection and USB wired connection
FAQ:
1, Does this 2d bluetooth mini barcode scanner use usb type C?
Yes, it uses a USB type C for charging and connecting to a PC or notebook
2, How many barcodes can I store into this wireless bluetooth mini barcode reader ?
It can store max 35000 barcodes (EAN13)
3, Can I use this portable bluetooth barcode scanner as a wired scanner when the battery run out ?
Yes ,it can use as wired mode
4, What is your company warranty policy on this bluetooth portable barcode scanner ?
We support 2 years warranty on this bluetooth barcode scanner ,extended warranty is available
|
