CMOS Cordless Bluetooth Barcode Scanner

Categories Bluetooth Barcode Scanner
Brand Name: Luckydoor
Model Number: K-528BT
Certification: CE FCC Rohs
Place of Origin: Made in China
MOQ: 1pc
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 50K-60Kpcs / month
Delivery Time: 1-3 working days
Packaging Details: Single standard packing box and carton
Cradle: available
Private mold: yes
Warranty: 12 months
Scan type: CMOS
Wireless: 2.4G+Bluetooth
Decoding: 1D 2D
Memory: 4M
Battery: Around 20000 scan per charge
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

CMOS Cordless Bluetooth Barcode Scanner


Cordless Bluetooth Barcode Scanner with Charging Cradle,2D QR 1D Wireless Bluetooth Barcode Scanner For Retail


Product Description:


This K-528BT is a handheld 2d wireless barcode scanner with S-shape design ,allow this item can be used from production line to your point of sale ,the advanced CMOS technology and powerful decoding chip help deliver unprecedented scanning performance on 1D and 2D barcodes from paper ,labels as well as from mobile ,tablets LED display,it is best 2d bluetooth barcode scanner for warehouse ,retail ,logistic etc


Product Features:


Charging cradle can charge the scanner when put it into cradle

Mobile screen scanning supported

3 Scan Mode:Manual trigger mode / Auto-induction mode / Continuous mode

Can be used as wired barcode scanner

Amazing 30,000 scans per charge


Product Specification:


Performance Parameters
Light Sources617nm LED Aimer, White LED

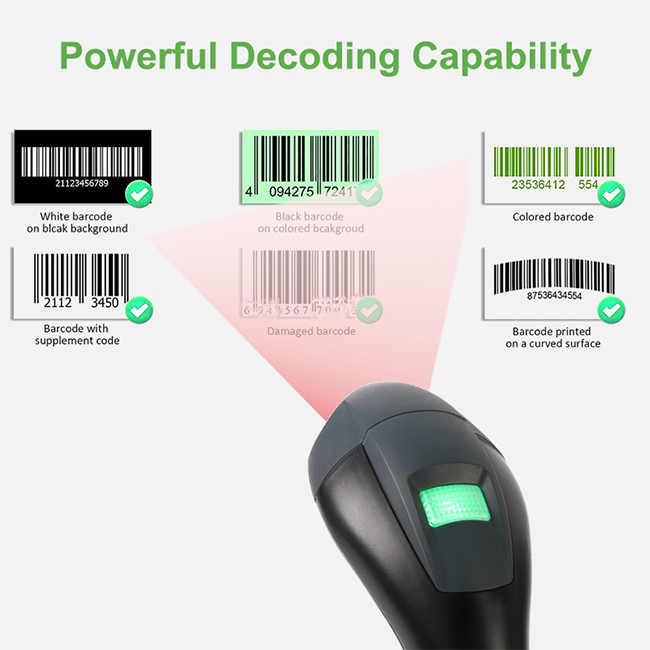

Supported symbologies

1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar,

Interleave 2 of 5, ITF-6, ITF-14, ISBN, ISSN, MSI-Plessey, GS1 Databar,

GS1 Composite Code, Industrial 25, Standard 25, Plessey, Matrix 2 of 5.

2D: QR Code, Data Matrix, PDF417, Micor PDF417, Aztec, Maxicode,

Micor QR, Hanxin.

Scan TypeImage CMOS
Scan ModeManual/Continuous/Automatic Scintillation
Scan AngleYaw65°, Rotaion 360°, Pitch60°
Precision≥5mil
Contrast≥20%
Depth of scan field

EAN13 50-200mm(13mil);

QR 25-240mm(20mil);

PDF417 30-130mm(6.67mil)

Error RateLess than 1/5million
InterfaceUSB-HID, USB-COM
Communication mode

Paired dedicated receiver: 2.4g communication;

Paired mobile bluetooth devices: bluetooth BLE4.0

Transmission Distance30-50M (Open yard)

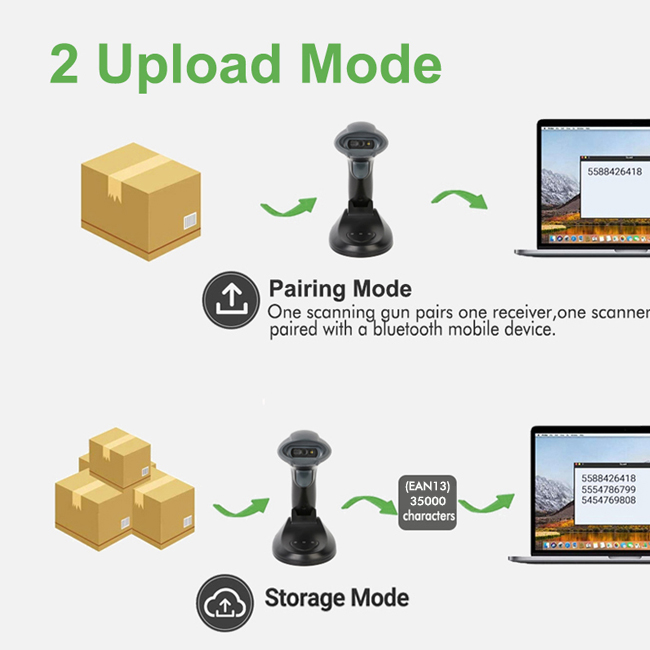

Storage Mode

Offline Storage Mode: When the scanner exits the connection range,

the data is automatically stored. Storage capacity is 512000 characters.

Inventory storage mode: Scanner can enter inventory mode,

storage capacity is 512000 characters.

Pairing Model

One to One: One Scanning Gun Pairs One Receiver,

One scanner paired with a Bluetooth mobile device.

Physical Parameters
Dimensions86.5mm*137mm*168mm
Weight233.9g
MaterialABS+PC
Cable Length1.2m
Environmental Parameters
Operating Temperature-20℃ - 50℃
Storage Temperature-40℃-70℃
Humidity0% to 95% RH (Non-condensing)
Shock ResistanceWithstands multiple times 3 meters drops to concrete
Electrical Parameters
VoltageDC5V ±5%
Operating Current280mA
Standby Current0mA(Standby is to cut off battery power)
Charging ModelContact the charging
Battery Working Times6h
Charging Time3.5h
Lithium battery2200mA

Product Pictures:


Product Application:


Checkout scanning

Mobile Payments, Coupons and Loyalty

Warehouse inventory management

Age Verification

Point of Sale

Checkpoint EAS

Transport and logistic


FAQ:


1, Is it possible to add the date and time as a prefix?

Yes. You can do that with your POS, or inventory software


2, what is the warranty time of this wireless bluetooth barcode scanner?

Standard warranty time 12 months ,extended service is available


3, how many barcode can it save when use as inventory mode of this 2d wireless scanner with cradle?

It can save max 35000 barocdes (EAN13)
