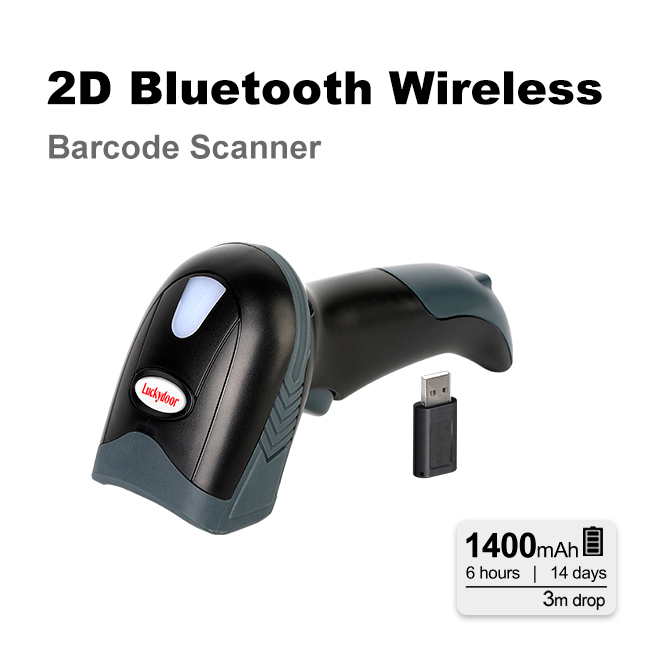

Handheld Bluetooth 2D Imager Barcode Scanner ,3 In 1 Bluetooth Barcode Reader Scanner Compatible with 2.4G Wireless & Bluetooth Function & Wired Connection
Product Description:
This 2D bluetooth barcode scanner enables diverse Auto-Identification applications for collecting and storing barcode data.
A rechargeable battery that is easily charge from any USB port and allows more than 18,000 barcode scans per charge. With 4MB of onboard memory that stores up to 350,000 EAN13 barcodes ,it is an idea wireless 2D barcode scanner for warehouse inventory
Product Features:
• The scanner is compatible with different kinds of devices :Android & IOS mobile devices
• Latest CMOS technology allow screen barcode supported
• Three working modes : 2.4Ghz wireless +Bluetooth connection+Wired connection
• Decode most 1D & 2D barcodes from paper and digital display
• Offline function allow to data capture everywhere
Product Specification:

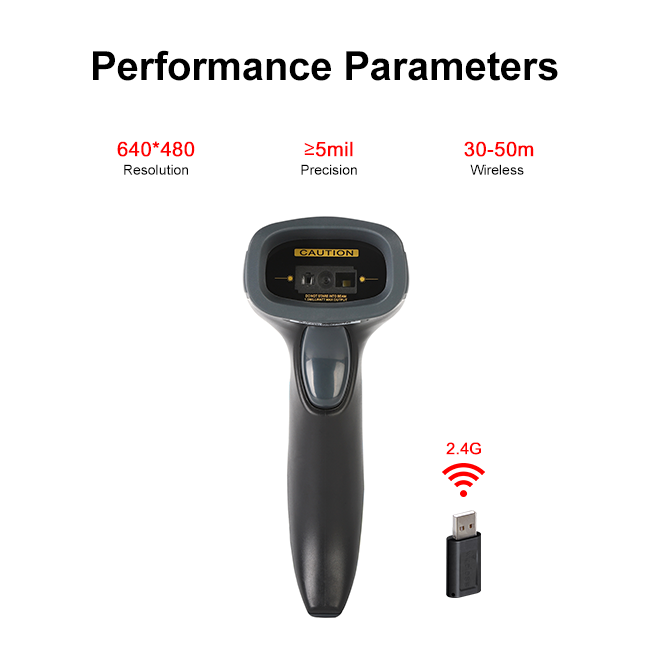

| Performance Parameters | |||||||
| Light Sources | 617nm LED Aimer,White LED | ||||||
| Supported Symbologies | 1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar, Interleave 2 of 5, ITF-6, ITF-4, ISBN, ISSN, MSI-Plessey, GS1 Databar, GS1 Composite Code, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5. 2D: QR Code, Data Matrix, PDF417, Aztec, Maxicode, Micor QR, Micor PDF417, Hanxin Code. | ||||||
| Resolution | 640*480 | ||||||
| Scan Method | Manual/Contnuous/Automatic inductive scanning | ||||||
| Scan Angle | Yaw 55°,Rotation 360°,Pitch 55° | ||||||
| Precision | ≥5mil | ||||||
| Contrast | 20% | ||||||
| Depth of scan field | EAN13 50-200mm(13mil); QR 25-240mm(20mil); PDF417 30-130mm(6.67mil) | ||||||
| Error Rate | Less than 1/5million | ||||||
| Interface | USB-HID | ||||||
| Wireless Communication | Pairing dedicated receiver: 2.4G communication Pairing Mobile Bluetooth Devices: Bluetooth BLE 4.0 | ||||||
| Transmission Distance | 30-50M (Open yard) | ||||||
| Storage Mode | Offline Storage Mode: When the scanner exits the connection range, the data is automatically stored. Storage capacity is 512000 characters. Inventory storage mode: Scanner can enter inventory mode, storage capacity is 512000 characters. | ||||||
| Pairing Mode | One to One: One Scanning Gun Pairs One Receiver, One scanner paired with a Bluetooth mobile device. | ||||||
| Physical Parameters | |||||||
| Dimensions | 79.7mm*69mm*155mm | ||||||
| Weight | 223.9g | ||||||
| Material | ABS+PC | ||||||
| Cable Length | 1.2M | ||||||
| Environmental Parameters | |||||||
| Operating Temperature | -20℃ ~50℃ | ||||||
| Storage Temperature | -40℃~70℃ | ||||||
| Relative Humidity | 5%~95% RH(Non-condensing) | ||||||
| Ambient lighting | 0~100000LUX | ||||||
| Drop/Shock Resistance | Withstands multiple times 3 meters drops to concrete | ||||||
| lectrical Parameters | |||||||
| Voltage | DC5V±5% | ||||||
| Operating Current | when not scanning code ≥26mA; when scanning code ≥280mA | ||||||
| Standby Current | 0mA(Standby is to cut off battery power) | ||||||
| Charging Mode | Contact the charging | ||||||
| Battery Working Time | 6h | ||||||
| Charging Time | 3.5h | ||||||
| Lithium battery | 1400mA | ||||||
| Charging Model | Square USB charging cable, plug straight charge | ||||||
Product Pictures:
Product Applications:
Warehouse inventory
Logistic and transportation
Point of sales
Health care
Public event ID check
FAQ :
1, How long does it to take to ship my order?
After your order payment confirmation, we will send the parcel usually in 1-3 business days.
2, What's your shipping carrier?
We use world-famous Fedex or DHL for shipping your products, which can secure the fast speed as well as safety
3, How to track my order?
Once your parcel is shipped, we will send you an Email with tracking info and link, you can check it yourself afterwards. If you do not receive this Email, please contact our customer service.
|
