Category 6A UTP RJ45 Keystone Jack Rj45 8p8c Modular Connector for Alarm systems

Categories RJ45 Keystone Jack
Brand Name: SL
Model Number: SL-JACK-2008C6A
Certification: CE ROHS
Place of Origin: GUANGDONG CHINA
MOQ: 1000PCS
Price: Negotiable
Payment Terms: T/T, Western Union, MoneyGram, D/A
Supply Ability: 100K PCS per WEEK
Delivery Time: 3-5 Days after payment
Packaging Details: 1000PCS/CARTON,
Product name: UTP CAT6A Tooless Keystone Jack
Model: 2008C6A
Shielded: UTP 180 degree Type
Carton: 61*41*22CM
Qty of Carton: 1000PCS/carton
Weight: 12KGS/Carton
Application: Network Cabling Systems
Category: Cat6A tooless
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Category 6A UTP RJ45 Keystone Jack Rj45 8p8c Modular Connector for Alarm systems

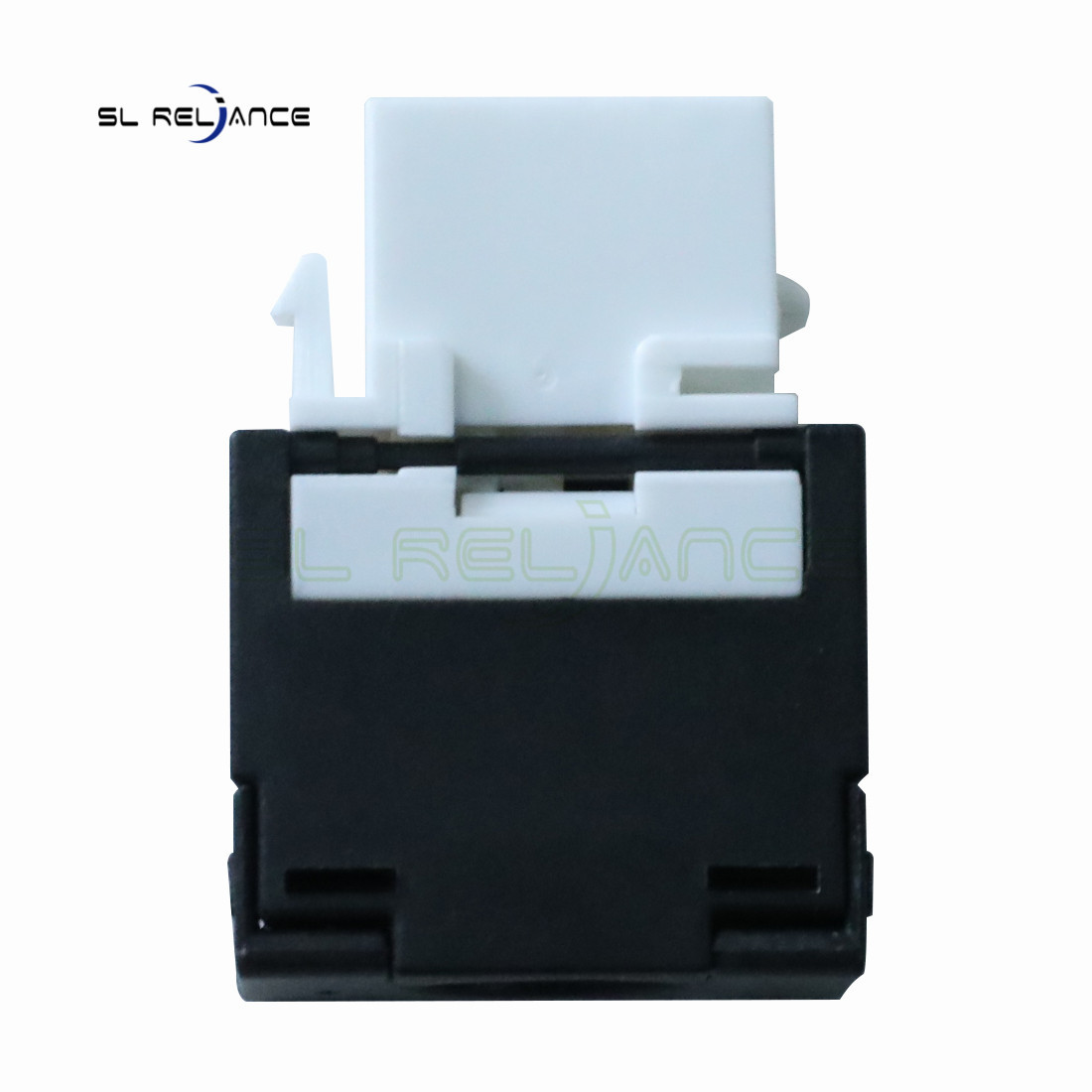

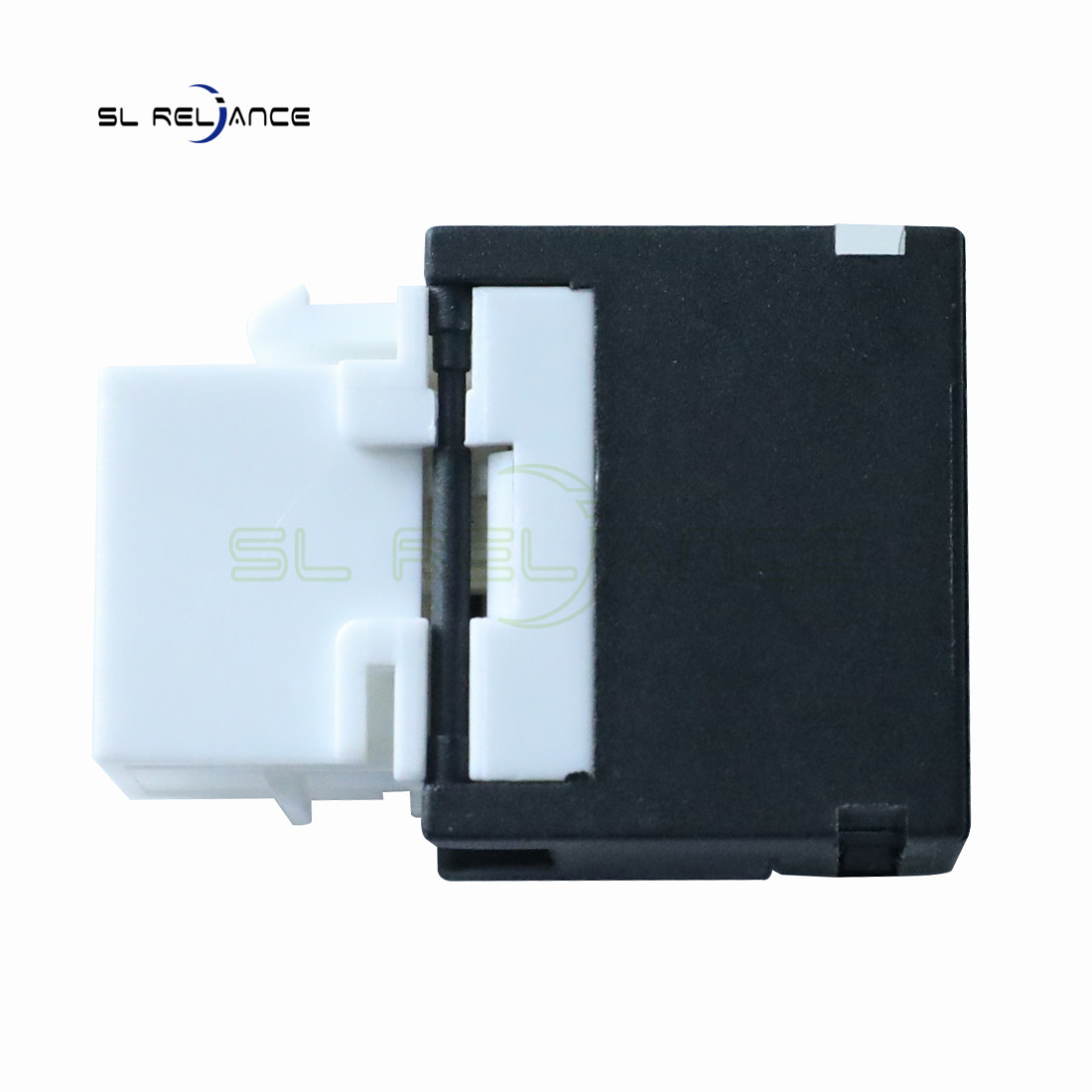

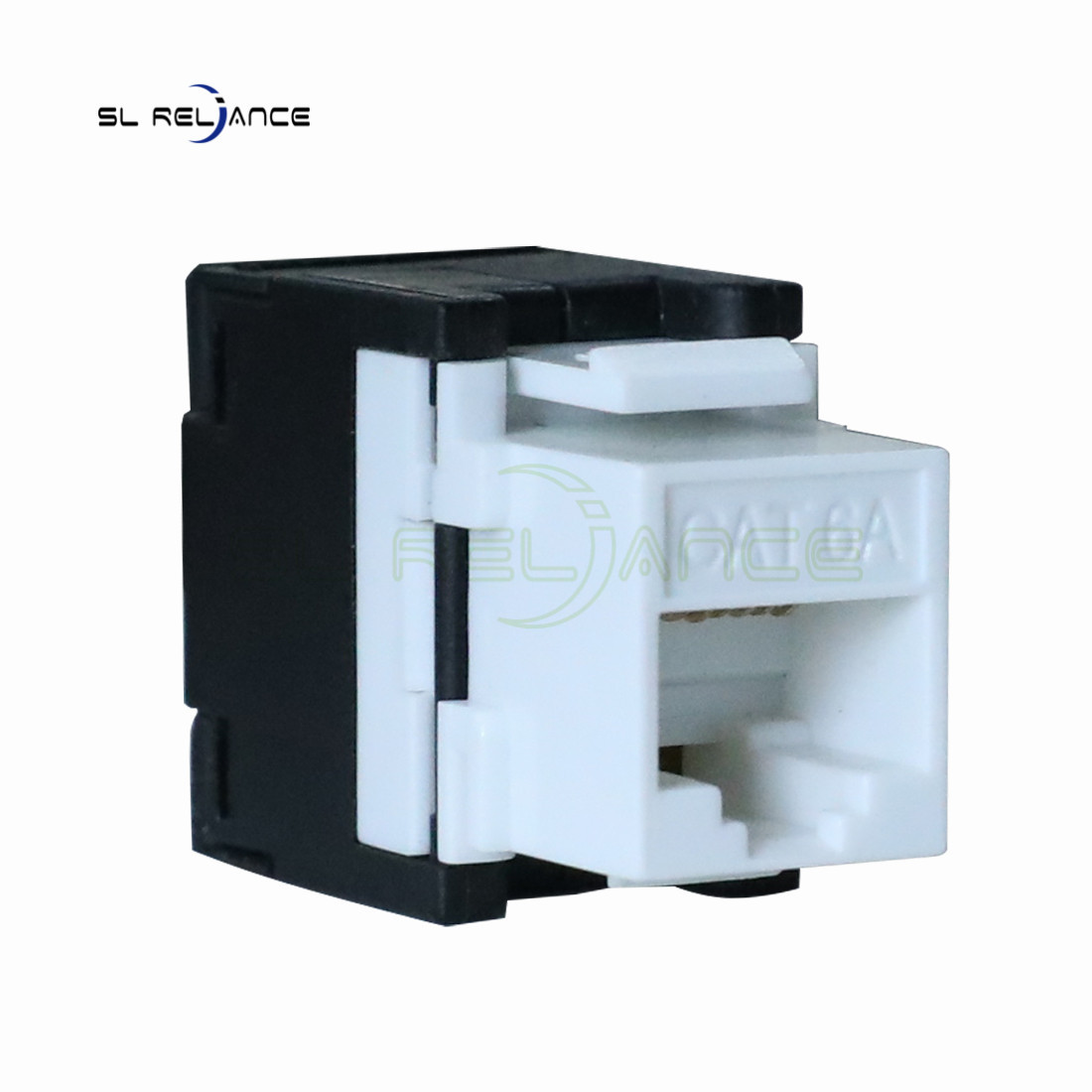

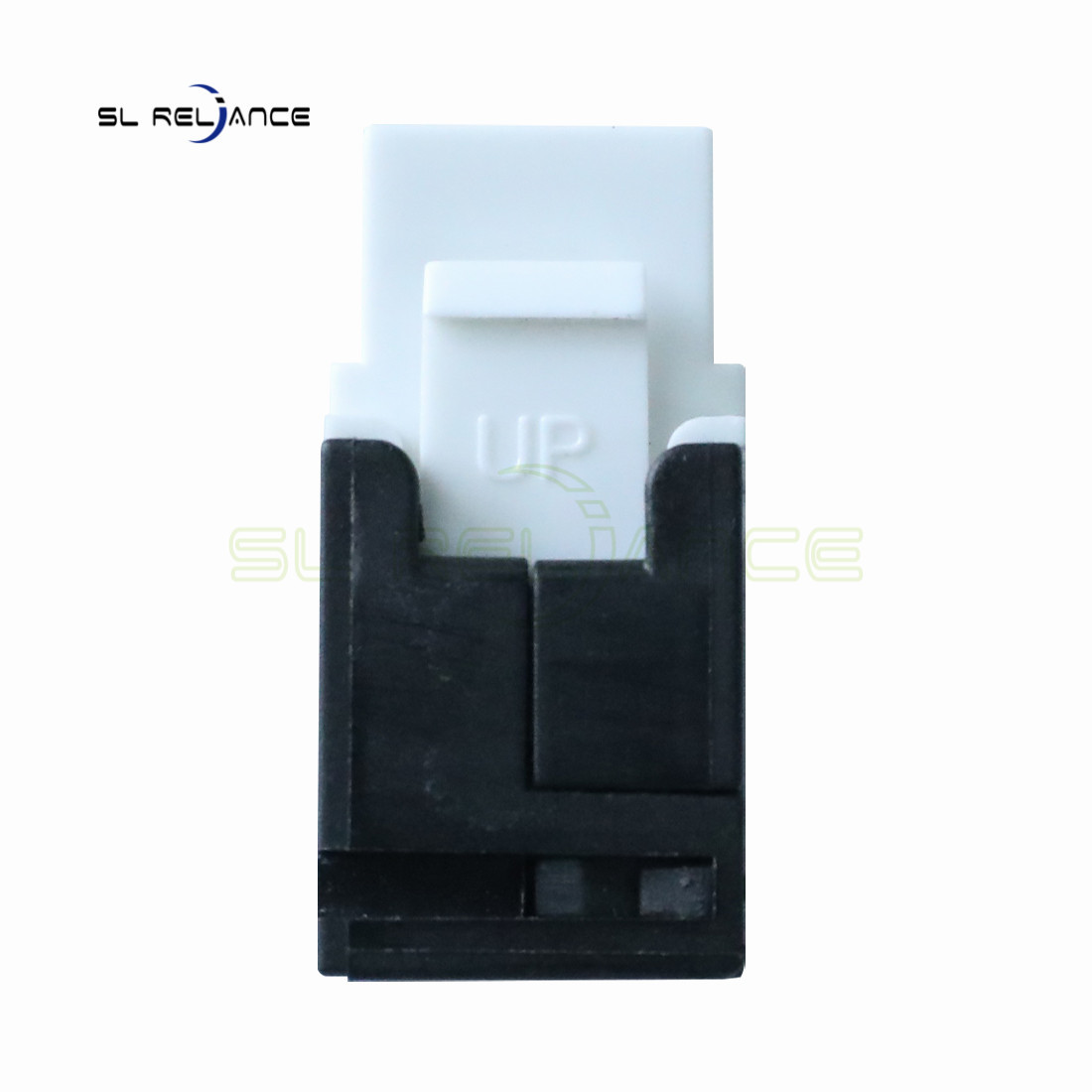

Category 6A UTP 180 Degree Copper Keystone Jack Black Color 8P8C Jack Modular Connector

Application :
1: Alarm systems and other signalling
2: Horizontal and Backbone Cabling
3: Token Ring
4: 10/100/1000/10G BASE-T
5: ATM
6: Analogue Voice, ISDN, ADSL.

Insertion life750 cycles minimum
IDC life200 times (22-26 AWG solid cable)
Contact materialPhosphor bronze, gold plating (0.5mm)
IDC materialPhosphor bronze stamp pin (0.35mm)
Housing materialPC UL94V-0

Model NumberSL2008C6A
NameKeystone Jack
TYPEUTP unshieled Rotary
Category6A
MaterialABS +PC
SpringPhosphor Bronze & Gold-painted
Wiring mode:T568A/B
IDC Terminal22-26 AWG Cable
IDC Pin:Phosphor Bronze & Tinned
RJ45 Insert pin8P8C 8" Gold Plated
ColorWHITE/Black
TestChannel test and Flukee test


Electrical
Voltage Rating :AC 125V
Current Rating :1.5 AMPS
Insulation Resistance:500MΩ Min
Withstand Voltage:DC 1000V RMS 50-60Hz Min
Contact Resistange:20MΩ Max
Mechanical
Insertion Force:2 pins 3.5N 4 pins 5N 6 pins 7.5N 8 pins 9 N
Retention Strength:70N between jack and plaug;60N between wire and IDC
Durability:Jack 700 mating cycles mini; IDC contact 100 stripper cycles mini
Wire:AWG 24-26
Material
Housing:PC(UL94V-0);ABS(UL94V-0);PC/ABS(UL94V-0)
IDC Hosing:PC(UL94V-0);PBT(UL94V-0)
Spring Wire:T=0.35mm phosphor bronze alloy selective gold
0.45 dia phosphor bronze gold plating over nickel
IDC Contact :Phosphor bronze;Nickel plating
Shielding:T=0.25mm copper alloy with tin plated gold
Plating :3u inch,6u inch,10u inch,15u inch,20u inch,30u inch,50u inch
Working Environment
Temperature:-10°c-60°c
Humidity:10-90%
