Zinc Alloy Cat6a Shielded Keystone Jack RJ45 8P8C Modular Jack

Categories RJ45 Keystone Jack
Brand Name: SL
Model Number: SL-JACK-2070C6A
Certification: CE ROHS
Place of Origin: GUANGDONG CHINA
MOQ: 1000PCS
Price: Negotiable
Payment Terms: T/T, Western Union, MoneyGram, D/A
Supply Ability: 100K PCS per WEEK
Delivery Time: 3-5 Days after payment
Packaging Details: 1000PCS/CARTON,
Product name: Cat6A RJ45 Keystone Jack 180 degree FTP modular jack
Model: 2070C6A
Shielded: FTP Shielded
Carton: 61*41*22CM
Qty of Carton: 1000PCS/carton
Weight: 27KGS/Carton
Application: Network Cabling Systems
Category: 6A
Type: Tooless
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Zinc Alloy Cat6a Shielded Keystone Jack RJ45 8P8C Modular Jack

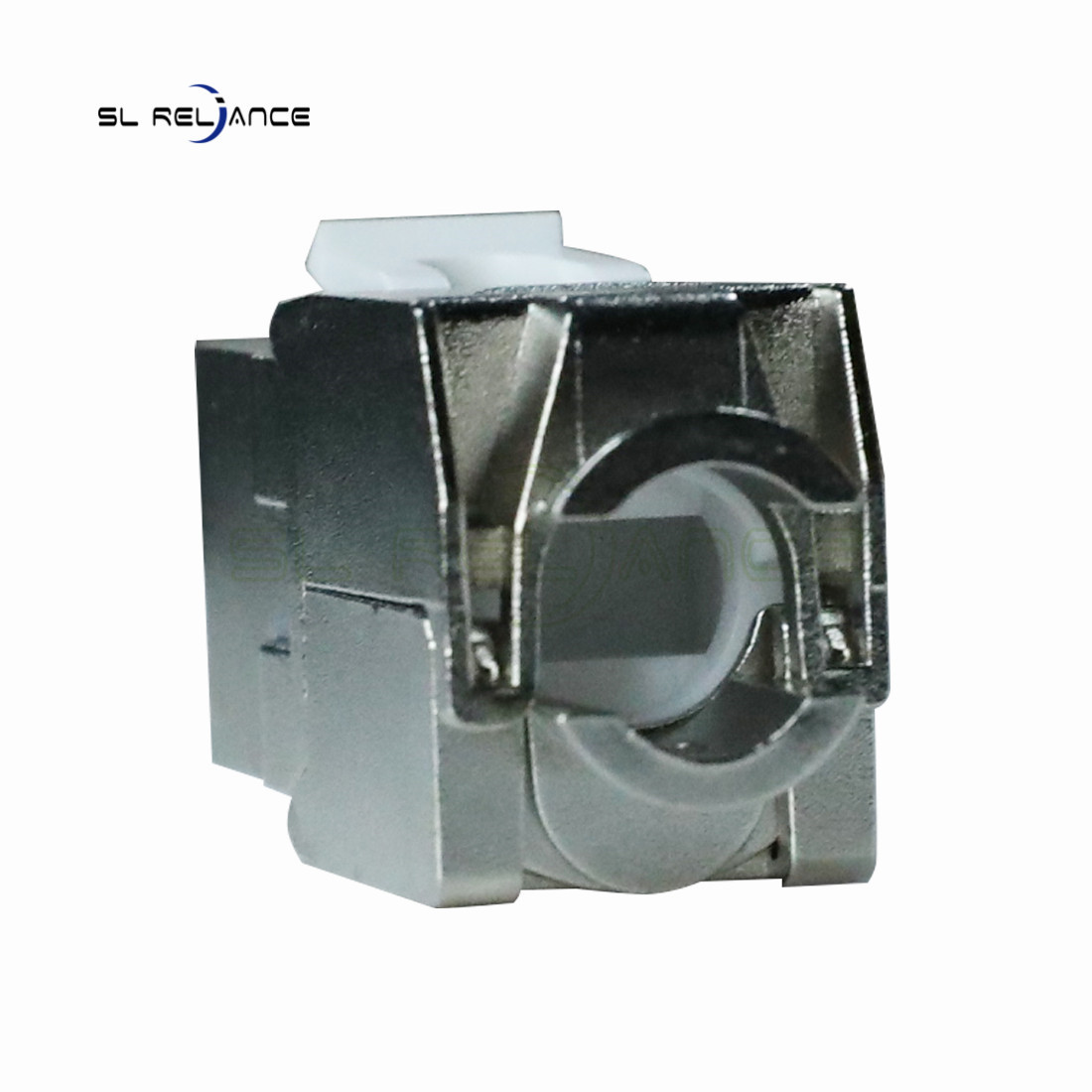

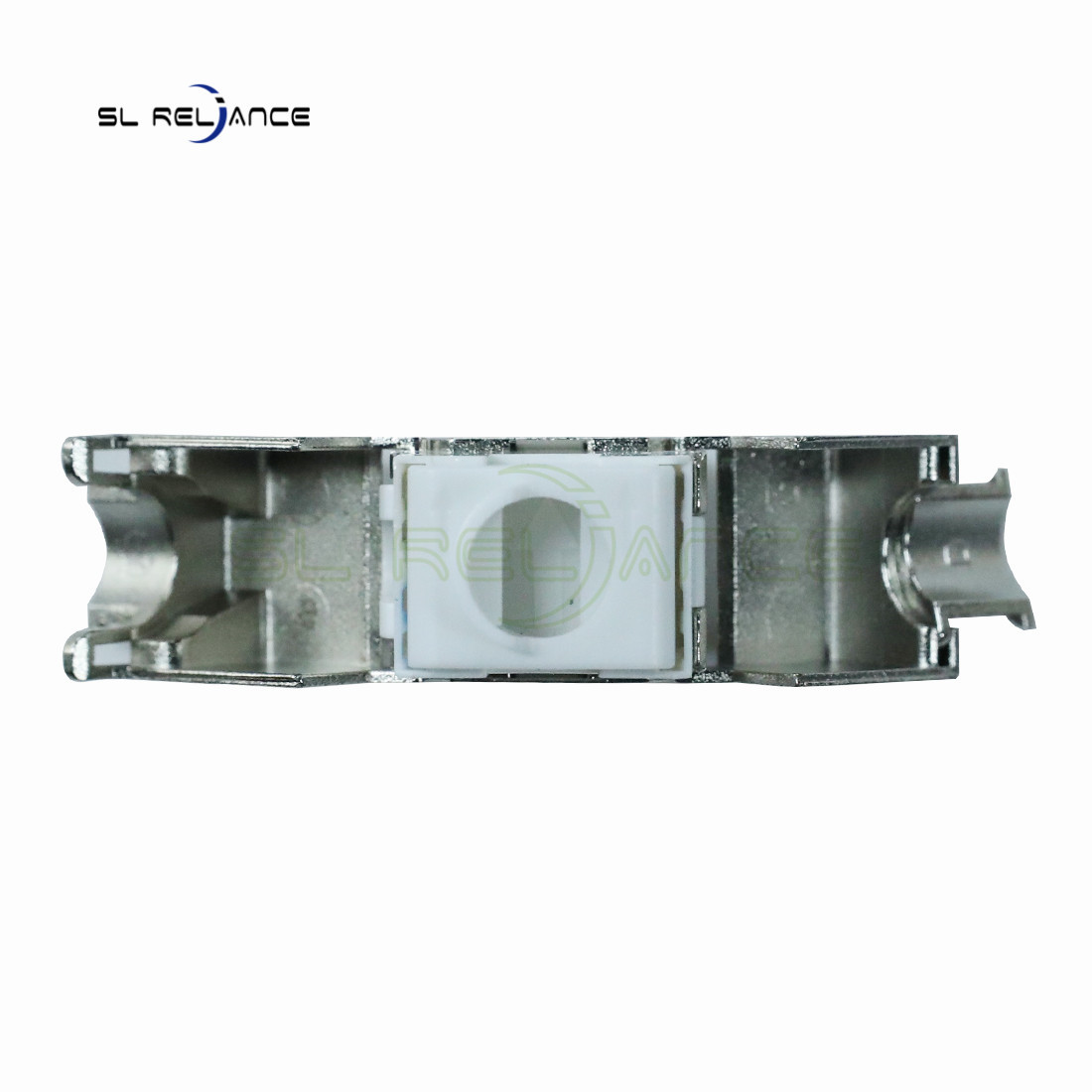

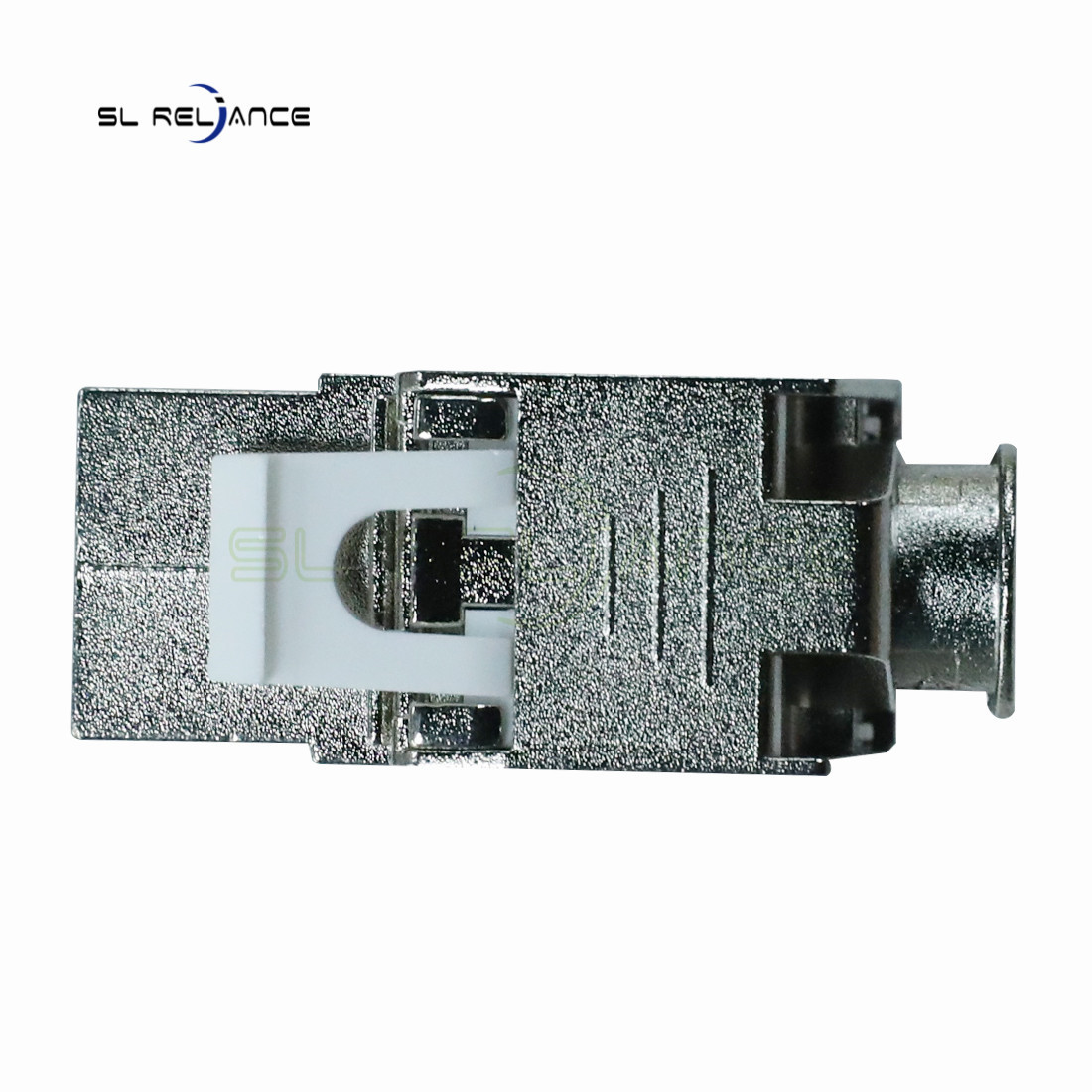

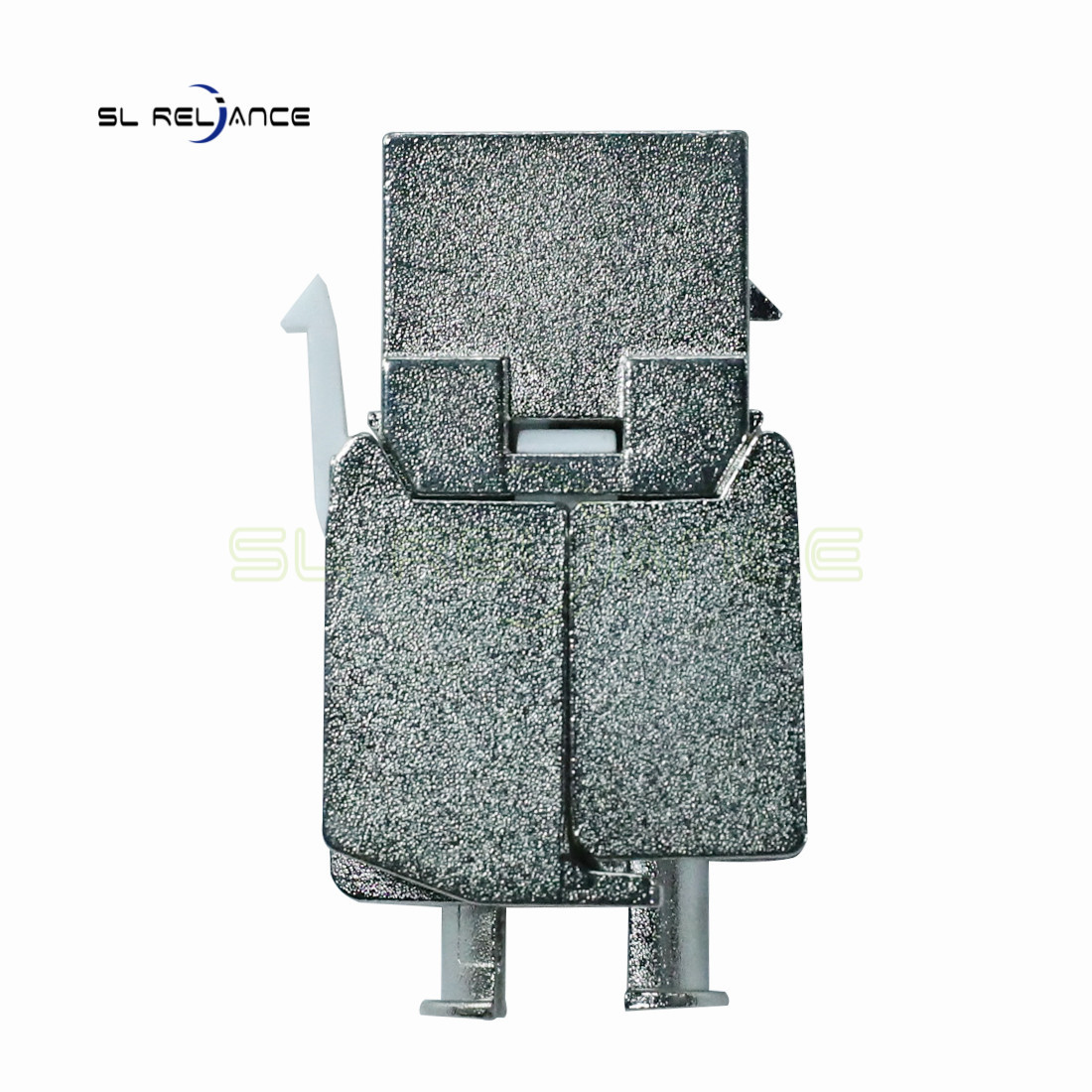

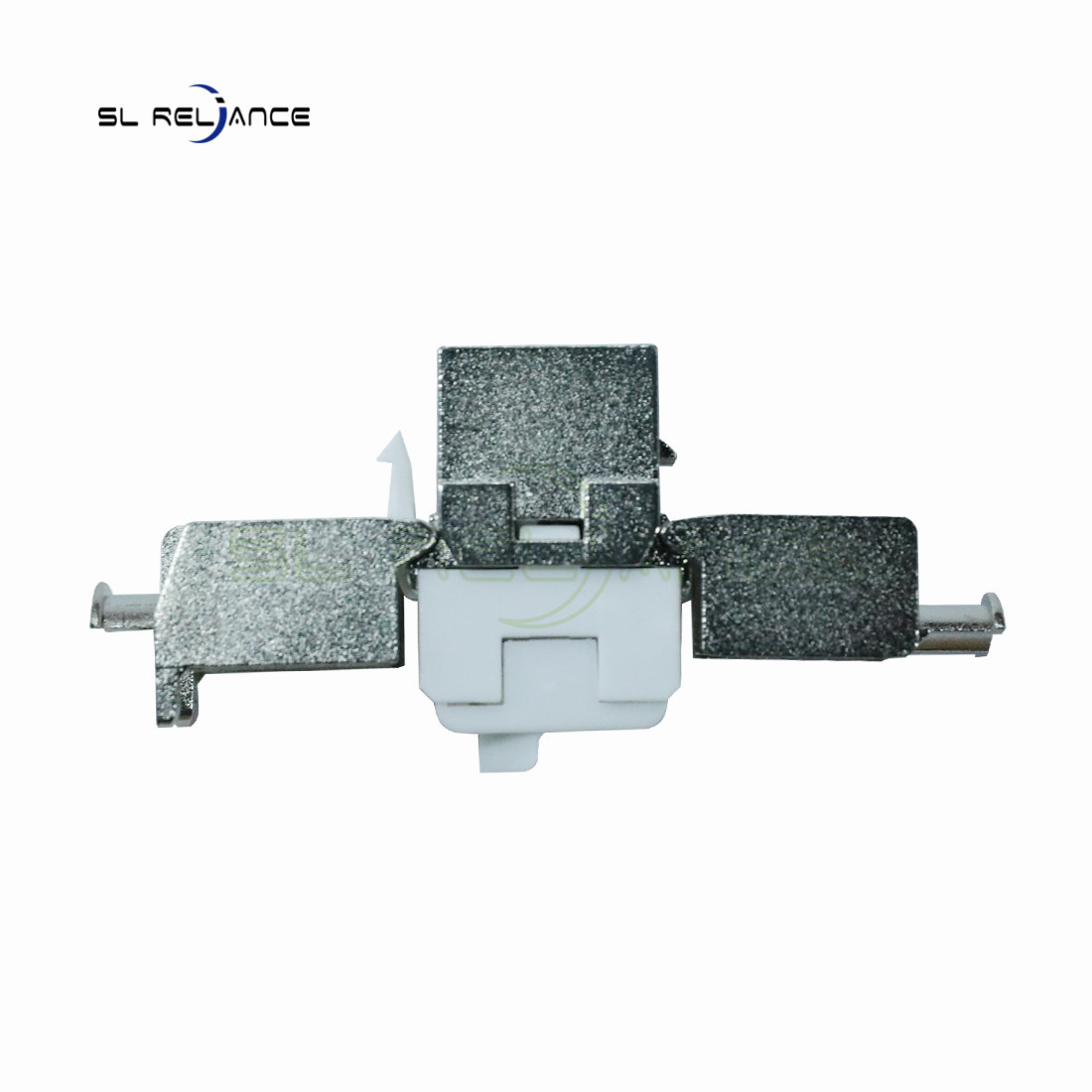

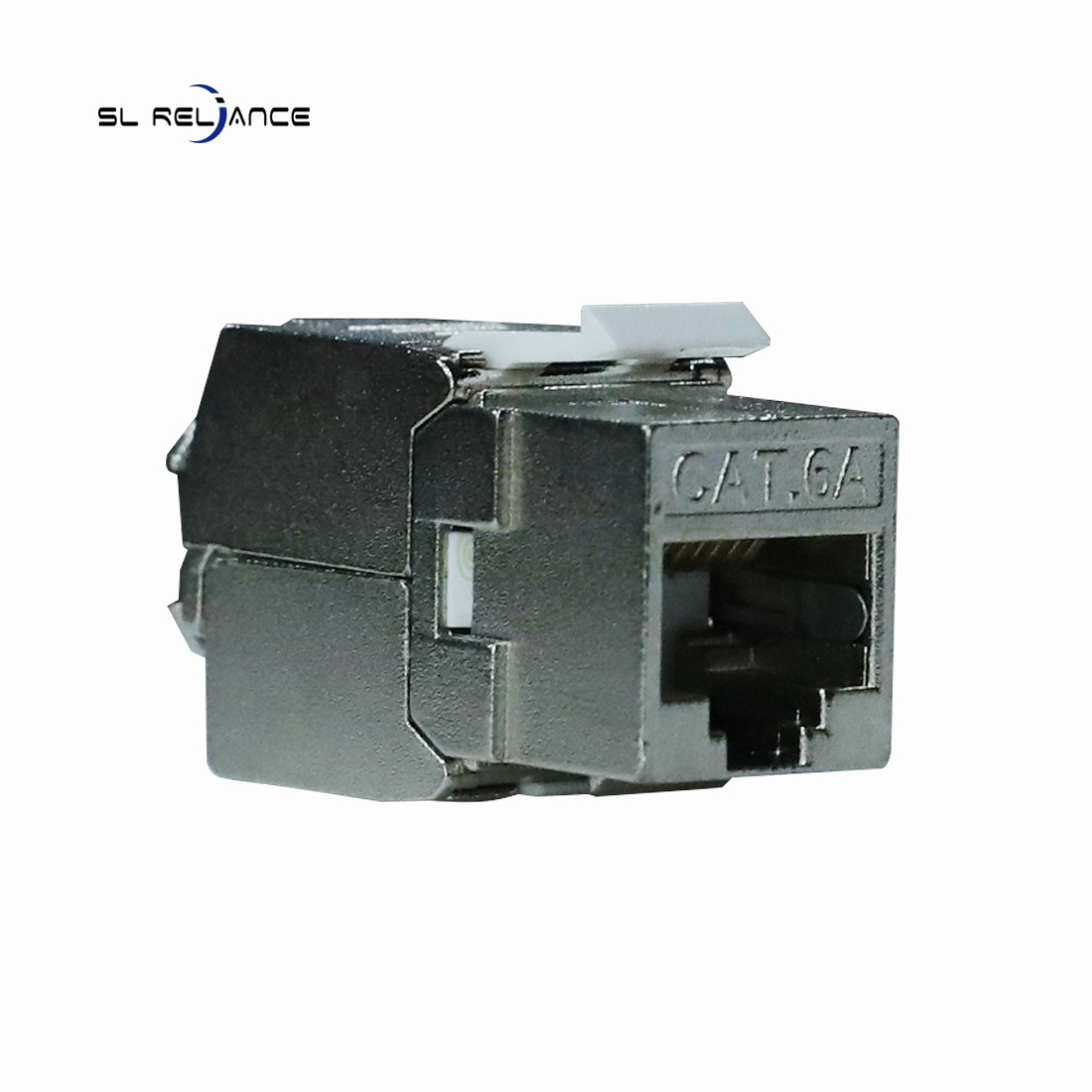

180 Degree Cat6A FTP Zinc Alloy Tooless Type Keystone Jack RJ45 8P8C Modular Jack


Features:


~ SL Cat6a Keystone Jack Suitable for 10 Gigabit (10/100/1000/10000 Mb/s)

~ Compatible with 23 to 26 AWG solid or stranded copper conductors.
~ Supports PoE++ 802.3bt Type 4, up to 90W.
~ Press-Fit Technology makes SL product more reliable and increases transmission performance.
~ Tested up to 500 MHz.
~ Self-adjusting spring in the strain relief neck assures the cable shield is in contact with the metal housing.
~ Easy to Use
~ Self-terminating means no more punch down tools required.


Contact Mating Area Plating Material = Gold plating option (3U",6U",15U",30U",50U") over Nickel


Model NumberSL2070C6a
NameINLINE COUPLER
TYPEFTP shieled
Category6a
SpringPhosphor Bronze & Gold-painted
Wiring mode:T568A&T568B
IDC Terminal22-26 AWG Cable
IDC Pin:Phosphor Bronze & Tinned
RJ45 Insert pin8P8C 8" Gold Plated
Housing MaterialZINC-ALLOY,PC
ColorSilver
TestChannel test and Flukee test


Electrical
Voltage Rating :AC 125V
Current Rating :1.5 AMPS
Insulation Resistance:500MΩ Min
Withstand Voltage:DC 1000V RMS 50-60Hz Min
Contact Resistange:20MΩ Max
Mechanical
Insertion Force:2 pins 3.5N 4 pins 5N 6 pins 7.5N 8 pins 9 N
Retention Strength:70N between jack and plaug;60N between wire and IDC
Durability:Jack 700 mating cycles mini; IDC contact 100 stripper cycles mini
Wire:AWG 24-26
Material
Housing:Zinc-Alloy
IDC Hosing:PC(UL94V-0)
Spring Wire:T=0.35mm phosphor bronze alloy selective gold
0.45 dia phosphor bronze gold plating over nickel
IDC Contact :Phosphor bronze;Nickel plating
Shielding:T=0.25mm copper alloy with tin plated gold
Plating :3u inch,6u inch,10u inch,15u inch,20u inch,30u inch,50u inch
Working Environment
Temperature:-10°c TO 60°c
Humidity:10-90%
