180 Degree Cat5e Tooless RJ45 Keystone Jack 8p8c FTP Inline Coupler Type

Categories RJ45 Keystone Jack
Brand Name: SL
Model Number: SL-JACK-2060C5
Certification: CE ROHS
Place of Origin: GUANGDONG CHINA
MOQ: 1000PCS
Price: Negotiable
Payment Terms: T/T, Western Union, MoneyGram, D/A
Supply Ability: 100K PCS per WEEK
Delivery Time: 3-5 Days after payment
Packaging Details: 1000PCS/CARTON,
Product: FTP Cat5e Inline Coupler Keystone Jack
Model Type: 2060C5
Shielded Type: Screened FTP
Carton Size: 61*41*22CM
Qty of Carton: 1000PCS
Weight: 12KGS/Carton
Application: Network communication connection
Material: Zinc Alloy
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

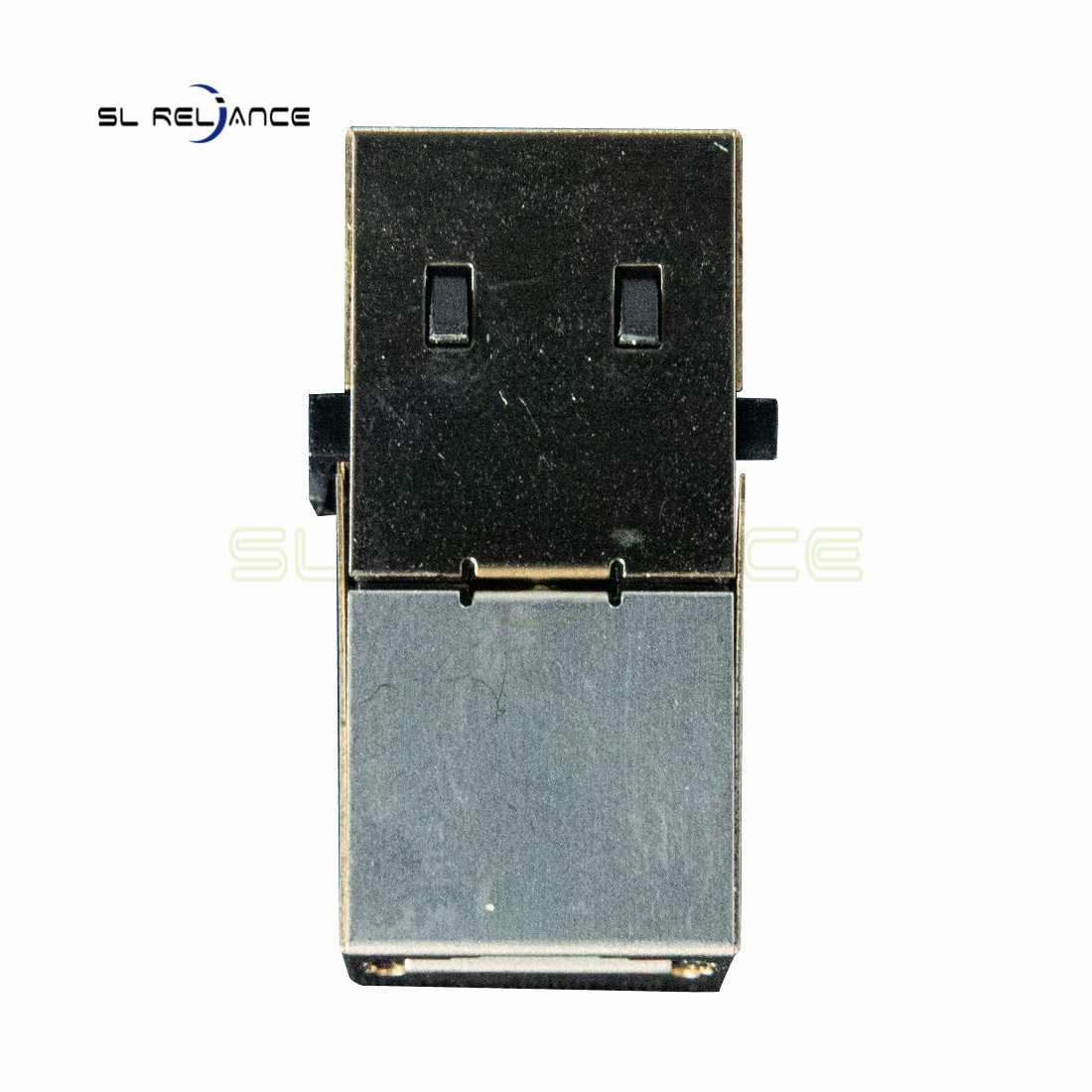

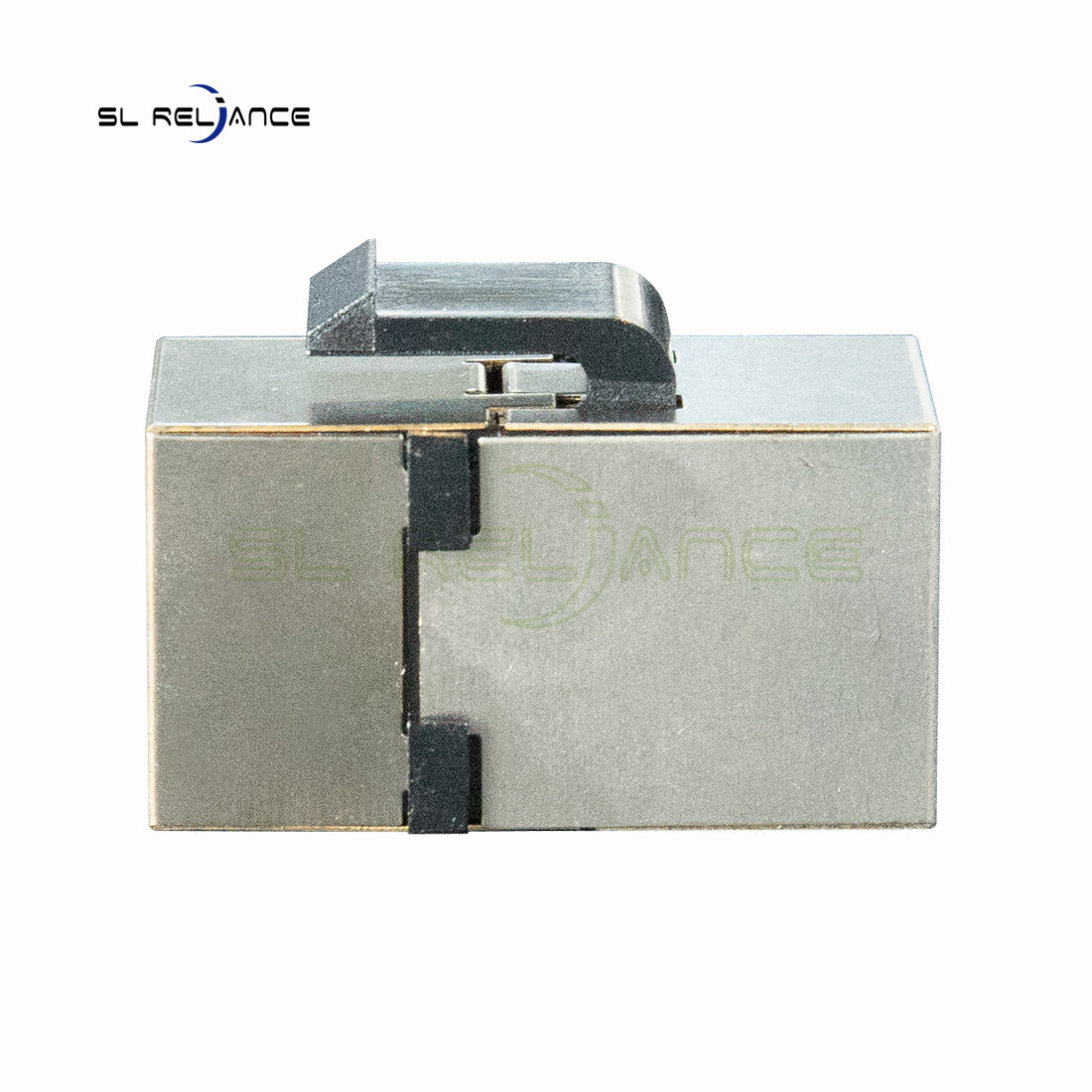

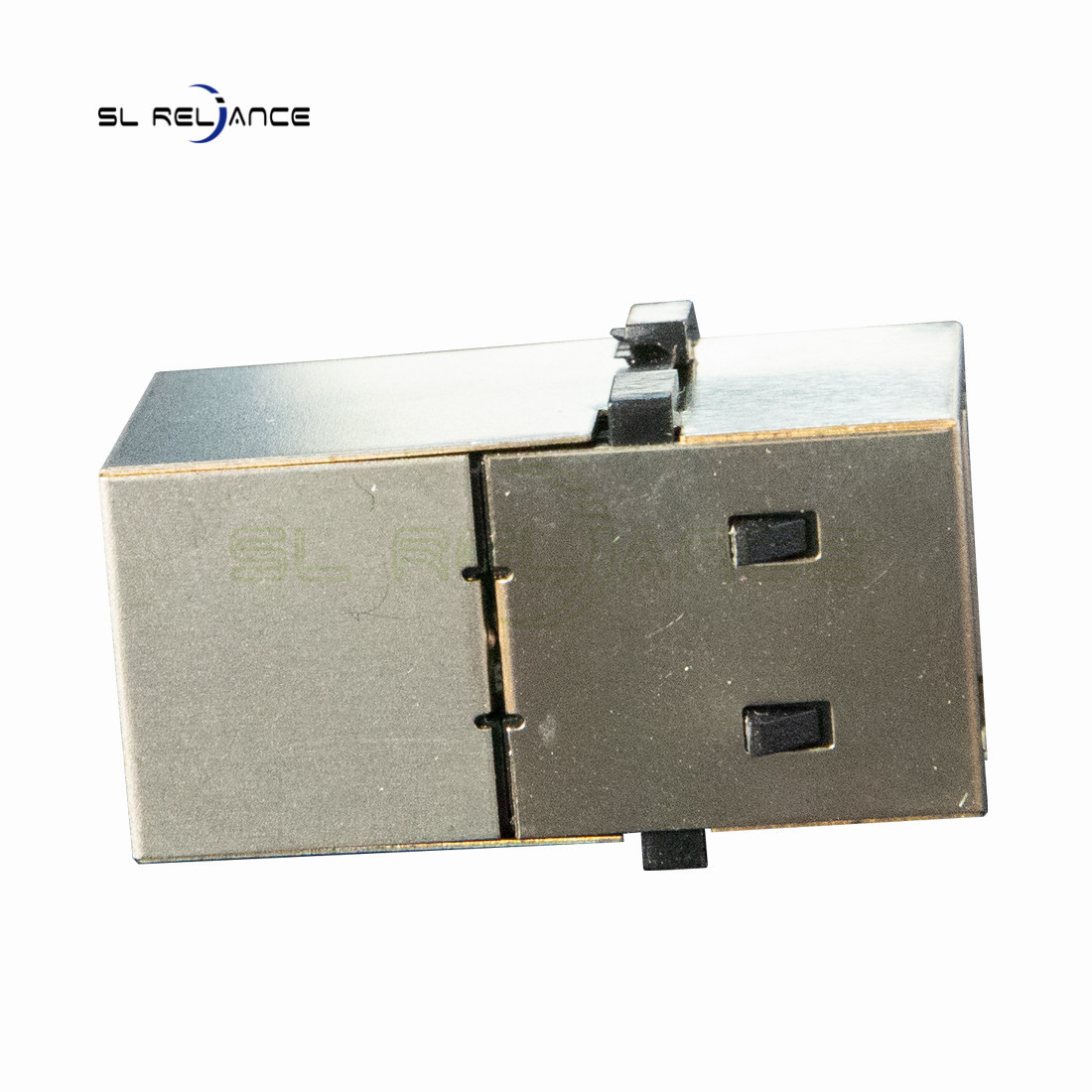

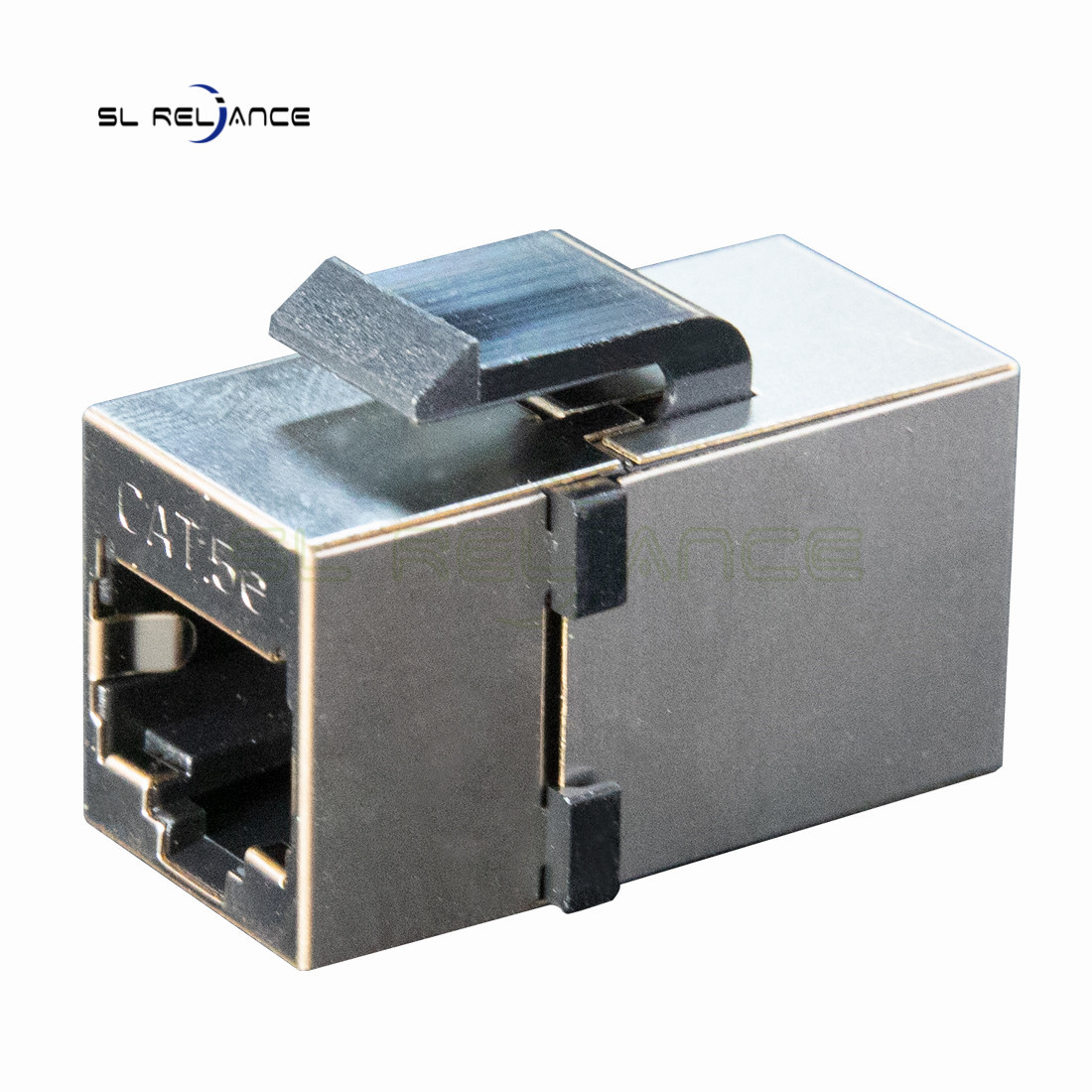

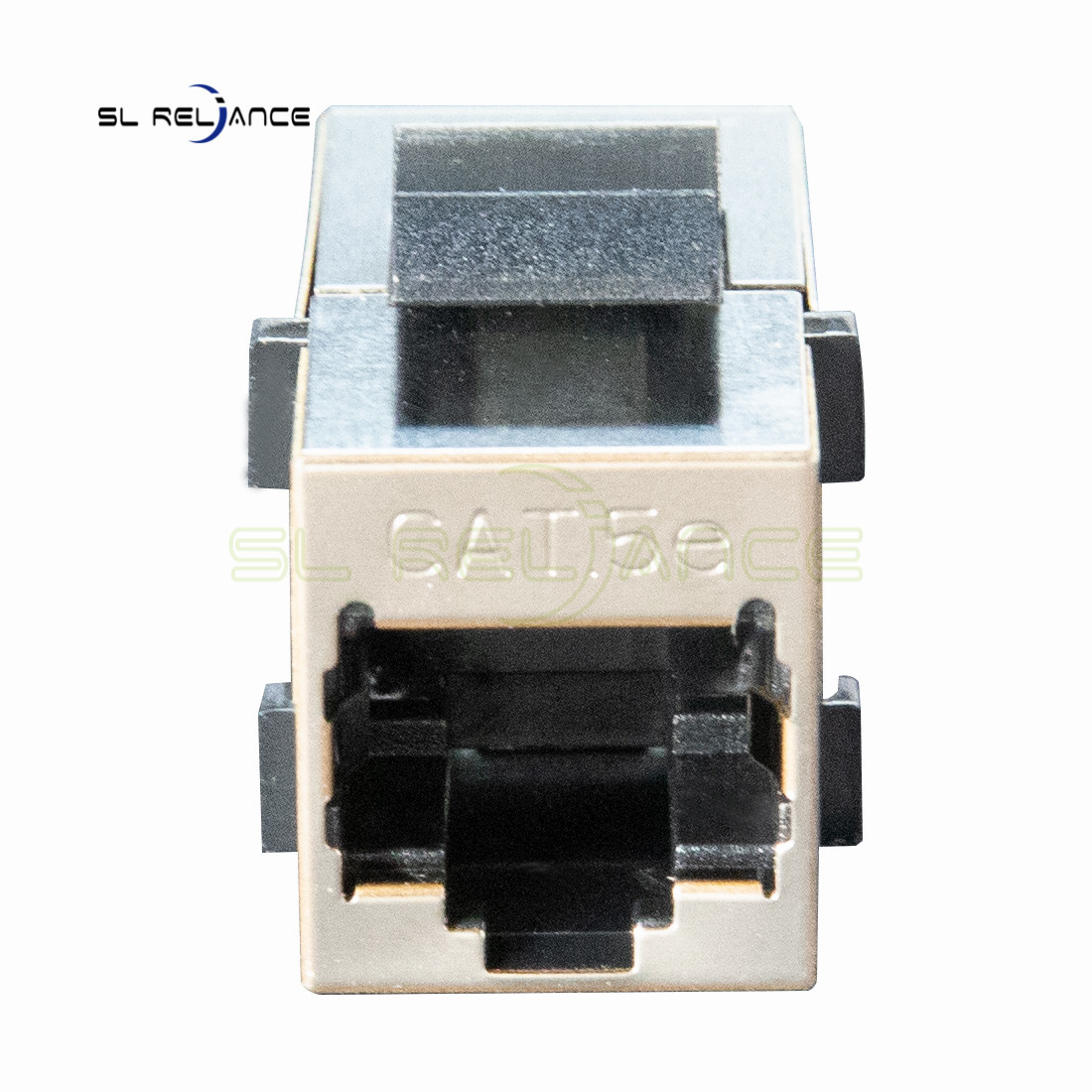

180 Degree Cat5e Tooless RJ45 Keystone Jack 8p8c FTP Inline Coupler Type


180 Degree FTP Inline Coupler Type Cat5e Tooless Keystone Jack 8p8c RJ45 Inline Coupler


SL Inline Coupler are the best chooice to extending the cables and linking several networking cable toghter. The SL Cat5e Couplers are most offen used togher with cat5e cable. The Coupler Jack keystone are compatiable with standards blank patch panels and wall plates. With Gold-Plated terminals to resist the corrosionn for years of usage, inline couplers provide female to female pass through connection.


Features:

CAT5e Shielded Keystone Jack Coupler

Features:
1:Straight type coupler for connecting two CAT5e cables together.
2:Female-to female CAT6 RJ45 connectors.
„3:Keystone plug-in
„4:Fully shielded
5:Compatible with modular patch panels.



Model NumberSL2060C5E
NameINLINE COUPLER
TYPEFTP shieled
Category5e
SpringPhosphor Bronze & Gold-painted
Wiring mode:T568A&T568B
IDC Terminal22-26 AWG Cable
IDC Pin:Phosphor Bronze & Tinned
RJ45 Insert pin8P8C 8" Gold Plated
Housing MaterialZINC-ALLOY,PC
ColorSilver
TestChannel test and Flukee test

Electrical
Voltage Rating :AC 125V
Current Rating :1.5 AMPS
Insulation Resistance:500MΩ Min
Withstand Voltage:DC 1000V RMS 50-60Hz Min
Contact Resistange:20MΩ Max
Mechanical
Insertion Force:2 pins 3.5N 4 pins 5N 6 pins 7.5N 8 pins 9 N
Retention Strength:70N between jack and plaug;60N between wire and IDC
Durability:Jack 700 mating cycles mini; IDC contact 100 stripper cycles mini
Wire:AWG 24-26
Material
Housing:Zinc-Alloy
IDC Hosing:PC(UL94V-0)
Spring Wire:T=0.35mm phosphor bronze alloy selective gold
0.45 dia phosphor bronze gold plating over nickel
IDC Contact :Phosphor bronze;Nickel plating
Shielding:T=0.25mm copper alloy with tin plated gold
Plating :3u inch,6u inch,10u inch,15u inch,20u inch,30u inch,50u inch
Working Environment
Temperature:-10°c TO 60°c
Humidity:10-90%
