| Categories | Concrete Batching Machine |
|---|---|
| Brand Name: | Mind |
| Model Number: | HZS-50 |
| Certification: | CE,ISO 9001 |
| Place of Origin: | China |
| MOQ: | 1 Set |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 Set Per Months |
| Delivery Time: | 7-25 Working Days |
| Packaging Details: | standard packing of concrete batching plant for international transport |
| Condition: | New |
| Product name: | HZS50 Stationary Precast Concrete Batching Plant |
| Application: | Construction Projects,Engineering & Construction machinery |
| Power(w): | 80 KW |
| Capacity: | 50m3/h |
| Cement silo: | 50t/100t/150t.customized |
| Discharging height: | 3.8-4.1 m |
| Mixer: | Concrete Mixer |
| Max. aggregate size(mm): | 80 mm |
| Warranty: | 12 Months |
| After-sales service provided: | Engineers available to service machinery overseas |
| Model | HZS50 |
| Theoretical output(m³/h) | 50 |
| Mixer model | JS1000 |
| Output per batch(m³) | 1 |
| Aggregate batcher | PLD1600 |
| Total power(KW) | 80 |
| Aggregate weighing accuracy(%) | (0-2500)kg±2% |
| cement weighing accuracy(%) | (0-500)kg±1% |
| water weighing accuracy(%) | (0-300)kg±1% |
| fly ash weighing accuracy(%) | (0-300)kg±1% |
| additive weighing accuracy(%) | (0-40)kg±1% |
| Discharge height(m) | 3.8-4.1 |
| Max. aggregate dia.(mm) | 80 |
| Cement silo and screw conveyor | On request |
| Total weight (ton) | 35 |
| Overall dimension(LxWxH)(m) | 20.5x7.5x19.4 |

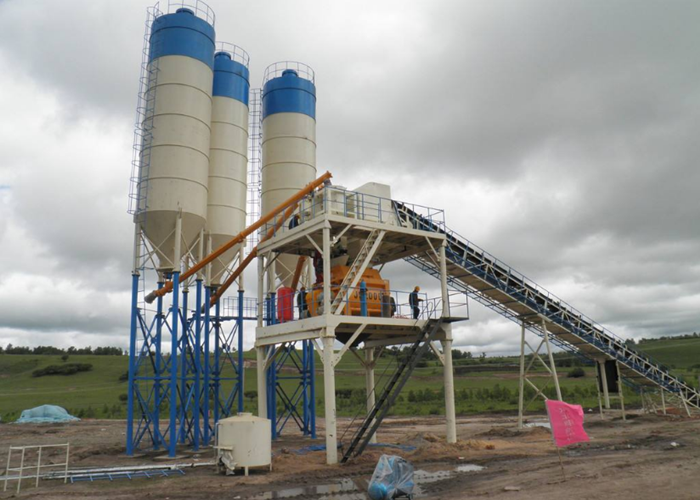

1. HZS series Concrete Batching Plant on Sale is composed of
feeding system,mixing system,electrical system and auxiliary
equipents(such as air compressor,water pump etc.), fea-tured by
high-precision computer control.
2. And aslo there are manual system,automatic head-drop
compensation and aggregate moisture compensation.
1. After the mixer control system is powered on, it enters the operation interface of man-machine dialogue, and the system performs initialization processing, including formula number, concrete level, slump, production volume, etc.
2. Detect each silo and weighing bucket according to the weighing,
output empty or full signal, prompt the operator to determine
whether to start the startup control program.
3. Start the sand and stone belt motor to feed the metering hopper;
open the butterfly valve of fly ash and cement tank; start the
screw machine motor to transport the fly ash and cement to the
metering hopper; open the control valve of the water tank and
admixture tank to make water And admixture into the measuring
bucket.
4. After the measurement meets the set requirements, open the
metering bucket door, and the ingredients enter the activated mixer
to mix and mix. Open the mixer door at the set time, and the
concrete enters the mixing truck that has been charged.
Since it has established, our company has paid great attention to the improvement of its own quality. In recent years, the company has made breakthroughs in market access and qualification certification, providing consumers with excellent product quality.
A. It is used to produce all kinds of concrete to meet the building work ofbuildings bndges dock,airport, railway,etc
A. Just tell us the capacity (t/h) of concrete you want to produce per hour or per month.
A. Usually the world most common used TT,L/C Westem Union elc
A. 15-30 days after receiving advance payment
A. We have more than 60 engineers.
|
