| Categories | Concrete Batching Machine |
|---|---|
| Brand Name: | Mind |
| Certification: | CE ISO 9001 BV |
| Place of Origin: | China(Mainland) |
| MOQ: | One Unit/Units |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 80 unit/units per Month |
| Delivery Time: | 7-20 Working Days |
| Packaging Details: | 1.40HQ standard exporting container 2.FCL:Wire cables are used for fastening the machine on the trailer or inside the container. Cork wood are placed in front or behind the machine to protect it. |
| Power type: | Electric |
| Power(w): | 92KW,85kw,105KW |
| Condition: | New |
| Warranty: | 12 Months,one year |
| Dimension(l*w*h): | Seller's Final Confirmation,According to the model |
| After-sales service provided: | Engineers available to service machinery overseas,Online support |
| Application: | Construction Projects,Engineering & Construction machinery |
| Control system: | PLC+PC |

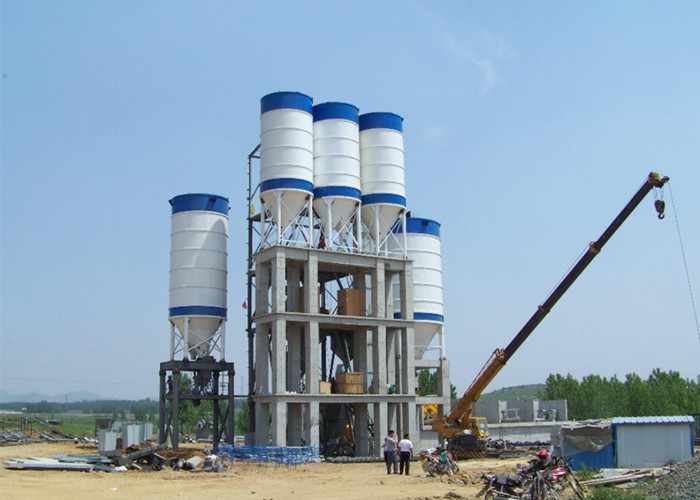

Consists of 3m3 forcing type twin shaft horizontal mixer, batching plant, cement silo, screw conveyor, belt conveyor, water supply system, weighing system, electronic and pneumatic control system and microcomputer control room, Jianxin brand IPC Automatic control Ready MixCement concrete mixing station with output 180m³/h could produce various kinds of concrete including dry concrete, plastic concrete and so on. With advantages of high production efficiency, short mixing time and nice appearance, widely used for large and medium size construction projects, is an ideal complete equipment for commercial concrete. Automatic control Ready MixCement concrete mixing station with output 180m³/h has an output of 180 cbm per hour, mixer power is 2*55 kw, mixer capacity is 3000 liters, 4-bin batching plant with batching capacity of 4800 liters, total power is 200 KW, meets big production demands.
| Model | HZS25 | HZS35 | HZS50 | HZS75 | |
| Theoretical output(m³/h) | 25 | 35 | 50 | 75 | |
| Mixer model | JS500 | JS750 | JS1000 | JS1500 | |
| Output per batch(m³) | 0.5 | 0.75 | 1 | 1.5 | |
| Aggregate batcher | PLD800 | PLD1200 | PLD1600 | PLD2400 | |
| Total power(KW) | 27 | 35 | 80 | 110 | |
| Aggregate weighing accuracy(%) | (0-1500)kg±2% | (0-2250)kg±2% | (0-2500)kg±2% | (0-4000)kg±2% | |
| cement weighing accuracy(%) | (0-300)kg±1% | (0-400)kg±1% | (0-500)kg±1% | (0-800)kg±1% | |
| water weighing accuracy(%) | (0-200)kg±1% | (0-300)kg±1% | (0-300)kg±1% | (0-500)kg±1% | |
| fly ash weighing accuracy(%) | (0-300)kg±1% | (0-300)kg±1% | (0-300)kg±1% | (0-500)kg±1% | |
| additive weighing accuracy(%) | (0-40)kg±1% | (0-40)kg±1% | (0-40)kg±1% | (0-50)kg±1% | |
| Discharge height(m) | 3.8-4.1 | ||||
| Max. aggregate dia.(mm) | 60 | 60 | 80 | 80 | |
| Cement silo and screw conveyor | On request | ||||
| Total weight (ton) | 20 | 25 | 35 | 45 | |
| Overall dimension(LxWxH)(m) | 11.5x5.8x19.4 | 12x6x19.4 | 20.5x7.5x19.4 | 25.9x9.2x19.4 | |
| 1) The main machine works smoothly: the raw materials enter the mixer evenly for a relatively long period of time. There is no intermittent burst feeding process. |
| 2) The finished product enters the car smoothly: the concrete enters the car evenly in a long period of time, and there is no intermittent burst discharge process. |
| 3) Less space occupation: the bucket of the finished product and the aggregate in the aggregate are reduced, the height is low, and the floor space is small. |
| 4) Low wear of wear parts: smooth and smooth without impact, while stirring is small. |
| 5) Low energy consumption: the installed power is small, the amount of agitation is small, and a small amount of raw materials enters the mixer evenly and is easily mixed evenly. |
| 6) Low cost of use and maintenance: less structural links, short belts and stable operation. |
|
