Brand Name: | OEM Produce |
Model Number: | CAT5E Lan Cable |
Certification: | CE. ROHS. |
Place of Origin: | Hangzhou, China |
MOQ: | 10km |
Price: | FOB Shanghai Price: 43.00 USD/305m |
Payment Terms: | TT. LC |
Supply Ability: | 5000km/ Month |
Delivery Time: | 20days after deposit |
Packaging Details: | 100M. 200M. 300M. 1000FT. 500M. Reel |
Type: | Network Lan Cable with Jelly FTP CAT5E |
Number of Conductors: | 4 Pair 24AWG BC |
OEM Produce: | yes |
Color: | black Strong UV PE |
Application: | for Outdoor Installation |
Company Info. |
Hangzhou Aite Cable co.,Ltd. |
View Contact Details |
Product List |
CAT5E 4 Pair 0.5mm Copper
FTP CAT5E | |||||
Production Description: Rate temprature: 60℃, 75℃, 90℃ Reference Standard: TIA/ EIA-568B Bare soled copper conductor RoHS Complied PVC, PE or LSOH Jacket Complies to TIA/ EIA-568B&ISO/ IEC 11801 Application: Ethernet 10Base-TX ATM Trunk Wiring | |||||
Basic Construction | Material | Diameter (mm) | |||
Conductor | BC | 24AWG | |||
Insulation | PE | 0.9 | |||
Jacket | PVC | 5.1 | |||
BASIC CHARACTERISTICS | |||||
Temperature Rating | -20℃ to 60℃ | ||||
Dielectric Breakdown | 2500V | ||||
DC Resistance/Unbalance | 28.6Ω/1000’Max/5% Max | ||||
Characteristics Impedance | 100Ω | ||||
Other Electric Performance | Frequency | Attenuation | Return Loss | Pair to Pair | |
(MHz) | (dB/100m) | (dB/100m) | Next | ELFEXT | |
(dB/100m) | (dB/100m) | ||||
0.77 | 1.8 | NA | 70 | 69 | |
1 | 2 | 20 | 68.3 | 66.8 | |
4 | 4 | 23 | 59.3 | 54.7 | |
8 | 5.8 | 24.5 | 54.8 | 48.7 | |
10 | 6.5 | 25 | 53.3 | 46.8 | |
16 | 8.2 | 25 | 50.3 | 42.9 | |
20 | 9.2 | 25 | 48.8 | 40.7 | |
25 | 10.4 | 24.3 | 47.3 | 38.8 | |
31.25 | 11.7 | 23.6 | 45.9 | 36.9 | |
62.5 | 17 | 21.5 | 41.4 | 30.8 | |
100 | 22 | 20.1 | 38.3 | 26.8 | |
155 | 28.1 | 18.8 | 35.5 | 22.9 | |
200 | 32.4 | 18 | 33.8 | 20.7 | |
300 | 41 | 16.8 | 32.3 | 17.2 | |
350 | 44.9 | 16.3 | 30.2 | 15.9 |

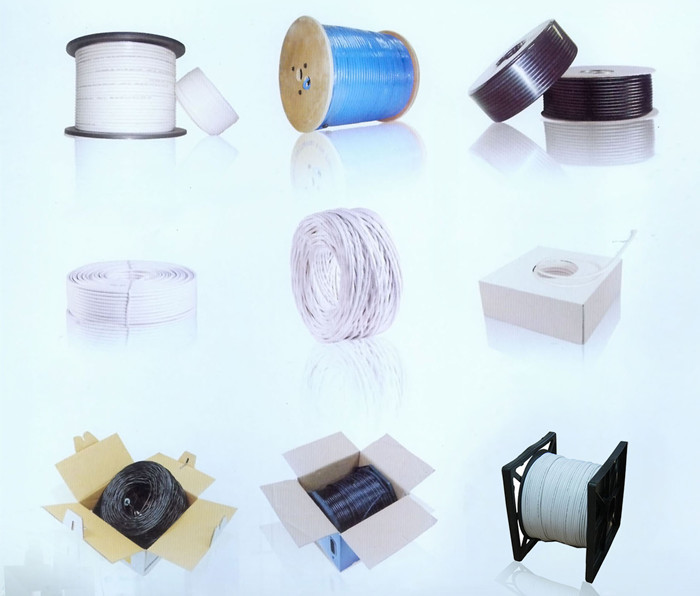

Lan Networking Cables Packing for Global Market

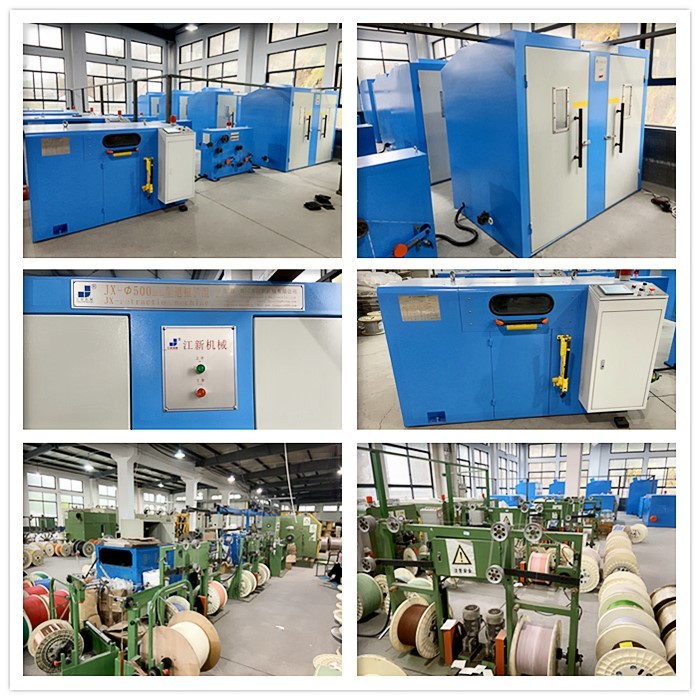

Networking Cable Production Line

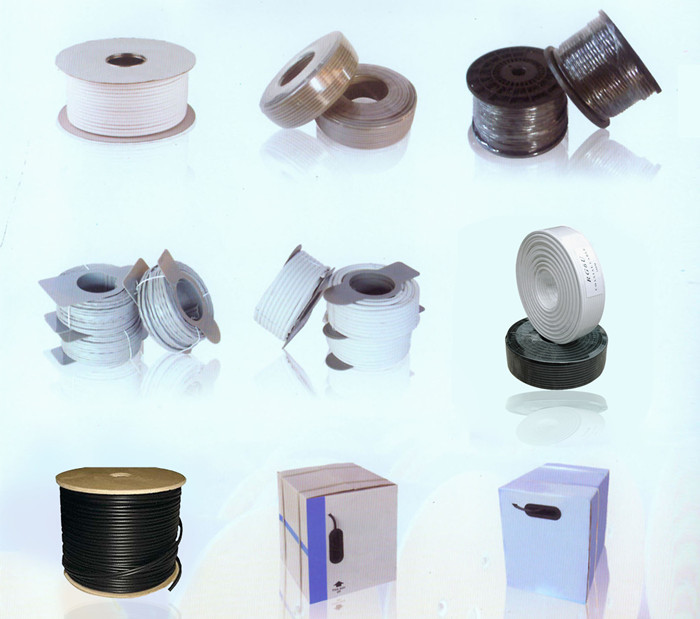

OEM Packing As Required
Cable Raw Material
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
