| Categories | Bulk CAT5E Cable |
|---|---|
| Brand Name: | OEM Produce |
| Model Number: | UTP CAT5E Outdoor |
| Certification: | CPR. Rohs. CE. |
| Place of Origin: | Hangzhou, China |
| MOQ: | 10km |
| Price: | FOB Shanghai Price: 43.00 USD/305m |
| Payment Terms: | TT. LC |
| Supply Ability: | 5000km/ Month |
| Delivery Time: | 20days after deposit |

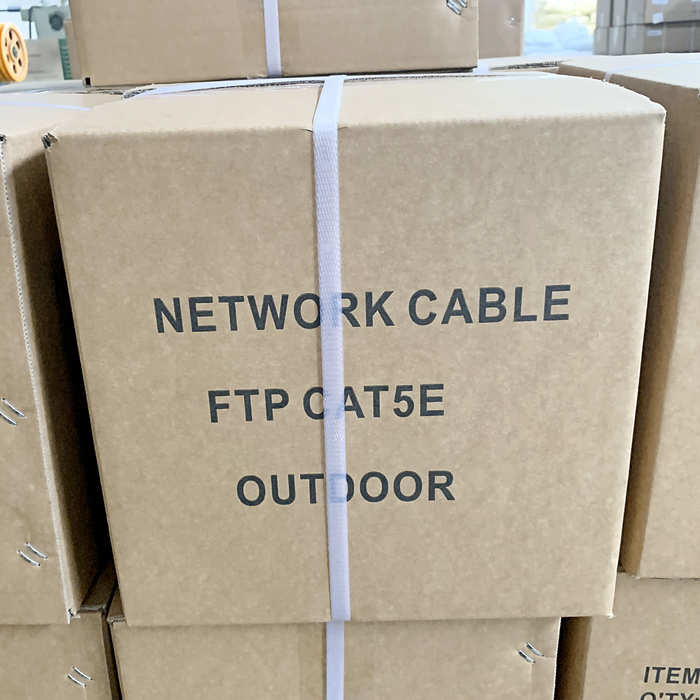

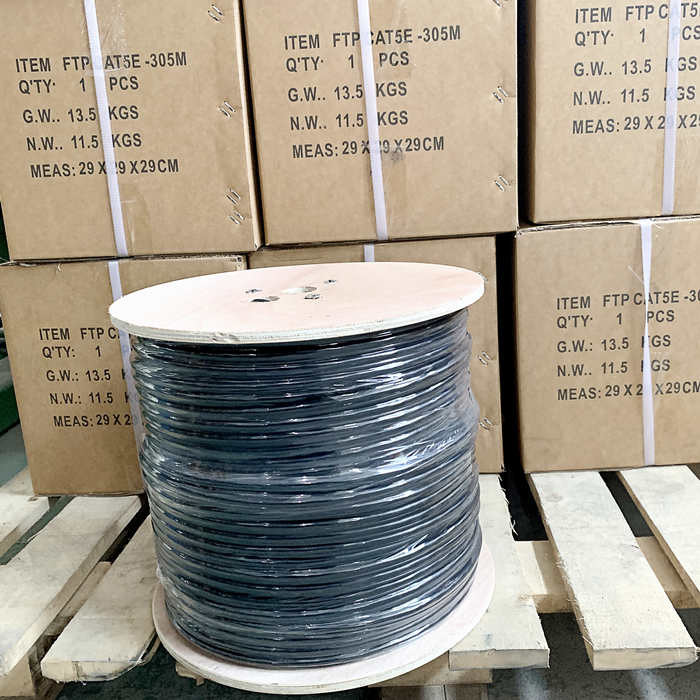

| Packaging Details: | 100M. 200M. 300M. 1000FT. 500M. Reel |

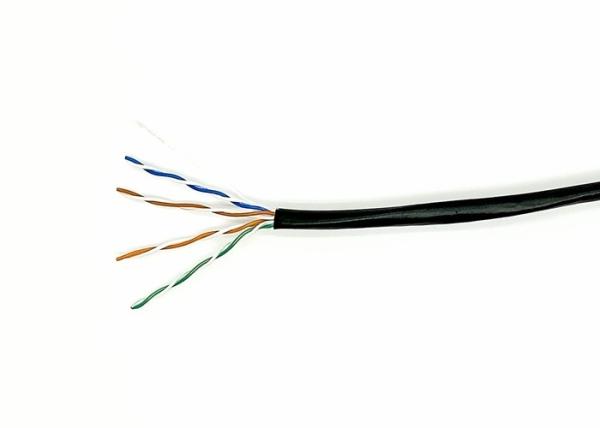

| Type: | F/UTP CAT5E Cable |
| Conductor: | 4 Pairs Bare Copper |
| Shield: | Unshielded |
| Rip Cord: | Nylon or Cotton Wire |
| Color: | Black PE-UV |
| Jelly: | without Jelly |
| Length: | 1000Ft/ 305M or OEM |
| Packing: | Pull box or OEM |
| Application: | Networking,PC,Telecommunication |
| Company Info. |
| Hangzhou Aite Cable co.,Ltd. |
| View Contact Details |
| Product List |
Shielded FTP/UTP CAT5E Twisted Lan Cable Blue Transparant PVC Computer Wire
CAT5E 4 Pair 0.5mm Copper
| UTP CAT5E | |||||
| Production Description: Rate temprature: 60℃, 75℃, 90℃ Reference Standard: TIA/ EIA-568B Bare soled copper conductor RoHS Complied PVC, PE or LSOH Jacket Complies to TIA/ EIA-568B&ISO/ IEC 11801 Application: Ethernet 10Base-TX ATM Trunk Wiring | |||||
| Basic Construction | Material | Diameter (mm) | |||
| Conductor | BC/ CCA | 24AWG | |||
| Insulation | HDPE | 0.9 | |||
| Shield | AL Foil | 15 | |||
| Earth Wire/ Drain Wire | 0.4TC/ TCCA | ||||
| PET Foil | PET Foil | ||||
| Rip Cord | Nylon/ Cotton | 15 | |||
| Outer Jacket | Black UV-PE | 5.3 | |||
| BASIC CHARACTERISTICS | |||||
| Temperature Rating | -20℃ to 60℃ | ||||
| Dielectric Breakdown | 2500V | ||||
| DC Resistance/Unbalance | 28.6Ω/1000’Max/5% Max | ||||
| Characteristics Impedance | 100Ω | ||||
| Other Electric Performance | Frequency | Attenuation | Return Loss | Pair to Pair | |
| (MHz) | (dB/100m) | (dB/100m) | Next | ELFEXT | |
| (dB/100m) | (dB/100m) | ||||
| 0.77 | 1.8 | NA | 70 | 69 | |
| 1 | 2 | 20 | 68.3 | 66.8 | |
| 4 | 4 | 23 | 59.3 | 54.7 | |
| 8 | 5.8 | 24.5 | 54.8 | 48.7 | |
| 10 | 6.5 | 25 | 53.3 | 46.8 | |
| 16 | 8.2 | 25 | 50.3 | 42.9 | |
| 20 | 9.2 | 25 | 48.8 | 40.7 | |
| 25 | 10.4 | 24.3 | 47.3 | 38.8 | |
| 31.25 | 11.7 | 23.6 | 45.9 | 36.9 | |
| 62.5 | 17 | 21.5 | 41.4 | 30.8 | |
| 100 | 22 | 20.1 | 38.3 | 26.8 | |
| 155 | 28.1 | 18.8 | 35.5 | 22.9 | |
| 200 | 32.4 | 18 | 33.8 | 20.7 | |
| 300 | 41 | 16.8 | 32.3 | 17.2 | |
| 350 | 44.9 | 16.3 | 30.2 | 15.9 | |
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
