| Categories | Bulk CAT5E Cable |
|---|---|
| Brand Name: | OEM Produce |
| Model Number: | Outdoor CAT5E MS |
| Certification: | CPR. CE. ROHS. |
| Place of Origin: | Hangzhou, China |
| MOQ: | 10km |
| Price: | FOB Shanghai Price: 55.00 USD/305m |
| Payment Terms: | TT. LC |
| Supply Ability: | 5000km/ Month |
| Delivery Time: | 20days after deposit |
| Packaging Details: | 100M. 200M. 300M. 1000FT. 500M. Reel |
| Conductor: | Solid 24AWG Copper |
| Insulation: | 0.91HDPE |
| Shield: | AL Foil Blue |
| Messenger: | 1.2mm Solid Galvanized Steel |
| Packing: | 305M/1000FT Wooden Drum |
| Application: | Networking, Aerial |
| Company Info. |
| Hangzhou Aite Cable co.,Ltd. |
| View Contact Details |
| Product List |

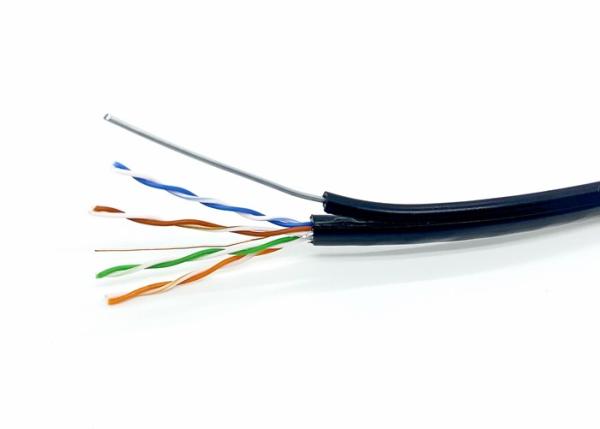

FTP CAT5E Ms 4 Pair 0.5mm Copper With Galvanized Steel Drop Wire
Packing & Shipping for cat5e network cables :
Packaging Details
(1) Packing Lengths: 305m/roll Other lengths available according to client's request.
(2) Inner packing: pull box.
(3) Outer packing: Carton box, pull box
(4) Other packing available according to client's request.
Delivery Detail
15 days after customers' confirmed
| Lan Cable FTP CAT5E | |||||
Production Description: Rate temprature: 60℃, 75℃, 90℃ Reference Standard: TIA/ EIA-568B Bare soled copper conductor RoHS Complied PVC, PE or LSOH Jacket Complies to TIA/ EIA-568B&ISO/ IEC 11801 Application: Ethernet 10Base-TX ATM Trunk Wiring | |||||
| Basic Construction | Material | Diameter (mm) | |||
| Conductor | BC | 24AWG | |||
| Insulation | PE | 0.9 | |||
| First Jacket | PVC | 5.1 | |||
| Second Jacket | UV PE | 6.5 | |||
| Messenger | Galvanized Steel | 1.2 | |||
| BASIC CHARACTERISTICS | |||||
| Temperature Rating | -20℃ to 60℃ | ||||
| Dielectric Breakdown | 2500V | ||||
| DC Resistance/Unbalance | 28.6Ω/1000’Max/5% Max | ||||
| Characteristics Impedance | 100Ω | ||||
| Other Electric Performance | Frequency | Attenuation | Return Loss | Pair to Pair | |
| (MHz) | (dB/100m) | (dB/100m) | Next | ELFEXT | |
| (dB/100m) | (dB/100m) | ||||
| 0.77 | 1.8 | NA | 70 | 69 | |
| 1 | 2 | 20 | 68.3 | 66.8 | |
| 4 | 4 | 23 | 59.3 | 54.7 | |
| 8 | 5.8 | 24.5 | 54.8 | 48.7 | |
| 10 | 6.5 | 25 | 53.3 | 46.8 | |
| 16 | 8.2 | 25 | 50.3 | 42.9 | |
| 20 | 9.2 | 25 | 48.8 | 40.7 | |
| 25 | 10.4 | 24.3 | 47.3 | 38.8 | |
| 31.25 | 11.7 | 23.6 | 45.9 | 36.9 | |
| 62.5 | 17 | 21.5 | 41.4 | 30.8 | |
| 100 | 22 | 20.1 | 38.3 | 26.8 | |
| 155 | 28.1 | 18.8 | 35.5 | 22.9 | |
| 200 | 32.4 | 18 | 33.8 | 20.7 | |
| 300 | 41 | 16.8 | 32.3 | 17.2 | |
| 350 | 44.9 | 16.3 | 30.2 | 15.9 | |
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
