Place of Origin: | DongGuan of China |
Brand Name: | DGKYD |
Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 |
Model Number: | KRJ-256SHGYENL |
MOQ: | 1 piece |
Price: | Please contact us to get the latest price. |
Packaging Details: | Tray in Carton |
Delivery Time: | 10 days |
Payment Terms: | T/T, D/P, D/A, L/C, Western Union, MoneyGram |
Supply Ability: | 100K pcs/day |
Speed: | Cat 5 / 5e |
Latch: | Tab up |
Port: | 1x1 |
Application: | Signal |
Mount Style: | Dip |
Shield: | Yes |
Company Info. |
Keyouda Electronic Technology Co.,ltd |
Verified Supplier |
View Contact Details |
Product List |

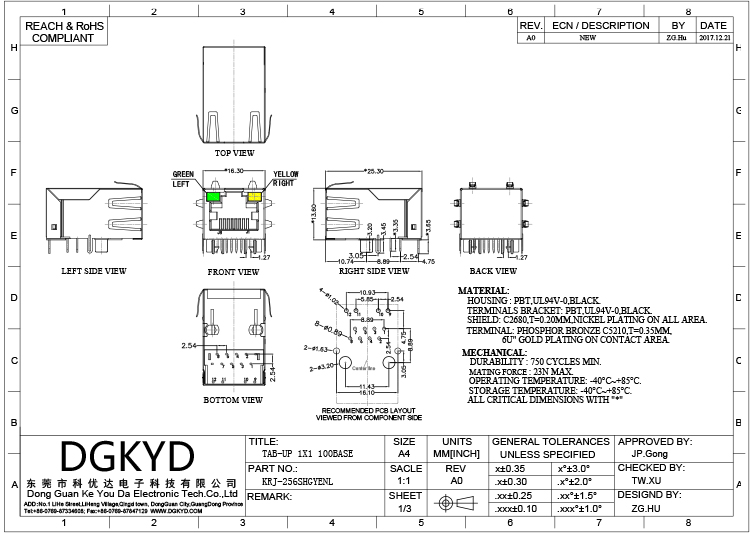

Material specifications:
Note:RJ45 ,in order to keep good touch between gold finger and crystal head,should paint the gold on the surface,there is 6u,15u,30,50u,usually use 6u,according to customer’s request and cost to proceed, gold finger insert and pull life should be 750 times above
Applications:
Integrated RJ45 connector main used to :
• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,netbridge,computer,telecommunication, MODEM, HomePNA,DSL/ADSL and so on.

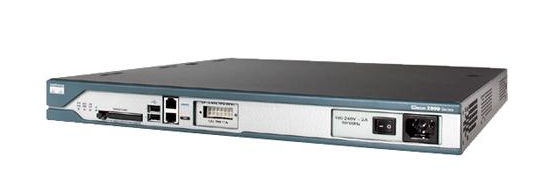

FOR example:
Competitive Advantage:
Keyouda has various types of appearance and many kinds of internal schematic products,high quality,
customer firstly ,100% test, 0 defect, short lead time are our best advantages
![]() |
