| Categories | RJ45 Magnetics |
|---|---|
| Place of Origin: | DongGuan of China |
| Brand Name: | DGKYD |
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 |
| MOQ: | 1 piece |
| Packaging Details: | Tray in Carton |
| Delivery Time: | 10 days |
| Payment Terms: | T/T, D/P, D/A, L/C, Western Union, MoneyGram |
| Supply Ability: | 100K pcs/day |

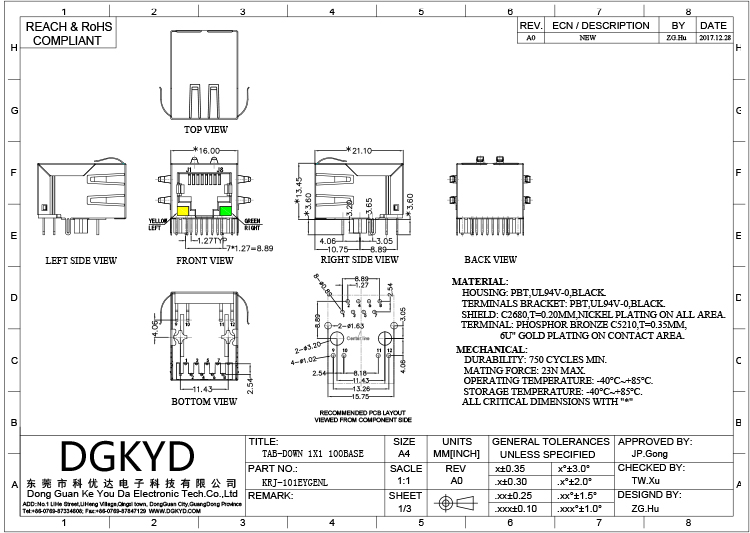

| Model Number: | KRJ-101EYGENL |
| Price: | Please contact us to get the latest price. |
| Product Name: | Magnetic Jack, Modular Jack 8/8, RJ45 |
| Performance Category: | 5, 5e |
| Component Type: | PCB Jack |
| Magnetic: | Yes |
| Company Info. |
| Keyouda Electronic Technology Co.,ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
| Part Number | KRJ-101EYGENL | Brand | DGKYD/OEM/ODM |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | Down |
| Filter | With Filter | LED Option | Yellow & Green LED |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 10/100 BASE-TX | Grounding Options | Panel Ground and PCB Ground |
| Port Configuration | Single | Number of Positions | 8 |
| Jack Configuration | 1 x 1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u/15u/30u/50u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Housing Material | PBT Polyester | Housing Color | Black |
| Operation Temperature | -40℃ to +85℃ | UL Flammability Rating | UL 94V-0 |
Our LAN discrete magnetic transformers and integrated connector modules (ICMs) are designed and manufactured to comply with IEEE802.3 and ANSI X3.263 standards. Pulse Electronics Networking BU also offers a competitive range of RoHS compliant products for local area network devices.
For example:
► Our Service
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete
Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•DGKYD Is OEM Of FOXCONN For 6 Years
•Successful Customer: PANASONIC/FOXCONN/HUAWEI/ZTE…
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:1-2 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
DGKYD Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer
Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• DGKYD Is Committed To And Expects Quality Performance From Every
Employee
• The Company Standard Is Defect-Free Products And Services
|
