0.96 Inch 30 Pin ZIF Connector OLED Display Panel
High-resolution 128×64 dot matrix OLED display with SPI/I2C
interface options, featuring ultra-thin design and ZIF connector
for easy installation.
Product Specifications
| Product | 0.96 Inch OLED Display |
| Display Color | White, Blue, Blue/Yellow Dual Color |
| Number Of Pixels | 128×64 Pixels |
| Driver IC | SSD1315 Or Equivalent |
| Display Mode | Passive Matrix |
| Drive Duty | 1/64 Duty |
| Panel Size | 24.74 × 16.9 × 1.42 (mm) |
| Active Area | 21.74 × 10.86 (mm) |
| Pixel Pitch | 0.17 × 0.17 (mm) |
| Pixel Size | 0.15 × 0.154 (mm) |
| Interface | I2C, SPI Optional |
| Pin Number | 30 Pins (Can Be Customized) |
| Viewing Direction | All Viewing Angles |
| Connection | ZIF |
| Operating Temp. | -40°C to +70°C |
| Storage Temp. | -40°C to +85°C |
| Life Time | 50,000 Hours @60cd/m² |
Product Overview
Core Features & Structure

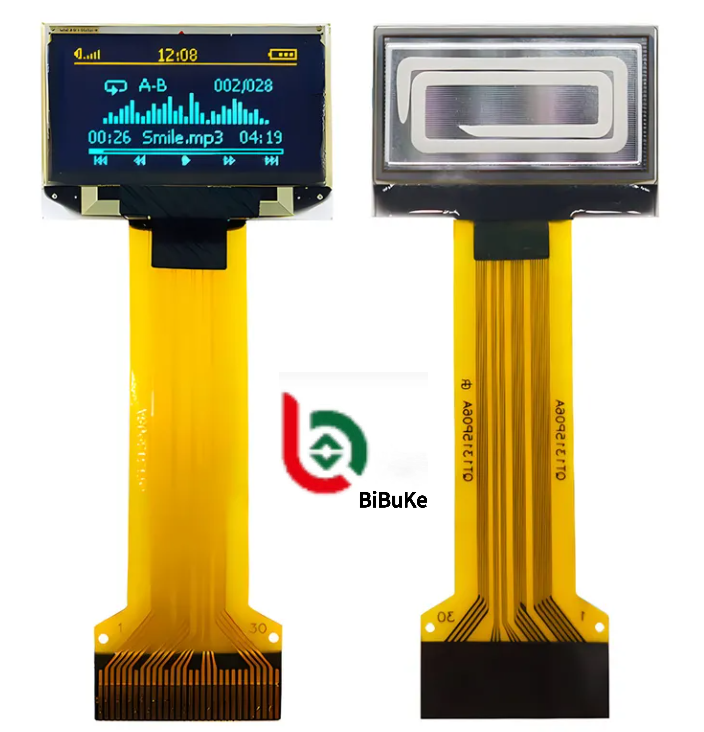

This single-color OLED dot matrix screen features COG (Chip On
Glass) packaging with a 0.96-inch diagonal and 128×64 pixel
resolution. The display utilizes SSD1306/SSD1315 driver ICs and
supports 3.3V low-voltage power supply. The 30-pin ZIF (Zero
Insertion Force) FPC connector eliminates soldering requirements,
enabling quick installation and removal for mass production and
maintenance applications.
Display Performance
OLED technology provides self-illumination without backlight,
delivering exceptional contrast with pure black levels. The display
offers wide viewing angles exceeding 160°, fast response times, and
significantly lower power consumption compared to LCD alternatives.
Available in single-color blue, white, or blue/yellow dual-color
configurations for versatile graphic display applications.
Connection Advantages
ZIF connectors allow direct FPC cable insertion with secure locking
mechanism, ensuring stable contact while eliminating short-circuit
risks associated with manual soldering.
Primary Applications
- Portable & wearable devices: smart wristbands, sports watches,
Bluetooth earphone cases, GPS locators, medical monitoring devices
- IoT & industrial control: sensor nodes, smart home panels, PLCs,
device status indicators, environmental monitoring terminals
- Maker DIY & education: Arduino/ESP32 development board displays for
electronic competitions and prototyping
- Consumer electronics: status displays for radios, MP3 players,
handheld multimeters, and oscilloscopes
- Battery-powered devices: ultra-low power consumption ideal for
outdoor and mobile applications
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is
65×30×2.8mm. Can you provide this?
Yes, we can accommodate your requirements. Please provide your
specifications or drawing. If unavailable, we can recommend
suitable standard products or customize based on your specific
needs.
This LCD is what we want, but the size is too large. Do you have
smaller options with modified display content?
For segment-type LCD modules requiring size or content
modifications, new LCD glass tooling is necessary. We can create
custom tooling to meet your exact specifications.
This LCD display is HTN type, but I need STN type. Can you
manufacture this?
Absolutely. We can modify the display type according to your
requirements.
Can you customize a new LCD module?
Yes, we specialize in custom LCD modules. Please provide your
drawing or specifications including outline dimensions, display
information, glass thickness, polarizer type, connector mode,
temperature ranges, supply voltage, viewing direction, and drive
conditions.
What is the lead time for tooling?
Tooling typically requires 15-25 days after drawing confirmation
and tooling charge payment. We provide exact timelines upon drawing
approval.
Can you provide samples for evaluation?
Yes, sample orders are available for quality verification.
What is your production lead time?
Standard products in stock ship within one day after payment. Mass
production of custom orders typically requires 15-30 days, with
earlier completion communicated in advance.
