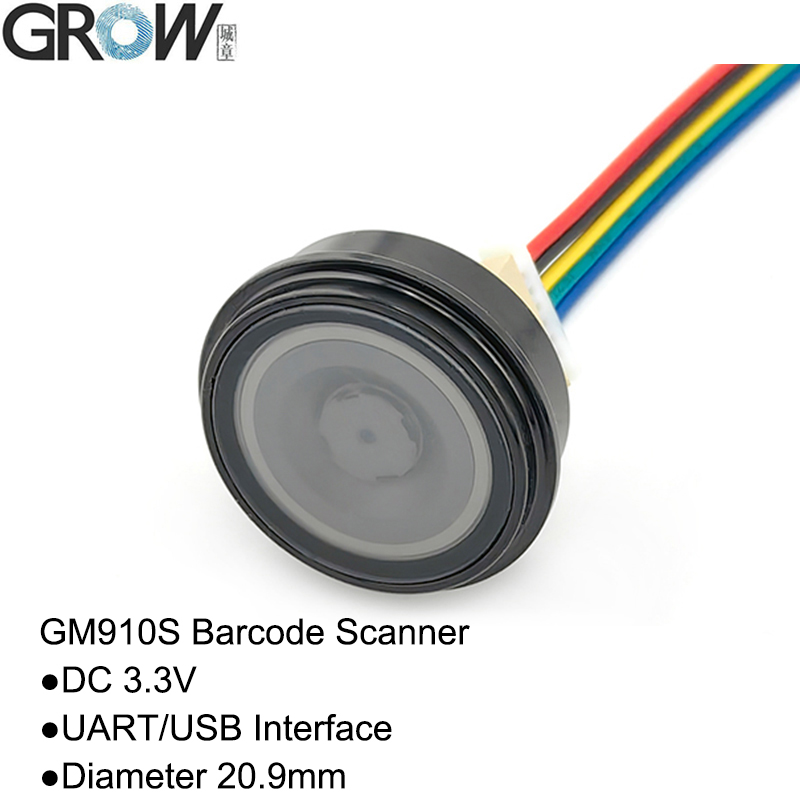

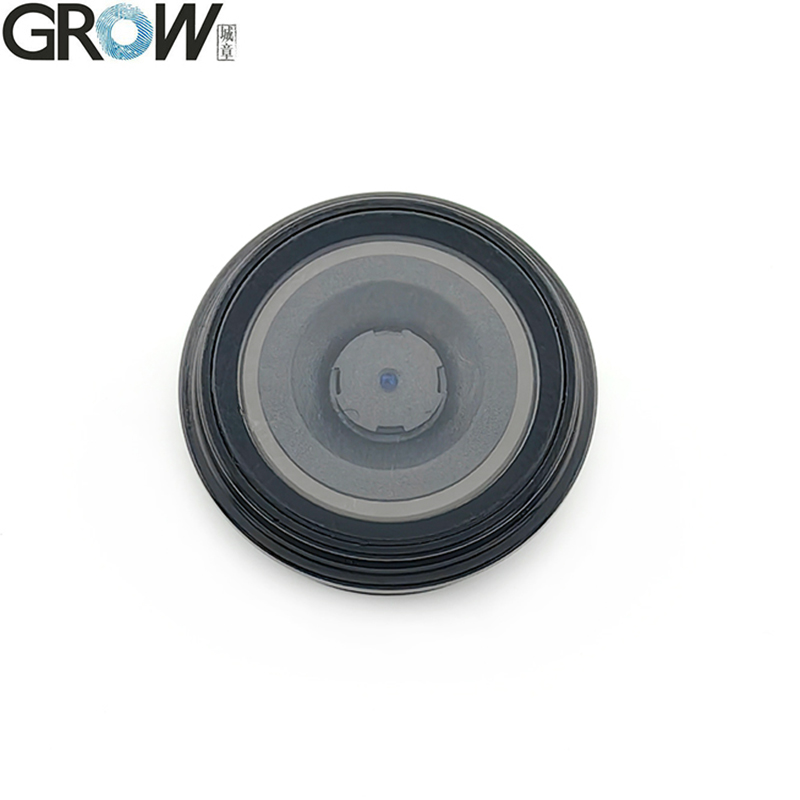

GROW GM910S Black DC3.3V USB UART 2D/1D Barcode Scanner Reader Module For Arduino Android Windows Linux Support QR Code PDF417

Categories	Barcode Scanner Module
Certification:	CE
Place of Origin:	China
MOQ:	1
Payment Terms:	T/T, PayPal
Supply Ability:	5000
Delivery Time:	Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays
Packaging Details:	Carton
Model NO.:	GM910S
Operating Voltage:	3.3V
Operating Current:	100mA(Max)
Scan Mode:	640*480
Interface:	TTL-232/USB
Resolution:	One Dimensional Code:6mil
Weight:	3.2g
Serial Baud Rate(Uart):	9600
Transport Package:	Standard Export Carton Package
Specification:	External diameter 20.9mm,Inner diameter 18.8mm, Height 7.2mm
Trademark:	GROW
Origin:	China
HS Code:	8473309000
Package Size:	13.00cm * 8.00cm * 9.00cm
Package Gross Weight:	0.100kg

Contact Now

Add to Cart

Company Info.

Hangzhou Grow Technology Co., Ltd.

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Scanning Performance	Scan Mode		640*480 CMOS
	Read Code Type	2D	QR Code, Data Matrix, PDF417,maxicode,Aztec,hanxin
		1D	EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Code 11,
			Codabar, Interleaved 2 of 5, Standard 25,MSI-Plessey
			GS1 Databar, Industrial 25, Matrix 2 of 5
	Accuracy of reading		One Dimensional Code:6mil
	Working Mode		Continuous Mode, Induction Mode, Manual Mode
	Depth of Field	Alipay	30-150mm
		Bus	50-120mm
	Contrast		≥25%
	Scanning angle		Intersection angle 360°, Elevation ± 55°, Deflection angle ± 55°
	Viewing Angle		Inclination 60°, Elevation 46°

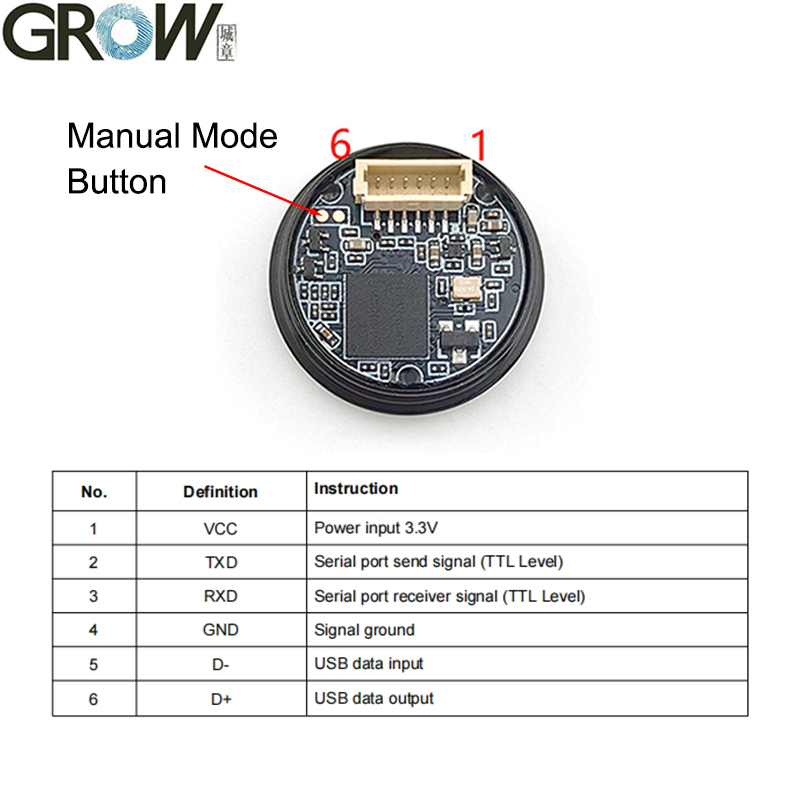

Mechanical/ Electrical Parameters	Interface		TTL-232,USB
	Dimension		External diameter 20.9mm,Inner diameter 18.8mm, Height 7.2mm
	Operating Voltage		3.3V
	Operating Current		≤100mA
Environmental Parameters	Operating Temperature		-20℃~+50℃
	Storage Temperature		-40℃~+70℃
	Operating Humidity		5%~95% (Non-Condensing)
	Environmental Light		10~100000LUX

·Provide User Manual
