Grow GM861S USB Uart Interface 1d/2D Barcode Reader Module

Categories	Barcode Scanner Module
Place of Origin:	China
Certification:	CE
MOQ:	1
Packaging Details:	Carton
Delivery Time:	Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays
Payment Terms:	T/T, PayPal
Supply Ability:	5000
Model NO.:	GM861S
Operating Current:	70mA
Scan Mode:	640*480
Interface:	Uart
Resolution:	10mil
Weight:	2g
Serial Baud Rate(Uart):	57600
Transport Package:	Standard Export Carton Package
Specification:	Diameter 20.9 (mm)
Trademark:	GROW
Origin:	China
HS Code:	8473309000
Package Size:	13.00cm * 8.00cm * 9.00cm
Package Gross Weight:	0.100kg
Interface Type:	USB Uart
Scan Element Type:	CMOS
Operating Voltage:	3.3V
Customization:	Available \| Customized Request
Shipping Cost:	about shipping cost and estimated delivery time.
Payment Method:	Initial Payment Full Payment
Currency:	US$
Return&refunds:	You can apply for a refund up to 30 days after receipt of the products.

Contact Now

Add to Cart

Company Info.

Hangzhou Grow Technology Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Grow GM861S USB Uart Interface 1d/2D Barcode Reader Module

Description

1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.

2. High-efficiency recognization and high upload speed for improving your working efficiency.

3. With buzzer for reminding you that the scanning successfully or not.

4. Compatible with UART interface.

5. Over 180 configurable options

6. Macro support replace a string in the bar code with another

7. Programmable preamble postamble and termination strings

8.Superior reading performance utilizing advanced decoding algorithms

Specifications

Parameter	Performance
Sensor	CMOS
Scan Mode	640*480

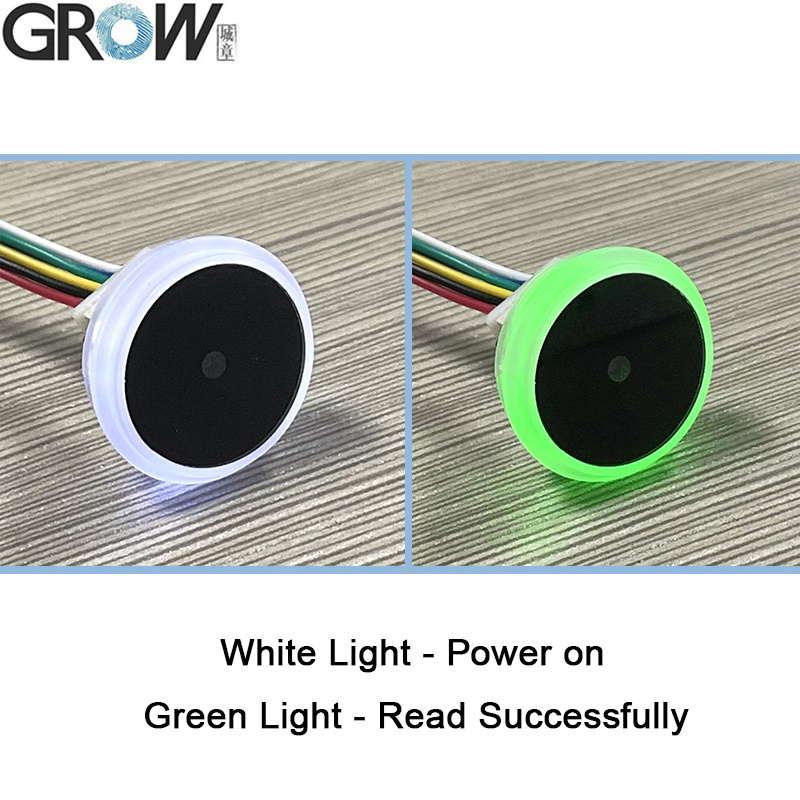

Indicator Light	Green light as read successfully
Read Code Type	1D: EAN-13, EAN-8, UPC-A, UPC-E ISSN, ISBN, CodaBar,Code 128, Code93, ITF-14, ITF-6, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 39,Code 11, MSI-Plessey, GS1 Composite,GS1-Databar (RSS)
Read Code Type	2D: QR Code, Data Matrix, PDF417
GM861S Reading Distance	5-30cm
Contrast*	>25%
Scan Angle**	Roll: 360° Pitch: 65° Yaw: 65°
Viewing Angle	67° (Horizontal) 53° (Vertical)
Accuracy of reading*	≥10mil

Mechanical/electrical Parameters:

Parameter	Performance
Interface	TTL-232/USB

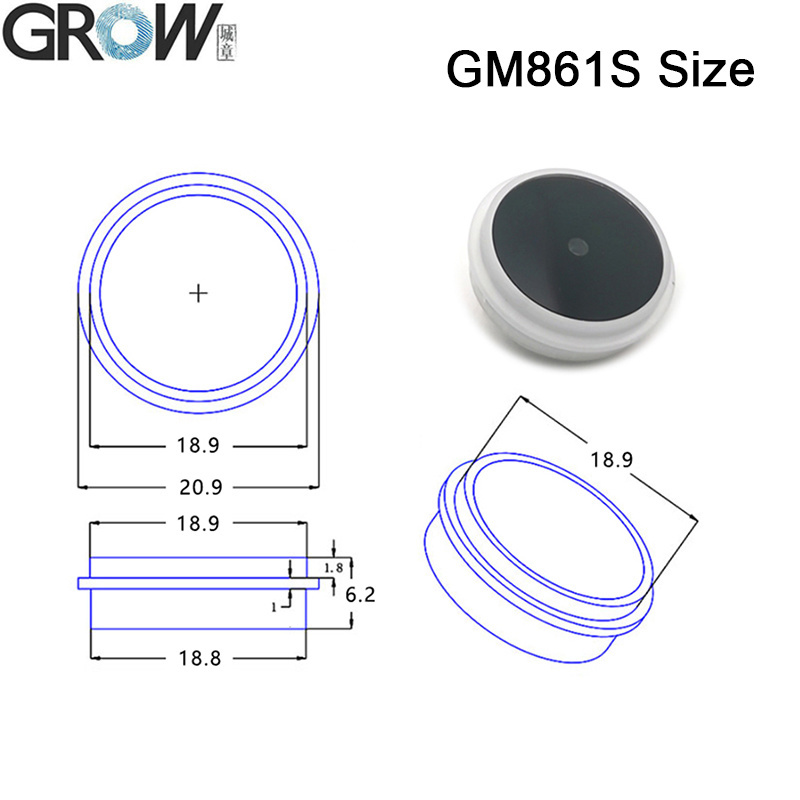

Size(mm)	Diameter 20.9mm Height 6.2mm
Weight	2 g
Prompting mode	LED Indicator
Operating Voltage	3.3V
Operation Current	70mA(Max)
Standby Current	≤6mA(Typical)
Startup time	≤250mS (Typical)

Environmental Parameters:

Parameter	Performance
Operating temperature	-20ºC~60ºC
Storage Temperature	-40ºC~+100ºC
Operating Humidity	5%~95%(Non-Condensing)
Environmental Light	Normal indoor light source
Fall	Withstand 1.2 m drop on concrete floor (50 times 1.2 m drop on concrete floor repeatedly)

Files

·Provide User Manual
·CE Certificate
