| Categories | Wall Mounted Ultrasonic Flow Meter |
|---|---|
| Brand Name: | Yunyi |
| Model Number: | Hart 475 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1PCS |
| Price: | 450~520USD/PCS |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 300pcs per week |
| Delivery Time: | 8 work days |
| Packaging Details: | Carton Packaging |
| Product Name: | handheld 475 hart field communicator |
| Connections: | Dedicated cable, long 1.1m (3.6ft) |
| Load Capacitance: | 0.22uF less |
| Display: | 128 * 64 dot matrix LCD |
| Power: | 4 1.2V rechargeable battery |
| Working temperature: | -15~55℃ |
| Warranty: | 12 Months |
| Storage temperature: | 0`50℃ |
| Company Info. |
| Xi'an Yunyi Instrument Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Ultrasonic Flow Meter for HART Communication Protocol Smart Transmitter Operatio
Description
The HART475 Field Communicator is a specialized device designed for the management and operation of smart transmitters utilizing the HART Communication protocol. It demonstrates exceptional compatibility, enabling seamless interaction with an extensive range of devices such as models 1151, 3051, EJA, ABB, and other flow-related HART protocol instruments from international manufacturers. This device facilitates comprehensive interfacing with various smart transmitters, enhancing their functionality and performance in diverse applications.
Detailed Image
Specification
Working temperature: -15~55C
Storage temperature: 0`50C
Dimension: 180x80x30(mm)
| Communication signal connections | Dedicated cable, long 1.1m (3.6ft) |
| Length: 1Km (0.62 mile) (0.75 ~ 1.25mm2) | |
| Load resistance: 250 ~ 600Ω | |
| Communication lines | Load Capacitance: 0.22uF less |
| Load Inductance: 3.3mH or less | |
| Spacing and power cord: 15cm above (to avoid parallel lines) | |
| Display | 128 * 64 dot matrix LCD |
| Controls | Touch switch (four direction keys, 19 function keys, a power switch) |
| Power supply | 4 1.2V rechargeable battery |
| Size | 180 * 80 * 54mm (L * W * H) |
| Weight | 700g |
Features
Compatible with HART equipment
Online monitoring and communication
Easy Operation.
Big LCD screen display.
Auto Diagnositc function
Low battery alarm
LCD display, easy readout.

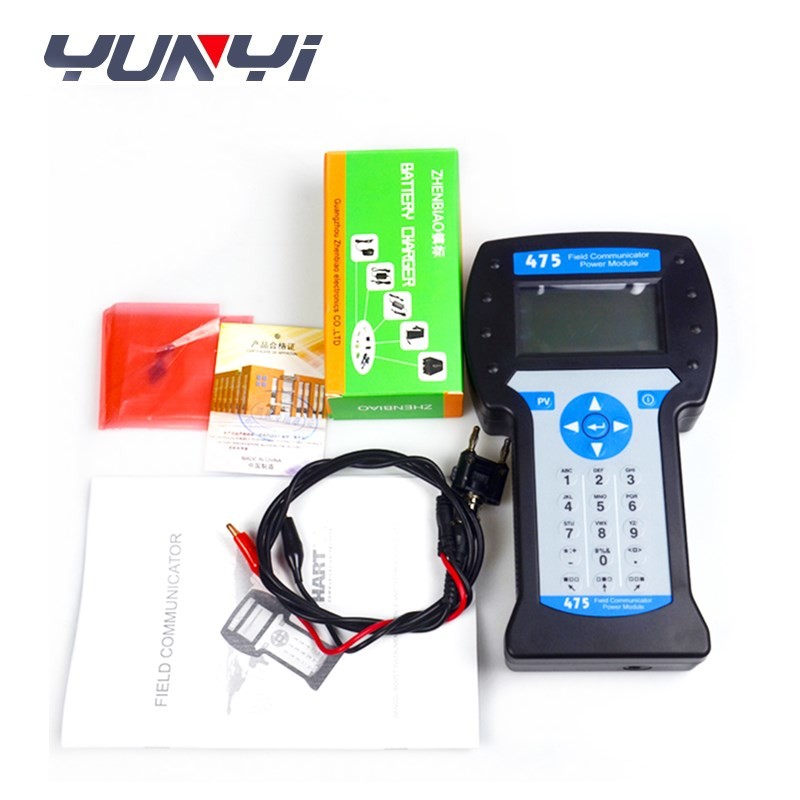

The device comes with: hart 475 field communicator
* Manual operator *1
* Carrying case *1
* charger *1
* communication cable *1
* Operation Manual*1
* 250 ohm resistor *1
|
