| Categories | Wall Mounted Ultrasonic Flow Meter |
|---|---|
| Brand Name: | Yunyi |
| Model Number: | TUF-2000B |
| Certification: | CE，ROHS |
| Place of Origin: | China |
| MOQ: | 1 |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1pcs per week |
| Delivery Time: | 5-8 work days |
| Packaging Details: | Plywood |
| Name: | Industrial Grade Dn100 Clamp On Water Flow Sensor Wall Mounted Ultrasonic Flow Meter |
| Pipe size: | DN25--6000 |
| Accuracy: | ±1% |
| Temperature unit: | -30-160℃ |
| Flowrate: | 0~±7m/s |
| Display: | 2X20 character LCD with backlight, support the language of Chinese, English, Italy, Turkish |
| Power Consumption: | 1. 5W |
| Power supply: | Dc8~36VorAc85~264V (optional) |
| Company Info. |
| Xi'an Yunyi Instrument Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

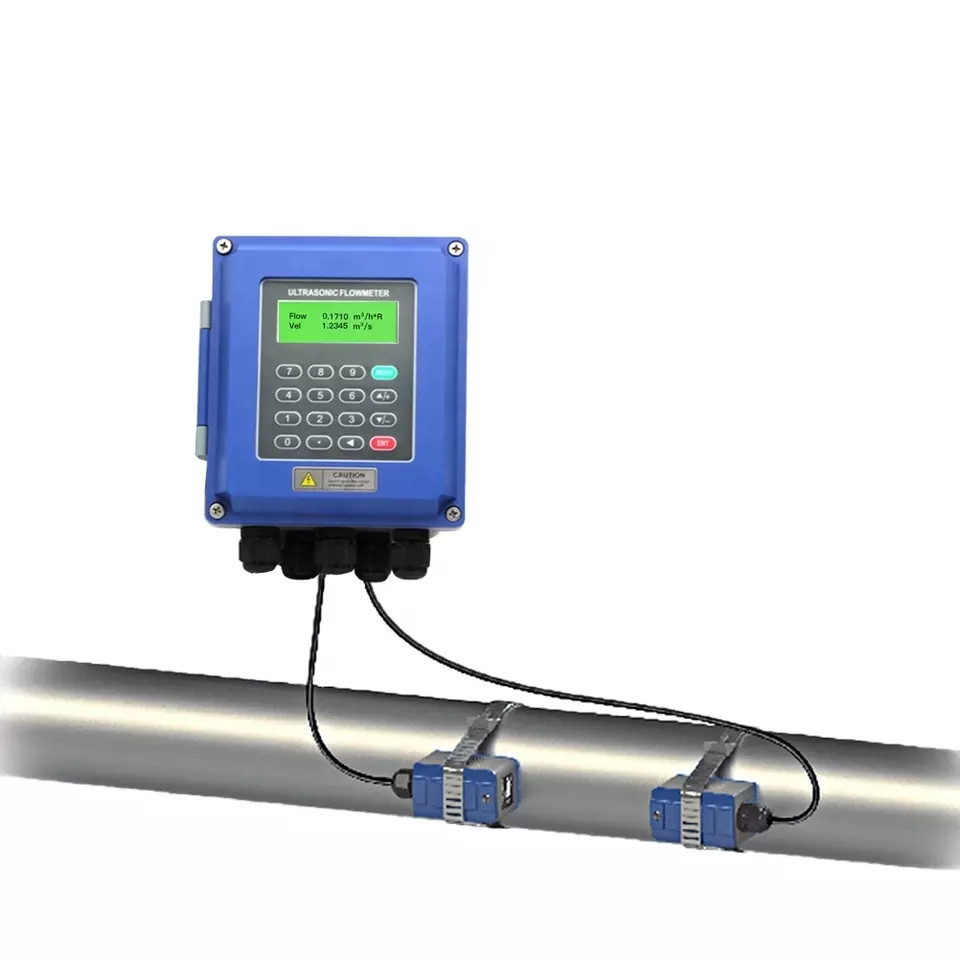

Industrial Grade Dn100 Clamp On Water Flow Sensor Wall Mounted Ultrasonic Flow Meter
Description Dn100 Clamp On Module Water Flow Sensor Wall Mounted Ultrasonic Flow Meter
The TUF2000B flowmeter boasts a broad application range, suitable for long-term online measurements across various liquid mediums. It features high-level protection with an IP67 rating for the convertor and an IP68 rating for the transducer. This device is versatile and can handle diverse liquid types such as ultra-pure liquids, portable water, chemicals, raw sewage, reclaimed water, cooling water, river water, and plant effluent. Its robust design ensures reliable performance in these environments.
Parameter Dn100 Clamp On Module Water Flow Sensor Wall Mounted Ultrasonic Flow Meter
| Items Performance & Parameter | ||
| Convertor | Principle | Transit-time ultrasonic flowmeter |
| Accuracy | ±1% | |
| Display | 2X20 character LCD with backlight, support the language of Chinese, English, Italy, Turkish | |
| Signal Output | 1 way 4~20mAoutput, electric resistance 0~1K, accuracyO. 1% | |
| 1 way OCT pulse output(Pulse width -1000ms, default is 200ms) | ||
| 1 way Relay output | ||
| Signal Input | 3 way 4~20mA input, accuracy 0. 1%, acquisition signal such as temperature, press and liquid level | |
| Connect the temperature transducer Pt100, can finish the heat/energy measurement | ||
| Data Interface | Insulate Rs485 serial interface, upgrade the flowmeter software by computer, support the MODBUS | |
| Special Cable | Twisted-pair cable, generally, the length under 50 meters: Select the RS485, transmission distance can over 1000m | |
| Pipe Installation Condition | Pipe Material | Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed |
| Pipe Diameter | 25~6000mm | |
| Straight Pipe | Transducer installation should be satisfied: upstreamlOD, downstream 5D, 30D from the pump | |
| Measuring Medium | Type of Liquid | Single liquid can transmit sound wave, such as Water (hot water, chilled water, city water, sea water, waste water, etc.); Sewage with small particle content; Oil (crude oil, lubricating oil, diesel oil, fuel oil, etc.); Chemicals (alcohol, etc.); Plant effluent; Beverage； Ultra-pure liquids, etc. |
| Temperature | ・30~16(TC | |
| Turbidity | No more than 10000ppm and less bubble | |
| Flowrate | 0~±7m/s | |
| Working Environment | Temperature | Convertor: -20~60°C； Flow Transducer: -30~160°C |
| Humidity | Convertor: 8既 RH； Flow Transducer: can measure under water, water depthW2m(tansducer sealed glue) | |
| Power Supply | Dc8~36VorAc85~264V (optional) | |
Power Consumption | 1. 5W | |
| Dimension | 132*150*85 mm(convertor) | |
I Optional Transducers |
Please choose the suitable transducer,according to different liquid pipe condition and installation method, (please refer to the measuring diagram).
| Types | Spec. | Model | Measurement Range | Temperature | Dimension | |
| Clamp on | Small Size | TS-2 | DN25-DN100 | -30 〜90°C | 45x25x32mm | |
| Medium Size | TM-1 | DN50-DN700 | -30~90°C | 64x39x44mm | ||
| Large Size | TL-1 | DN300~DN6000 | -30-90°C | 97x54x53mm | ||
| High temp clamp on | Small Size | TS-2-HT | DN25-DN100 | -30~160°C | 45x25x32mm | |
| Medium Size | TM-1-HT | DN50~DN700 | -30-160°C | 64x39x44mm | ||
| Large Size | TL-1-HT | DN300-DN6000 | -30~160°C | 97x54x53mm | ||
| Insertion | Standard | TC-1 | DN80-DN6000 | -30 〜160°C | 190x80x55mm | |
| Lengthen | TC-2 | DN80-DN6000 | -30~160°C | 335x80x55mm | ||
| Pipe | ji type | G1 | DN15~DN32 | -30~160°C | SUS304 thread connection | Please refer to detailed pipe dimensions |
| Standard | G2 | DN40-DN1000 | -30~160°C | carbon steel thread connection | ||
I Optional Temperature Transducers I
Connect the temperature transducer can finish the heat/energy measurement
| Specification | Model | Meas. Range | Temperature | Cut of water | Accuracy |
| Clampon temperature Transducer Pt100 | CT-1 | >DN50 | -40-160C | No | 100°C 土 0.8°C |
| Insertion temperature Transducer Pt100 | TCT-1 | >DN50 | -40~160C | Yes | |
| Insertion Pt100 Installation with pressure | PCT-1 | >DN50 | -40~160C | No | |
| Insertion Pt100 Small size pipe diameter | SCT-1 | <DN50 | -40~160t | Yes |
Features
Measurement accuracy 1 %.
Convertor protection class IP67, transducer protection class IP68.
Wide measurement range, pipe size from DN15mm to DN6000mm.
Three types installation method: wall mounted, DIN-rail mounted, explosion-proof box mounted.
Connect the temperature transducer can finish the heat/energy measurement
No need to cut off water, no pressure loss.
Connect clamp on temperatur transducer,can finish the heat/energy measurement
Easy for installation.
|
