DC 4.2V Fingerprint Sensor Module Standard For Android Linux Windows

Grow R301T 3000 Capacity Fingerprint Module for Android Linux Windows

Description

R301T which added fingerprint touch function.
1. Integrated image collecting and algorithm chip together, ALL-in-One
2. The flexibility to adapt to the conditions was the fingers, whether it is dry fingers, wet fingers, light texture fingerprints fingers, and old fingers, all have high recognition rate
3. The main application areas: can be embedded into a variety of end products, such as: access control, attendance, safety deposit box

Specifications

·Interface:USB 2.0 and RS232 (TTL)
·Resolution:508 DPI
·Voltage:DC 4.2-6.0V
·Fingerprint capacity:3000

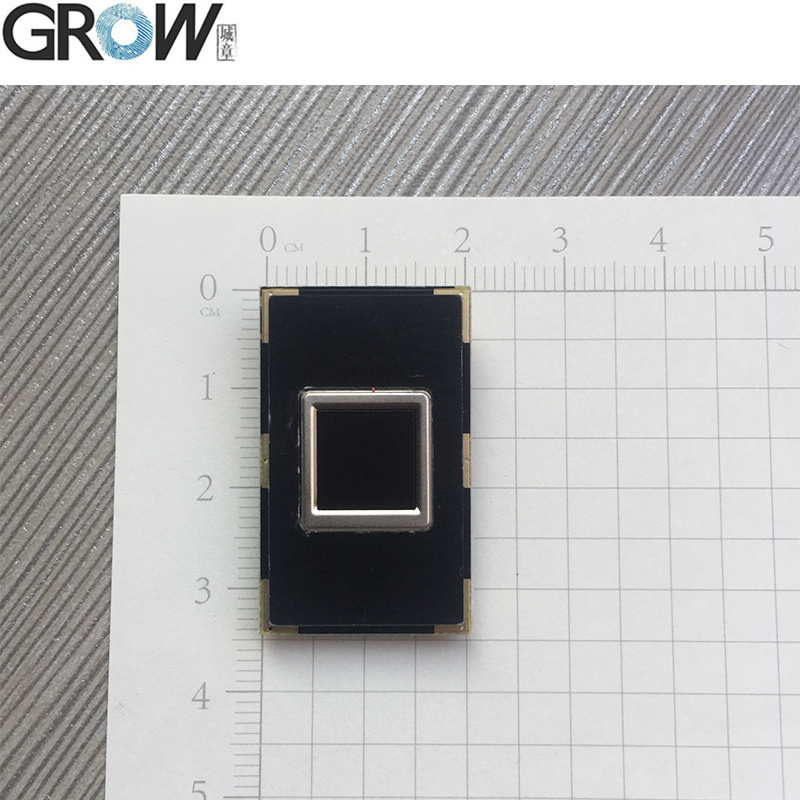

·Fingerprint reader module size:33.4 * 20.4 (mm)
·Effective collection area:10 * 10 (mm)
·ScanningSpeed:< 0.2 second
·Verification Speed:< 0.3 second
·Matching Method:1:1; 1:N
·FRR (False Rejection Ratio):≤0.01%
·FAR (False Acceptance Ratio):≤0.00001%
·Antistatic capacity:15KV
·Abrasive resistance intensity:1 million times
·Peak power consumption:60 mA
·Work environment:-20°C ---55°C
·Work Humidity:0-90%
·Communications baud rate (UART):(9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)

Files

·All fingerprint module support with Arduino, Android, Windows, Linux, .Net and so on.
·Provide Free SDK Files
·Provide User Manual
