Versatile Functionality Fingerprint Sensor Module Fast Recognition With LED Control

Grow R502-AW DC3.3V LED Control Capacitive Fingerprint Module Versatile Functionality

Description

1. Integrated image collecting and algorithm chip together, ALL-in-One
2. The flexibility to adapt to the conditions was the fingers, whether it is dry fingers, wet fingers, light texture fingerprints fingers, and old fingers, all have high recognition rate

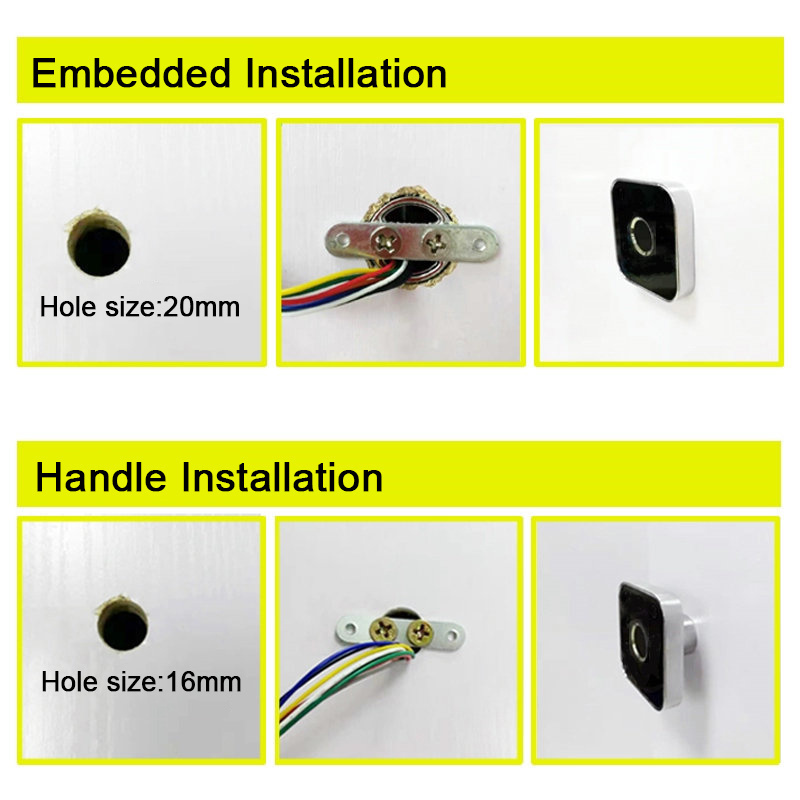

3. The main application areas: can be embedded into a variety of end products, such as: access control, attendance, safety deposit box

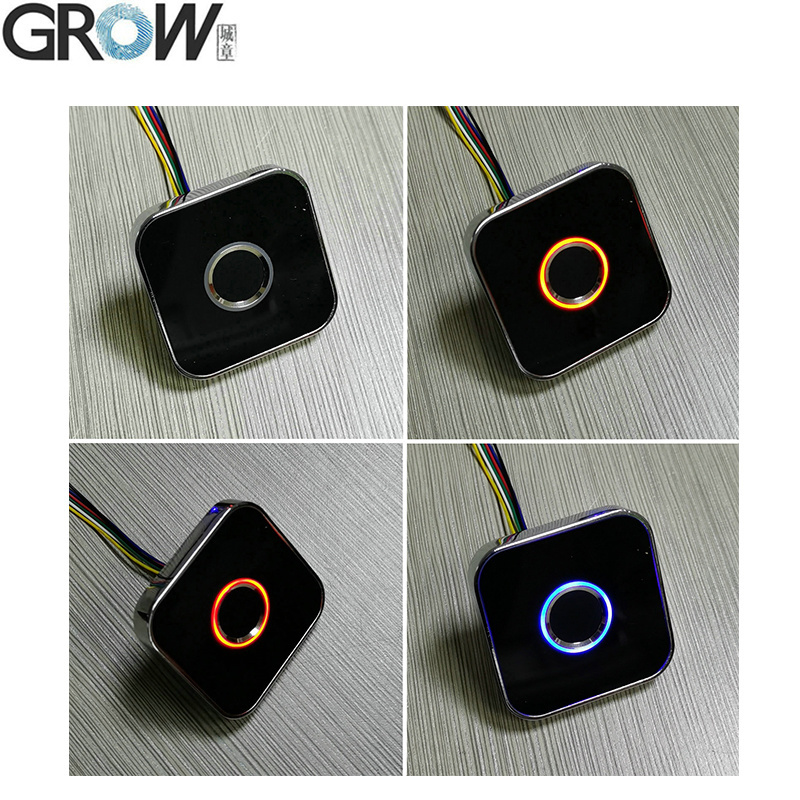

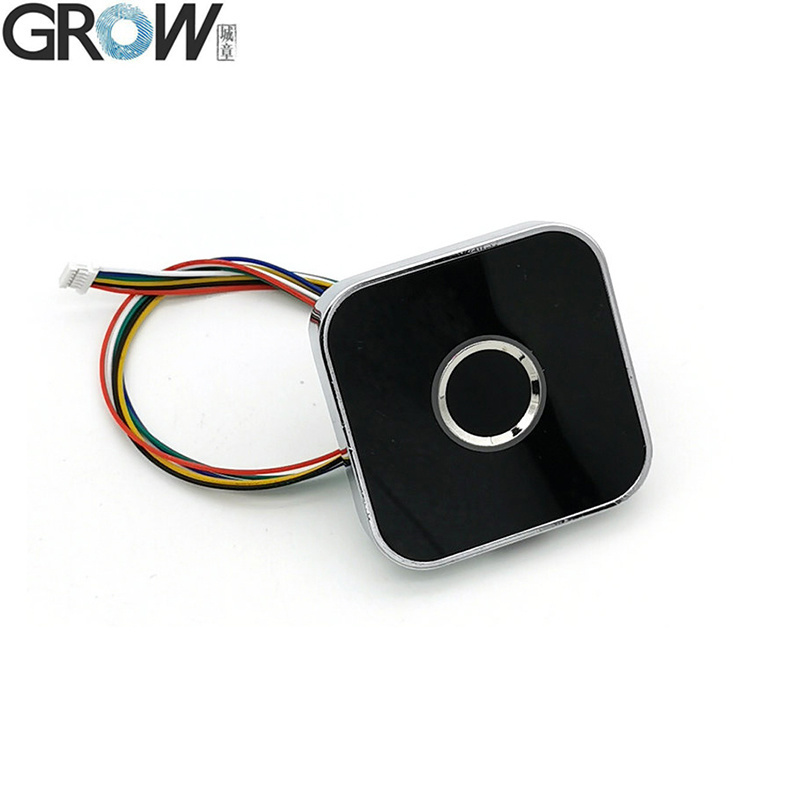

The R502-AW has circular ring indicator light that can be controlled by command, R502-A is built-into R502-AW.

R502-AW Specifications

Model	R502-AW
Type	Capacitive Fingerprint Module
Interface	UART(TTL)
Resolution	508 DPI
Voltage	DC 3.3V
Fingerprint Capacity	200
Sensing array	192*192 pixel
Working current	20mA
Standby current	Typical touch standby voltage: 3.3V, Average current: 2uA

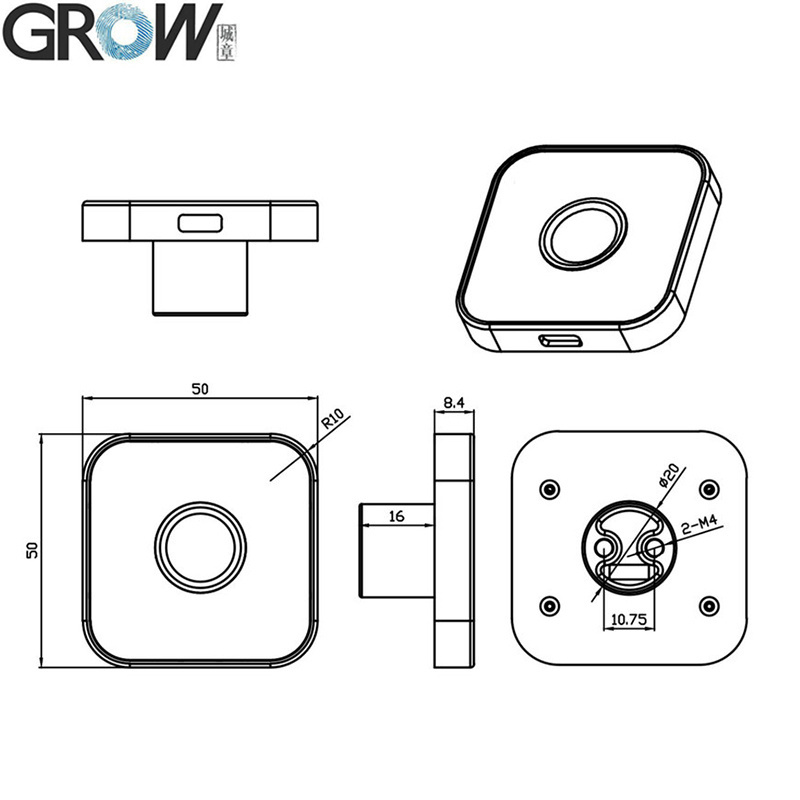

Fingerprint module external size	50*50*8.4 (mm)
Effective collection area	Diameter 15.5 (mm)
Enclosure material	Zinc alloy
Connect control board	K200-3.3/K202/K215-V1.2/K216

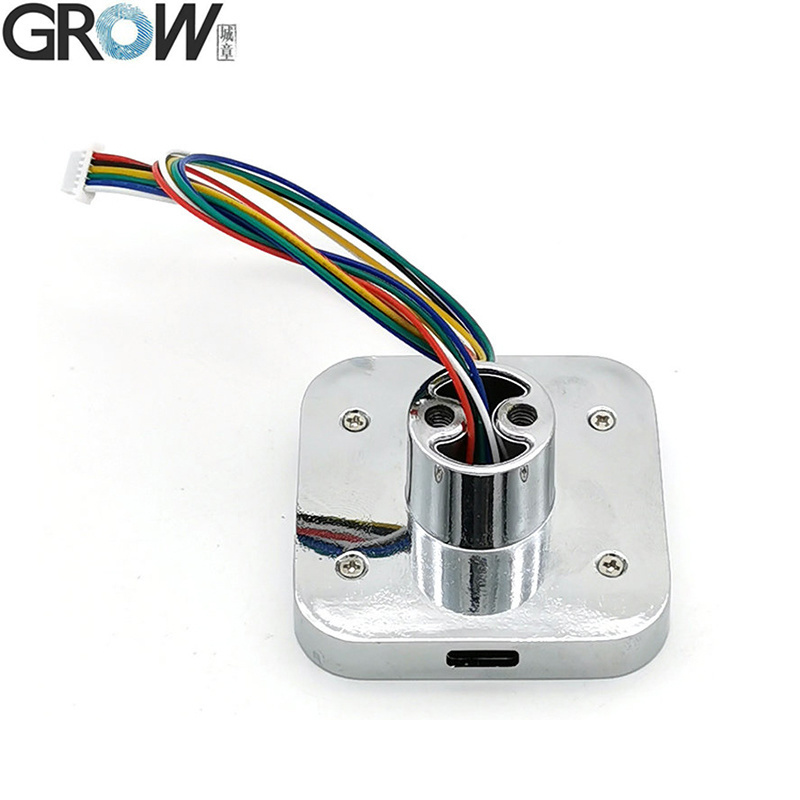

Connector	MX1.0-6Pin
LED Control	YES
LED Color	Purple and Blue and Red
Scanning Speed	< 0.2 second
Verification Speed	< 0.3 second
Matching Method	1:1; 1:N
FRR	≤1%
FAR	≤0.001%
Work environment	-20C ---60C
Work Humidity	10-85%
Anti-static capacity	15KV
Abrasive resistance intensity	1 million times
Communications baud rate (UART):	(9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)

Files

·Provide Free Reference SDK Files for Arduino, Android,.Net,Windows and so on.
·Provide User Manual

You can download the R502-AW user manual from this website link:
https://hzgrow.en.made-in-china.com


R502-AW Operation display video on Youtube: https://youtu.be/Q82Zg4iFHOA


If need SDK files,pls contact us.
