| Categories | Photovoltaic Junction Box |
|---|---|
| Brand Name: | BOKANG |
| Model Number: | PV-BK325A; PV-BK325A-Z |
| Certification: | TUV; UL |
| Place of Origin: | China |
| MOQ: | 200 pcs |
| Price: | Negotiable |
| Payment Terms: | Negotiable, L/C, T/T |
| Supply Ability: | As required |
| Delivery Time: | As required |
| Packaging Details: | Carton size of 600*400*200mm; Pallet size of 1200*1000*1150mm |
| Certifications: | TUV, UL |
| Insulation Material: | PPE |
| Operating Temperature: | -40℃~+85℃; -40℃~+90℃ |
| Flame Rating: | V-0(TUV); 5VA (UL) |
| Contact Material: | Copper With Tin-plated |
| Rated Voltage: | 1500 VDC |
| Waterproof Structure: | Potting Sealant |
| IP Rating: | IP65/IP68 |
| Company Info. |
| Wuhu Bokang Machinery & Electronic Co, Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

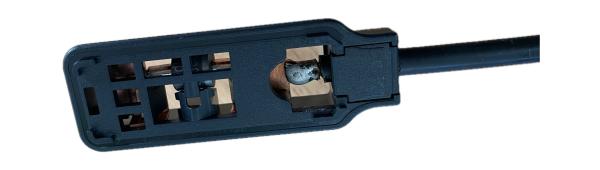

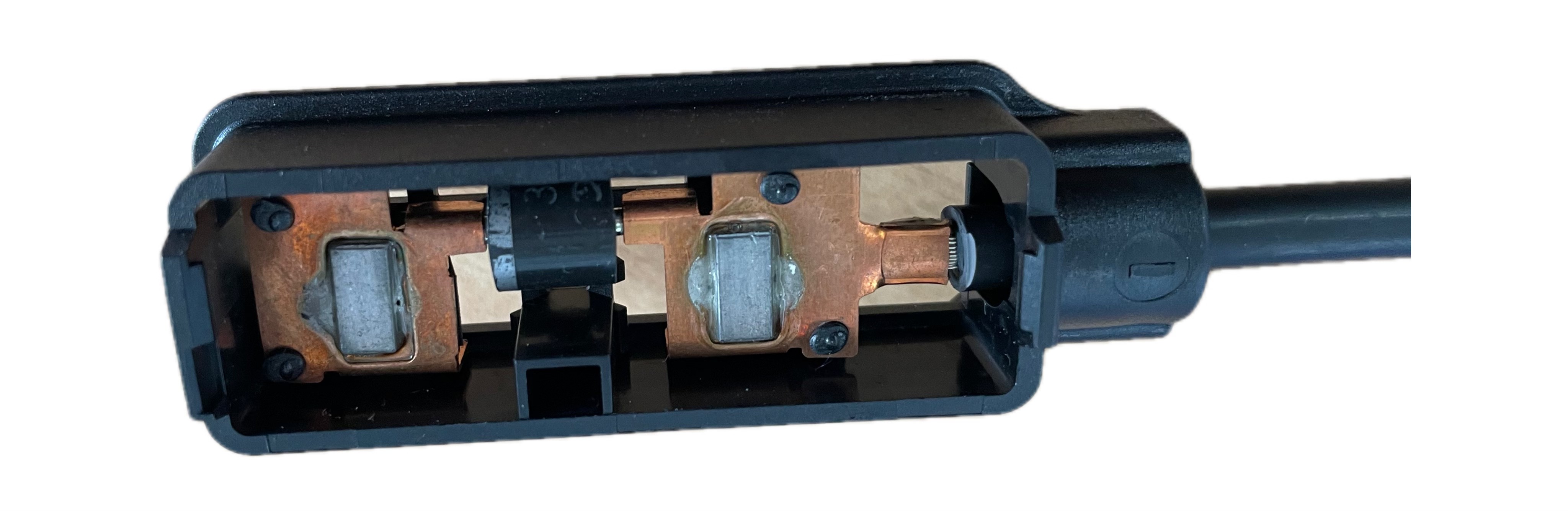

This Photovoltaic Junction Box is designed for use with solar energy systems. It features a waterproof structure with potting sealant to provide safety protection for the components inside. The operating temperature range is -40℃~+85℃; -40℃~+90℃, making it suitable for use in a range of environments. It is rated for a voltage of 1500 VDC and has been certified by TUV and UL. The adaptable connector is PVGZX1500/EVO2/MC4.The contact material used in the junction box is copper with tin-plated finish that offers excellent conductivity and corrosion resistance.
The adaptable connector options include PVGZX1500/EVO2/MC4, which makes it compatible with a wide range of solar panels and inverters. This versatile feature ensures that the junction box can be easily integrated into any solar energy system.
The junction box has a safety class of Class II, which means that it has double insulation to provide an extra layer of protection against electric shock. This safety feature ensures that the system remains safe for both the user and the environment.
In summary, the Photovoltaic Junction Box is an essential component for any solar energy system. It features a waterproof structure with a potting sealant and IP65/IP68 protection rating. The contact material used is copper with tin-plated finish, and the adaptable connector options include PVGZX1500/EVO2/MC4. The safety class is Class II, which provides an extra layer of safety protection against electric shock. With these features, the Photovoltaic Junction Box ensures a safe and reliable connection between the solar panels and the inverter, making it an ideal choice for any solar energy project.
| Adaptable Connector: | PVGZX1500/EVO2/MC4 |
| Operating Temperature: | -40℃~+85℃; -40℃~+90℃ |
| Insulation Material: | PPE |
| Safety Class: | Class II |
| Waterproof Structure: | Potting Sealant |
| Wire Size: | 4mm² (TUV); 12AWG (UL) |
| Flame Rating: | V-0(TUV); 5VA (UL) |
| Contact Material: | Copper With Tin-plated |
| IP Rating: | IP65/IP68 |
| Certifications: | TUV, UL |
|
