IP65 Photovoltaic Junction Box

Categories Photovoltaic Junction Box
Brand Name: BOKANG
Model Number: Customizable
Certification: TUV UL
Place of Origin: China
MOQ: 100 pcs
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: Meet customer demands
Delivery Time: As required
Packaging Details: Carton size of 600*400*200mm; Pallet size of 1200*1000*1150mm
Certifications: TUV, UL
Wire Size: 4mm² (TUV); 12AWG (UL)
Contact Material: Copper With Tin-plated
Insulation Material: PPE
Safety Class: Class II
Operating Temperature: -40℃~+85℃; -40℃~+90℃
Rated Voltage: 1500 VDC
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

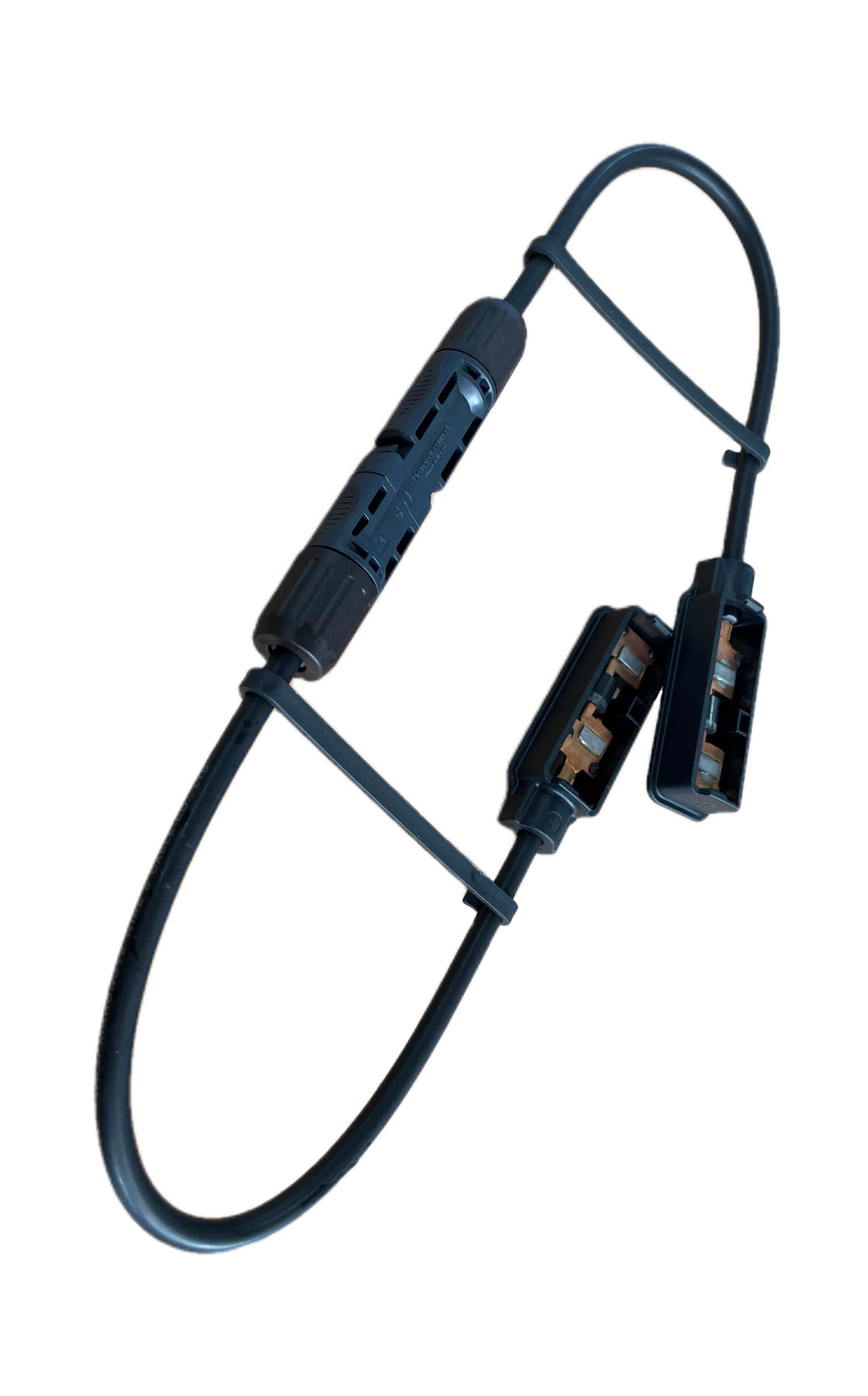

IP65 Photovoltaic Junction Box

IP65/IP68 Photovoltaic Junction Box with Copper / Tin plated Contacts


Description:


Our Photovoltaic Junction Box has been certified by TUV and UL, ensuring the safety and high-quality of our product. The junction box comes with a connector type suitable for solar energy applications, making it easy to connect and install in solar panel systems. The TUV certified junction box can accommodate 4mm² wires, while the UL certified box can handle 12AWG wires, giving you flexibility in your solar panel system design. Our junction box can withstand extreme temperatures, with a minimum operating temperature of -40℃ and a maximum of +85℃ (TUV) or +90℃ (UL). Our Photovoltaic Junction Box is designed and manufactured with the highest standards, ensuring reliability and durability for long-term use.
Quick Details:

Wire Size: 4mm² (TUV); 12AWG (UL)

Certifications: TUV, UL

Waterproof Structure: Potting Sealant

Safety Class: Class II

Rated Voltage: 1000V DC (TUV); 600V DC (UL)

Rated Current: 15A (TUV); 20A (UL)

Rated Temperature: -40°C to +85°C

Flame Class: UL94-V0


Technical Parameters:


Item

Description
SafetyClass II
Rated Voltage1500 VDC
Rated Temperature- 40 °C to +85°C
Flame ClassUL94-V0
Rated Current15A
Wire Size4mm2
