| Categories | Photovoltaic Junction Box |
|---|---|
| Brand Name: | BOKANG |
| Model Number: | PV-BK325A; PV-BK325A-Z |
| Certification: | TUV; UL |
| Place of Origin: | China |
| MOQ: | 200 pcs |
| Price: | Negotiable |
| Payment Terms: | Negotiable, L/C, T/T |
| Supply Ability: | As required |
| Delivery Time: | As required |
| Packaging Details: | Carton size of 600*400*200mm; Pallet size of 1200*1000*1150mm |
| Safety Class: | Class II |
| Rated Voltage: | 1500 VDC |
| Insulation Material: | PPE |
| Certifications: | TUV, UL |
| Wire Size: | 4mm² (TUV); 12AWG (UL) |
| Flame Rating: | V-0(TUV); 5VA (UL) |
| Operating Temperature: | -40℃~+85℃; -40℃~+90℃ |
| Adaptable Connector: | PVGZX1500/EVO2/MC4 |
| Company Info. |
| Wuhu Bokang Machinery & Electronic Co, Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

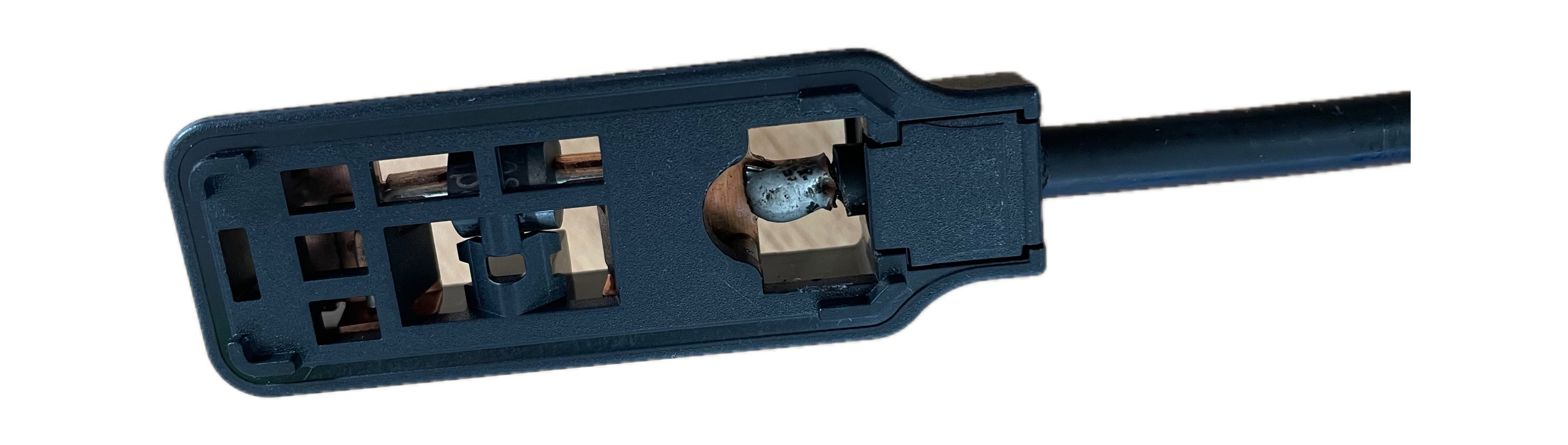

BOKANG Photovoltaic Junction Box PV-BK325A/A-Z is a high-quality product that is made in China. The product is certified by TUV and UL, which means it meets international standards of excellence. This product is perfect for solar panel installations as it provides a safe and reliable connection between the solar panels and the inverter.
The junction box is made with high-quality materials that guarantee durability, efficiency, and safety. The box features a robust insulation material that protects the electrical components inside from harsh weather conditions, dust, and moisture. The insulation material also ensures that there is no electrical shock risk to the user.
The Photovoltaic Junction Box is designed to work with a wire size of 4mm² (TUV) and 12AWG (UL) to ensure smooth power transmission. The contacts in the box are made of copper with tin-plated to offer high conductivity and corrosion resistance. The junction box has a safety class of Class II, which means it offers extra protection against electric shock.
The Photovoltaic Junction Box has a rated voltage of 1500 VDC, which means it can handle high voltage and power loads. The box has undergone rigorous testing and meets international safety standards. It has received certifications from TUV and UL, ensuring its quality and reliability.
The Photovoltaic Junction Box is an essential component for any solar energy system. Its high-quality materials, robust insulation material, and safety features make it an ideal choice for demanding environments. It is designed to withstand harsh weather conditions, dust, and moisture, making it perfect for outdoor installations.
| Operating Temperature | -40℃~+85℃; -40℃~+90℃ |
| Flame Rating | V-0(TUV); 5VA (UL) |
| Wire Size | 4mm² (TUV); 12AWG (UL) |
| Insulation Material | PPE |
| Safety Class | Class II |
| Rated Voltage | 1500 VDC |
| Adaptable Connector | PVGZX1500/EVO2/MC4 |
| Waterproof Structure | Potting Sealant |
| Certifications | TUV, UL |
| IP Rating | IP65/IP68 |
| Insulation Material | PPE |
|
