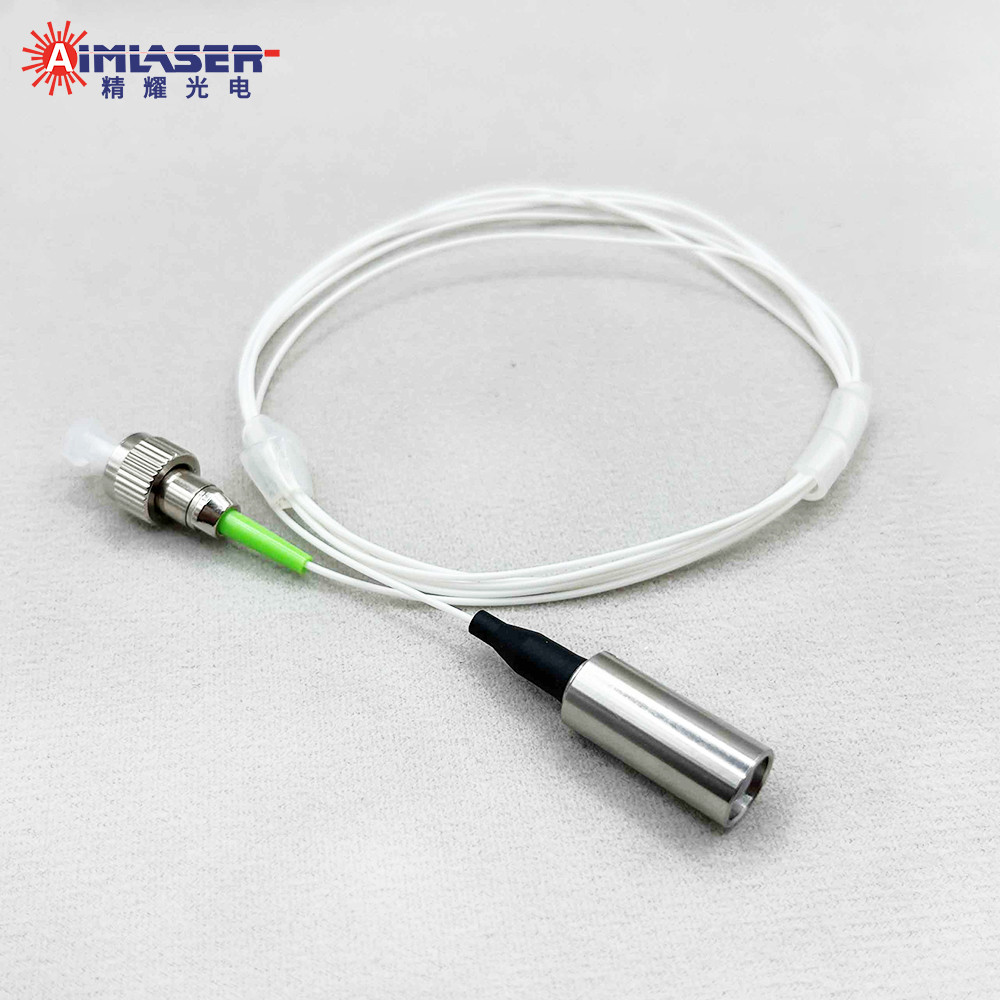

405nm-1550nm Aspheric Lenses Collimator with Tilted End Fiber

Aspheric Lenses Collimator

AIMLASER provides Aspheric Lenses Collimators with Fiber, offering wavelengths including 405nm, 450nm, 520nm, 635nm, 780nm, 850nm, 980nm, 1064nm, 1310nm, and 1550nm. Customization options are available to meet specific requirements, such as waist beam size, divergence angle, and connector types (e.g., FC/PC, FC/APC, SMA905).

The Aspheric Lenses Collimator with Fiber features a compact design with an angled fiber tail and a precisely adjusted aspheric lens, ensuring high Gaussian beam quality and excellent collimation properties. Both the lens and fiber surfaces are coated with anti-reflective coatings, significantly reducing back reflection at the output end and minimizing optical link noise.

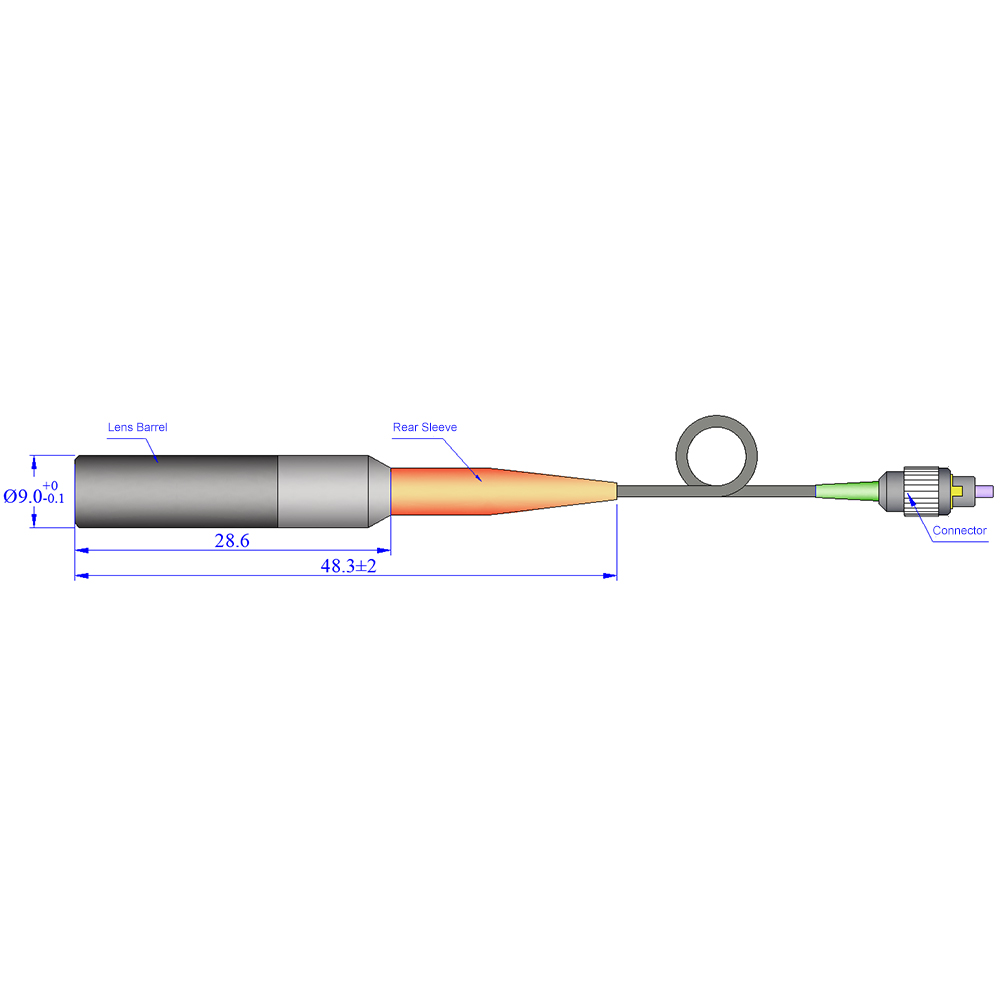

● Long-focal-length collimators utilize a bent housing design to correct the output beam deviation caused by the angled fiber tail.
● Short-focal-length collimators, where the output beam deviation from the angled fiber tail is negligible, feature a straight-through housing design.

​

Specifications

Applications

The 405nm, 450nm, 520nm, 635nm, 780nm, 850nm, 980nm, 1064nm, 1310nm, and 1550nm Aspheric Lenses Fiber Collimator is used in:

● Optical Communication: Fiber coupling and beam collimation.
● Laser Systems: Precision cutting, welding, and marking.
● Sensing and Detection: Fiber sensors, LiDAR, and rangefinders.
● Spectroscopy: Raman, fluorescence, and absorption.

Trade Terms

1) Payment: T/T, PayPal, Western Union, etc.

2) Shipment: FedEx, DHL, UPS etc.

3) Delivery Time: 5 - 20 days.

4) Shipment Terms: FOB Xi'an China.

5) Warranty: One year.

Why Choose Us

A. Over 20 years of laser experience.

B. Large-scaled facility 4,500sq.m2 and over 180 professional staff.

C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.

D. Strictly following ISO9001:2008 quality system.

E. Product conforms to FDA, IEC and GB standards.

F. Strong design and production capabilities, partners of famous brands.

Fiber Collimator Factory Show

Hot Tags: 405nm 450nm 525nm 635nm 650nm 780nm 850nm 980nm 1064nm 1310nm and 1550nm Fiber Optic Collimator, Aspheric Lenses Collimator with Fiber, China, factory, supplier, manufacturer, provider, purchase, wholesale, customized, quotation, buy, bulk, sample

Founded in 2012, Aiming Laser Technology Co., Ltd. (briefly named AimLaser) manufactures semiconductor laser diode modules and coaxial fiber coupled lasers with wavelength 405nm to 1064nm and output power 0.4mW to 20W for various OEM instrument applications.

Our main products are  mini laser modules, red laser modules, green laser modules, blue laser modules, violet laser modules, IR laser modules, RGB Free Space and RGB Fiber Coupled Laser Modules, TTL modulation laser modules, Analogue modulation laser modules, dot laser modules, line laser modules, cross line lasers, 360 degree circle line laser modules, Powell lens uniform line laser modules, machion vision laser source, pigtailed laser diodes, Single-Mode and Multi-Mode Coaxial Fiber Coupled Laser Modules, Fiber Collimators, Corning light diffusing fiber laser sources, laser line generators, laser beam expanders ; and also gun laser shooting accessories like dry fire training red laser bullet, 780nm IR laser trainer, 850nm IR laser training cartridges or laser simulators, electronic laser targets, universal laser bore sights, rail mounted laser sights, pistol red dot sight, rifle red dot sight and Holographic Red Dot Sight etc.

Featured with compact size, low power consumption, high reliability and stability designs, our lasers have been successfully used in a wide range of applications like industrial laser positioning, laser marking, laser alignment tools, laser survey equipment, laser measuring tools, 3D laser scanner, laser level meters, laser distance meters, machine vision system, smart camera, laser profiles, laser detecting equipment, medical laser instrument, laser barcode scanner, laser gas detectors, laser aiming devices, golf laser rangefinders, miniature laser tools, law enforcement and military defense devices etc.

By full compliance with ISO9001:2008, FDA IEC.GB standard, we are assuring our customer with high quality products and timely delivery on the basis of our rich industry experience, good technology, innovative R&D engineering team and world-class manufacturing facility.

Share your ideas with us, our experienced skillful and dedicated technical staff will help you to solve your design problems and help to customize products for your special applications.
