635nm 1~200mW 105um Red Pigtailed Optical Fiber Coupled Laser Diode Module with FC/PC Connector

Product Description

AIMLASER offers customized single-mode and multimode pigtailed coaxial fiber-coupled laser diode modules. Fiber core diameters include 3.5µm, 4µm, 6.5µm, 9µm, 50µm, 62.5µm, 105µm, 125µm, 170µm, and 200µm. Wavelengths range from 405nm, 450nm, 520nm, 635nm, 650nm, 780nm, 850nm, 980nm, to 1064nm, with output powers from 1mW to 500mW. Connectors such as FC, PC, ST, and SMA905 are available, along with customizable fiber lengths.

With a compact design and low power consumption, our fiber-coupled lasers feature specially designed LD drivers tailored to customer requirements. PD feedback can be added to improve laser reliability and stability. These laser modules with fiber pigtail are widely used in medical devices, biomedical instruments, scientific research, and industrial equipment.

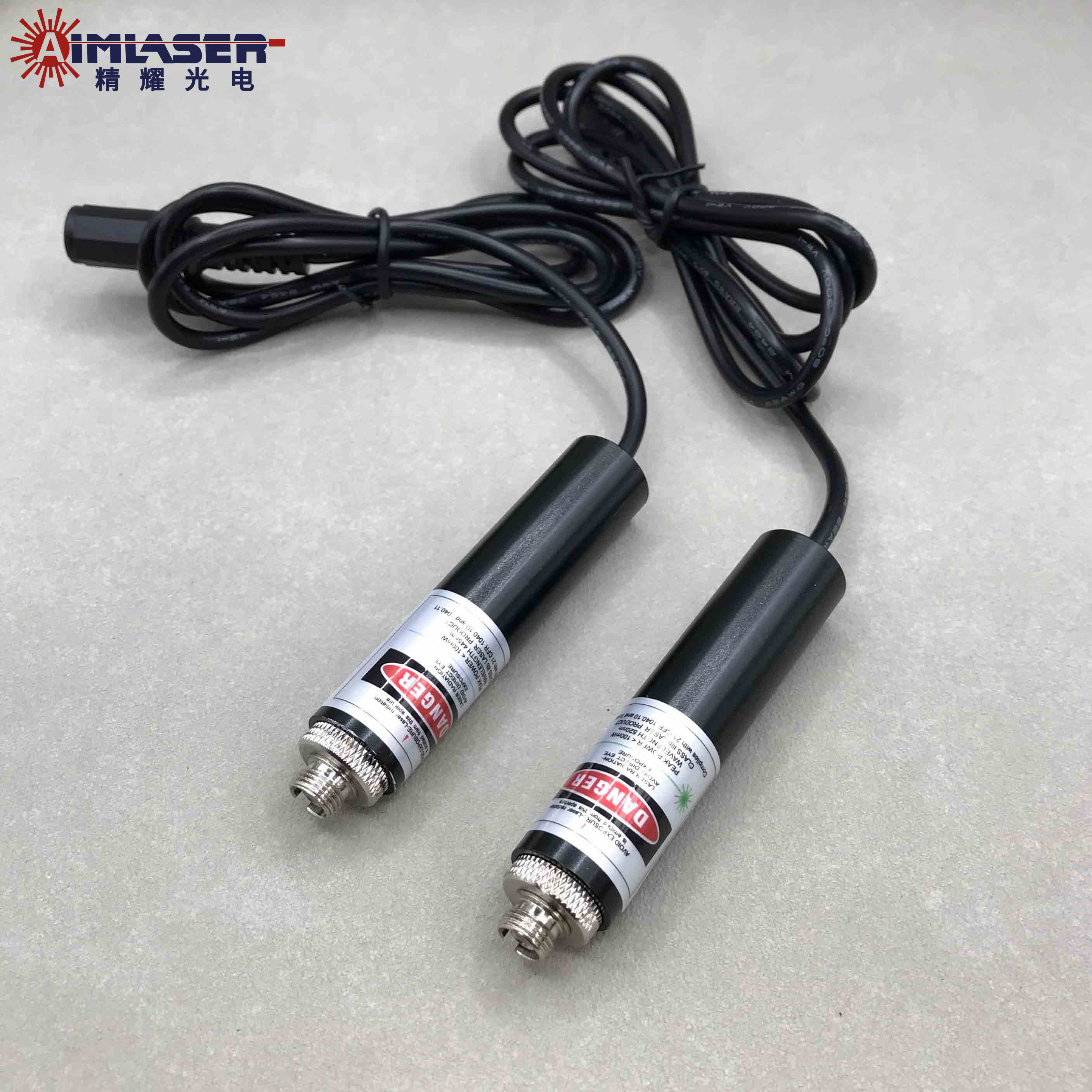

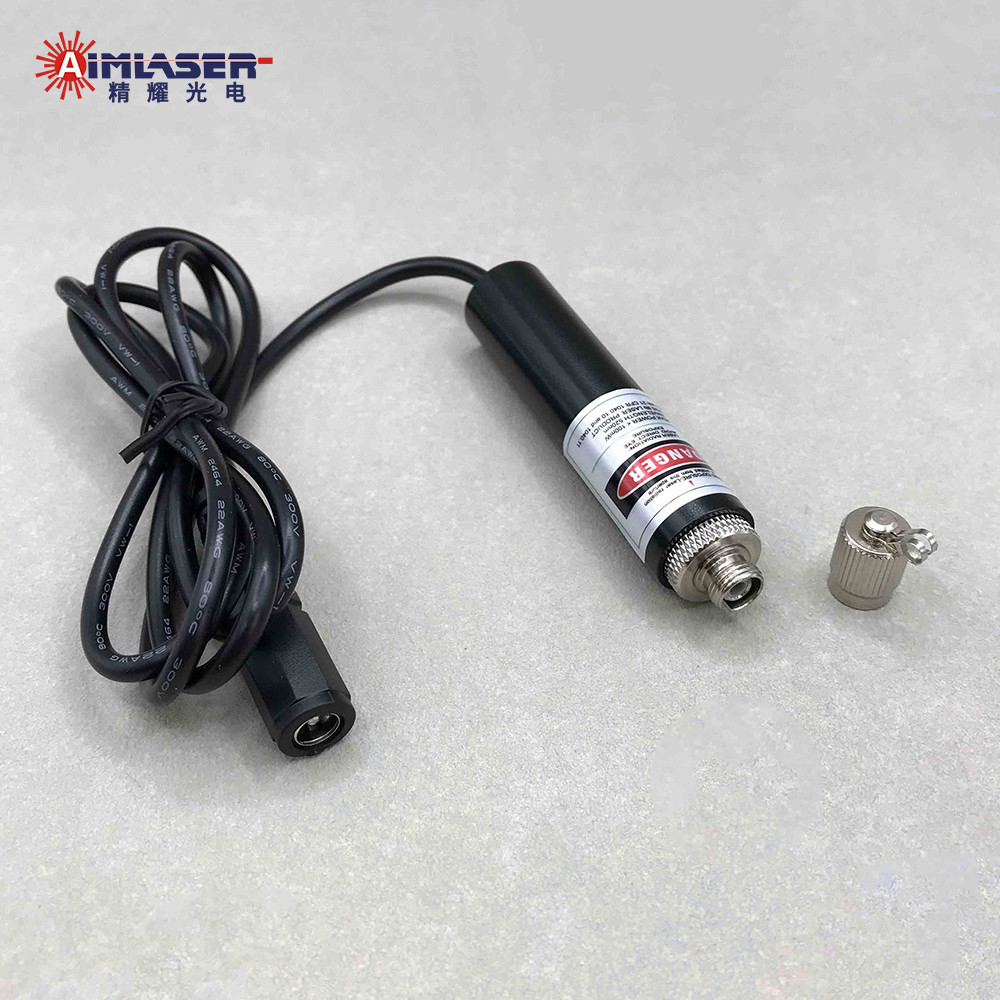

The AM635MF20FC is a pigtailed fiber-coupled laser diode module with an FC/PC receptacle optical output. It emits 635nm red laser light with a maximum power of 20mW. The laser is efficiently coupled into the fiber, ensuring high precision, efficiency, and flexibility, with a coupling efficiency of ≥ 70%.

Specifications

Features

1. Compact size ,low power consumption and long lifetime.

2. Pluggable design, easy to use.

3. High output stability, wide operating temperature.

4. High efficiency, coupling efficiency ≥ 70%

5. Specially designed LD drivers and PD feedback.

6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips.

7. Conform to ROHS, FDA, IEC, SGS standards.

8. Provide a ONE year warranty and customized solutions.

Applications

The 635nm 20mW 105um Red Multimode Coaxial Pigtailed Fiber Coupled Laser Diode Modules are used in:

● Biomedical: Used in photodynamic therapy, fluorescence excitation, and optical coherence tomography.
● Industrial: Applied in alignment tools, barcode scanning, and quality inspection systems.
● Scientific Research: Used as a light source for optics and photonics experiments.
● Display and Entertainment: Utilized in laser light shows and holographic displays.
● Sensing and Metrology: Used in distance measurement, gas sensing, and environmental monitoring.

Trade Terms

1) Payment: T/T, PayPal, Western Union, etc.

2) Shipment:FedEx, DHL, UPS etc.

3) Delivery Time: 5 - 20 days.

4) Shipment Terms: FOB Xi'an China

Why Choose Us

A. Over 20 years laser experience.

B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.

C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.

D. Produced in our ISO9001:2008 quality system factory.

E. Product conforms to FDA, IEC and GB standard.

F. Strong design and production capabilities, partners of famous brands.

FAQ

Q1: Do you support customized solutions?

A: Yes, we can customize your required wavelength, output power, fiber core, numerical value, working voltage and connectors etc.

Q2: Do you provide power supply adapter and fiber?

A: Yes, we can provide them according to your requirements.

Q3: How can I ensure the products have no quality issues?

A: The products are produced in our ISO9001:2008 approved factory, and certified by FDA, IEC, and GB. All products undergo internal testing before shipping and come with a one year warranty. We respond proactively to any quality issues.
