| Categories | Lithium Polymer Battery Cell |
|---|---|
| Certification: | CE, RoHS, MSDS, Un38.3 |
| Brand Name: | RESKY |
| Model Number: | LP505573 |
| Place of Origin: | China |
| MOQ: | 10pcs |
| Price: | Negotiable |
| Payment Terms: | Western Union,T/T |
| Supply Ability: | 50000pcs/day |
| Delivery Time: | 7-10days |
| Packaging Details: | Paper box |
| Shape: | Square Battery |
| Rechargeable: | Chargeable |
| Nominal Capacity: | 2500mAh |
| Charging Current: | 0.2c |
| Continuous Discharging Current: | 0.5c |
| Max Discharging Current: | 1c |
| Weight: | 45g |
| Connector: | Jst, Molex.... |
| Color: | Silver, Blue PVC |
| Specification: | 5*55*73mm |
| Company Info. |
| Shenzhen Resky Electronics Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

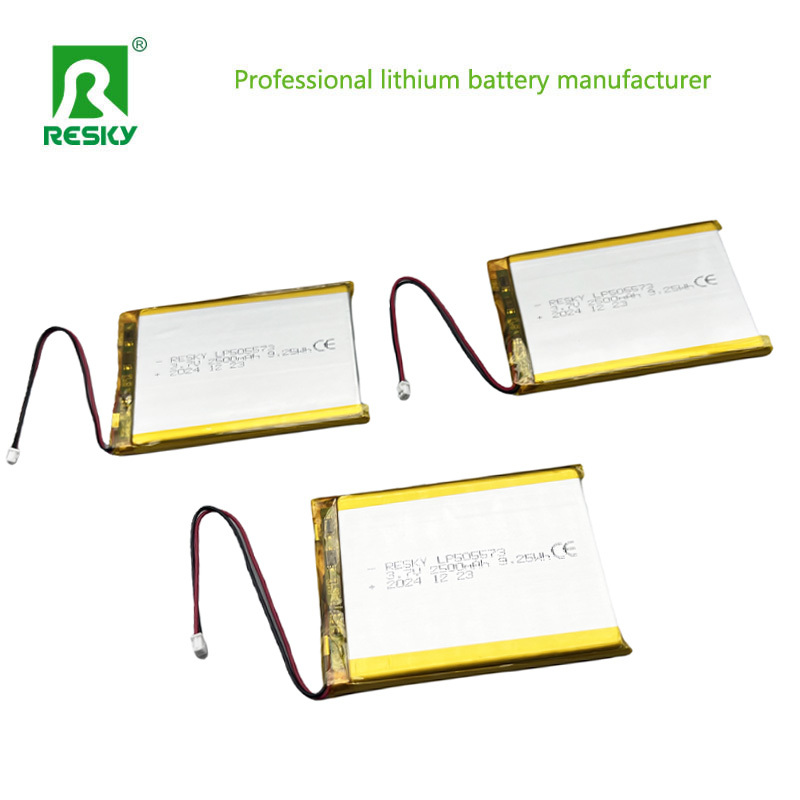

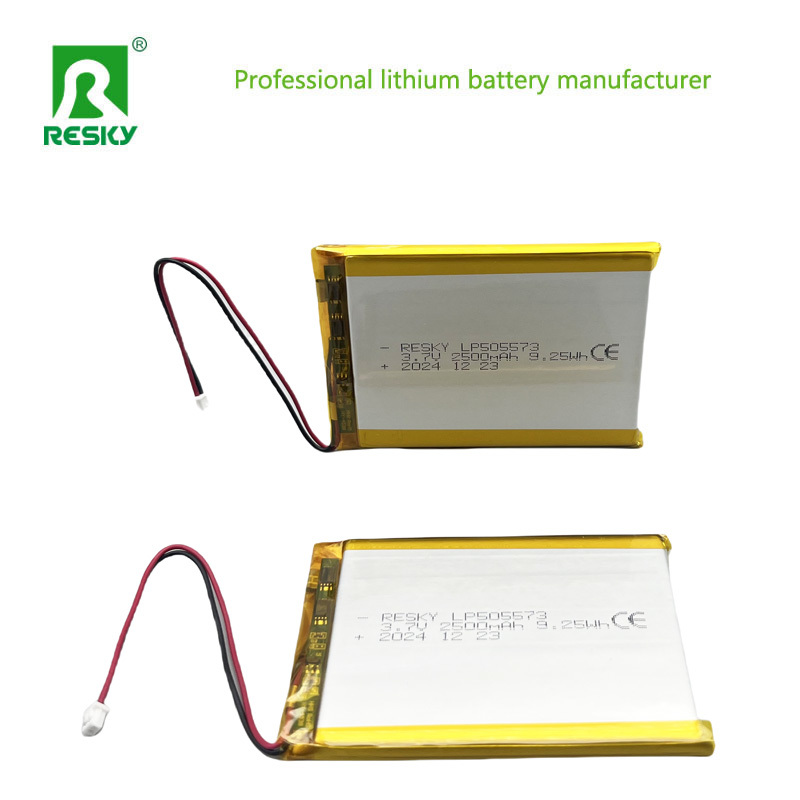

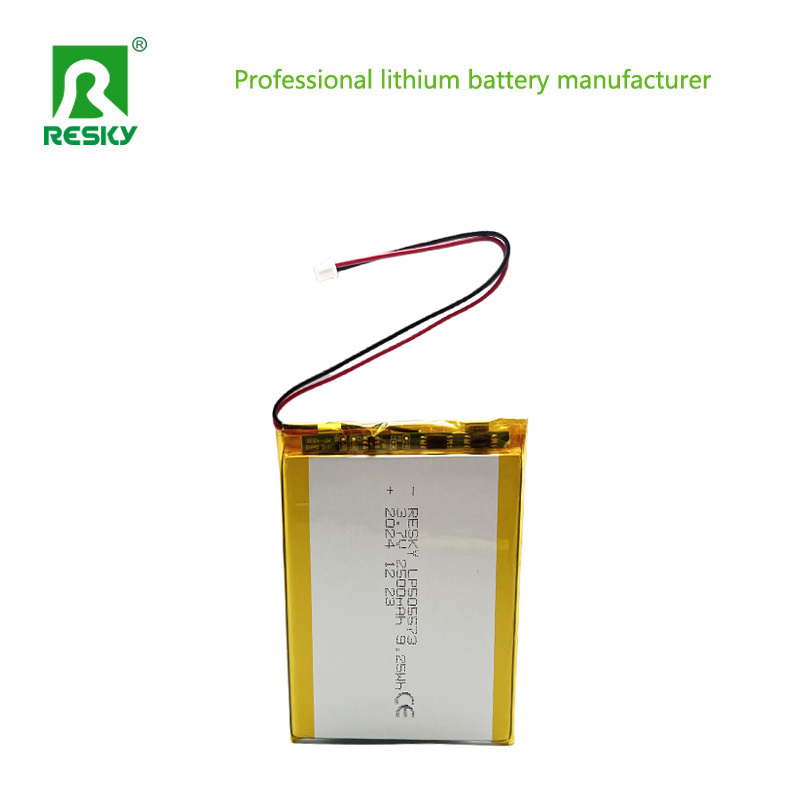

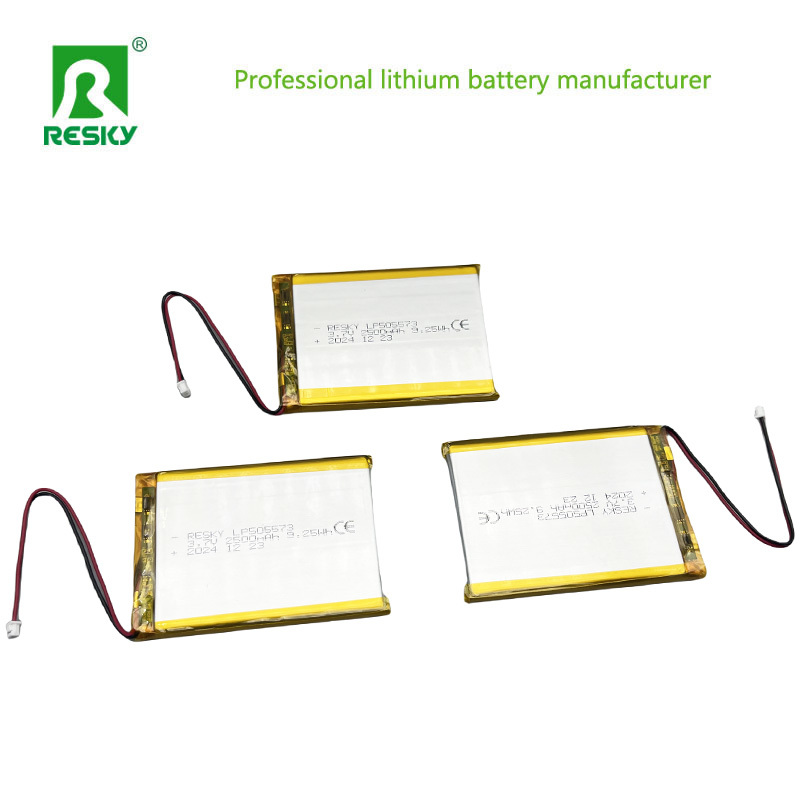

Lithium Polymer Battery Cell 7.4V 505573 2S 2500mAh For Smart Phone
| NO. | Items | Specifications |
| 1 | batteries | 3.7v 2500mah lipo battery |
| 2 | Charge voltage | 4.2V |
| 3 | Nominal voltage | 3.7V |
| 4 | Nominal capacity | 2500mAh 0.2C Discharge |
| 5 | Charge current | Standard Charging:0.2C Rapid charge: 1.0C |
| 6 | Standard Charging method | 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C |
| 7 | Charging time | Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.) |
| 8 | Max.charge current | 0.5C |
| 9 | Max.discharge current | 1.0C |
| 10 | Discharge cut-off voltage | 2.5V0.25V(0.2C) |
| 11 | Operating temperature | Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C |
| 12 | Storage temperature | -10°C~ +45 °C |
| 13 | Dimension | Length:73±0.5mm (not including tabs) Width:55±0.5mm Thickness:5±0.2mm |
| 14 | Drop Test | The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage |
| 15 | cycle time | ≥800times |
High Energy Density: One of the most significant benefits is their
high energy density. This means they can store more energy in a
relatively smaller and lighter package compared to traditional
nickel-cadmium (NiCd) or nickel-metal hydride (NiMH) batteries. For
example, in portable electronics like smartphones and tablets, it
allows for sleeker designs and longer operating times without
adding excessive weight.
Flexible Form Factor: Lipo batteries can be manufactured in various
shapes and sizes. They can be custom-designed to fit into tight
spaces, which is crucial for wearable devices such as smartwatches
and fitness trackers where space is at a premium.
Low Self-Discharge Rate: They have a relatively low self-discharge
rate. Once charged, they can hold their charge for a longer period
compared to some other rechargeable batteries. This is beneficial
for devices that are not used frequently but need to be ready to
operate when required.
High Discharge Capability: In applications like RC models and
electric vehicles, lipo batteries can provide high discharge rates.
This enables faster acceleration and better performance as they can
deliver power quickly to meet sudden demands.
