Rechargeable Lithium polymer battery cell 503759 3.7V 1200mAh for Dog Trainer
| NO. | Items | Specifications |
| 1 | batteries | 3.7v 1200mah lipo battery |
| 2 | Charge voltage | 4.2V |
| 3 | Nominal voltage | 3.7V |
| 4 | Nominal capacity | 1200mAh 0.2C Discharge |
| 5 | Charge current | Standard Charging:0.5C Rapid charge: 1.0C |
| 6 | Standard Charging method | 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C |
| 7 | Charging time | Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.) |
| 8 | Max.charge current | 1.0C |
| 9 | Max.discharge current | 1.0C |
| 10 | Discharge cut-off voltage | 2.5V0.25V(0.2C) |
| 11 | Operating temperature | Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C |
| 12 | Storage temperature | -10°C~ +45 °C |
| 13 | Dimension | Length: 59±0.5mm (not including tabs) Width: 37±0.5mm Thickness:5±0.2mm |
| 14 | Drop Test | The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage |
| 15 | cycle time | ≥500times |
Application:
Consumer Electronics:
Smartphones and Tablets: Li-poly batteries are the primary power source for these devices, enabling long battery life and compact designs.
Wearable Devices: From smartwatches to fitness trackers, Li-poly batteries provide the necessary power for extended use without adding significant weight.
Cameras: Digital cameras, especially mirrorless and DSLR models, often use Li-poly batteries to support high-energy operations like continuous shooting and video recording.
Medical Devices:
Portable Health Monitors: Devices such as heart rate monitors, blood glucose meters, and portable ECG machines often incorporate Li-poly batteries for reliability and patient convenience.
Implantable Devices: In some cases, Li-poly batteries are used in implantable medical devices like pacemakers, though stringent safety and reliability standards must be met.
Pictures:
|

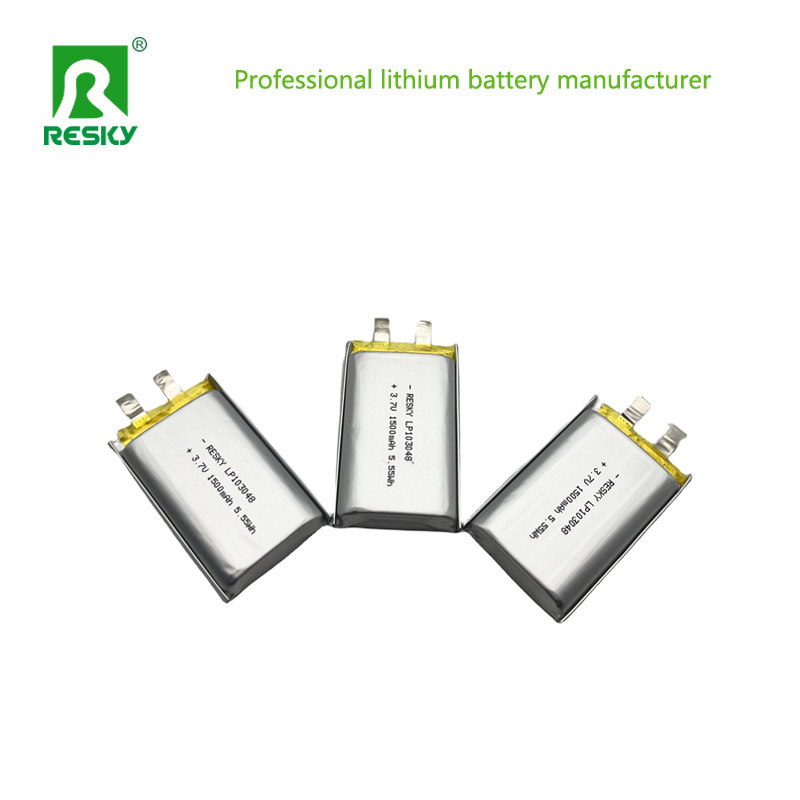

Lithium Polymer Battery Cell 3.7V 1500mAh 103048 For Digital Device
