Name: GRANDGLOW 15000W 96VDC TO 220V 380VAC 3 PHASE 15KW PURE SINE WAVE OFF GRID SOLAR POWER INVERTER
Brand: Grandglow
Price: 992.00 USD

Home > Lighting Bulbs & Tubes >

GRANDGLOW 15000W 96VDC TO 220V 380VAC 3 PHASE 15KW PURE SINE WAVE OFF GRID SOLAR POWER INVERTER

Categories	Solar Power Inverter
Network:	OFF GRID
Customized support:	YES
Place of Origin:	Hubei, China
Brand Name:	Grandglow
Model Number:	GrandGlow15000T
Type:	DC/AC Inverters
Output Type:	Triple
Output Current:	23A*3
Output Frequency:	50Hz/60Hz
Size:	400X700X840MM
Weight:	143KG
Certificate:	CE
Output Voltage:	380VAC/220VAC
Maximum Discharge Current:	163A
Input State Grid Voltage AC:	380V/220V
Wave form:	PURE SINE WAVE
Noise:	<55dB
Efficiency:	>85%
AC Charger:	AVAILABLE
Summit Power:	150%
THD:	<3%
Packaging Details:	Wooden Case on Plywood Pallet
Port:	SHANGHAI
Supply Ability:	1000 Piece/Pieces per Month
Price:	$992.00 - $1,140.00/pieces

Contact Now

Add to Cart

Company Info.

Shanghai Hongzhu power Technology Co., LTD

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

GRANDGLOW 15000W 96VDC TO 220V 380VAC 3 PHASE 15KW PURE SINE WAVE OFF GRID SOLAR POWER INVERTER

GRANDGLOW 15000W 96VDC TO 220V 380VAC 3 PHASE 15KW PURE SINE WAVE OFF GRID SOLAR POWER INVERTER

Company Information

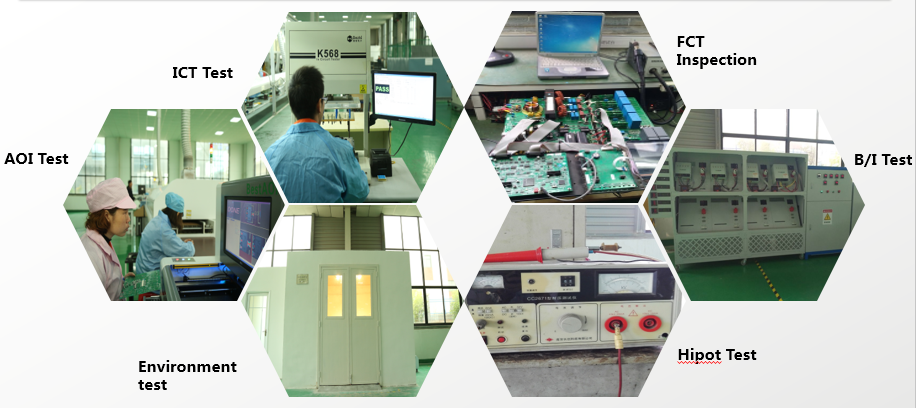

Perfect Quality Control

Product Description

> Dual CPU single chip intelligent control technology, microcomputer control, humanized design
> Output high quality pure sine wave AC power, with strong load capacity, wide application range
> With perfect protection function, greatly improve product reliability
> Adopt CPU centralized control and SMT technology
> Stable operation, low distortion, no noise, no pollution, strong resistance to load impact, simple operation,

long lifetime
> Panel menu LCD/LED display working status
> Three-stage charging function with battery type selection (optional)
> Battery overvoltage, undervoltage protection
> State grid automatic conversion (optional)
> It can automatically resume working after the undervoltage or overvoltage change to normal.
> High conversion efficiency, high instantaneous power and low load loss
> It can achieve the connection of generator and external battery.

ODM&OEM Available

In the past three years,the number of R&D projects involved was 15,and the results of the project were transformed into more than 40 models.Among them,2 were filled with domestic blanks and the overall technology reached the international level,10 were in the domestic leading or advanced level,and 16 were obtained National Patent.R&D projects are as follows:

PV Module grade micro inverter system		Photovoltaic inverter energy storage system avoiding frequent charge and discharge switching
On grid/Off grid PV power generation switching system.		Connection control structure applied to the DC side of a photovoltaic inverter
Intelligent control system for household photovoltaic power generation		Photovoltaic inverter system with low input and high gain DC conversion
Charge controller for photovoltaic power generation unit		Good stability household microgrid system
Grid-tie inverter device for distributed photovoltaic power generation system		Solar power teaching demonstration model
Current regulation system for photovoltaic inverter AC source		Energy storage inverter system with anti-DC reverse connection function
Solar photovoltaic power generation monitoring system for wireless communication		Bidirectional DC converter for battery energy storage system
Dust source monitoring device for photovoltaic power generation

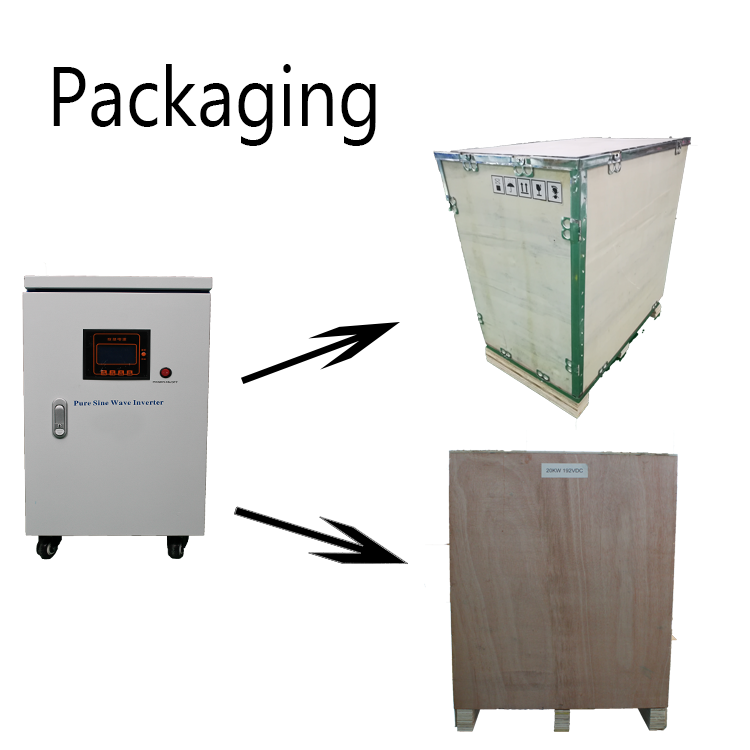

Packaging & Shipping

How we pack our solar inverter?

Packing:1 pcs/carton.bag with outer carton or as customized
Shipping by express,sea or air

Successful Cases

FAQ

Q1: How to install the solar system?

A:Tell us your demand,then we will help designing it.

Q2:How about the delivery time?

A:7-30 days after payment.

Q3:What's the warranty about the products?

A:1 Year,can be extended.

Q4:Do you have any certificate?

A:Yes,we got CCC, CE,SAA,TUV,etc.You can find the detailed picture in our website.

Jessie Xue

Email: sales3(@)grandsolar.cn

Mob./Wechat: +86 18062923557

Whatsapp: +86 15258852509
Tel:+86-714-6366111
Fax:+86-714-6368000
http://www.grandglow.net/
278, Zhongshan Avenue, Huangjinshan, Huangshi, Hubei Province, China 435000

Specialized in solar inverter and related products design for over 10 years.
