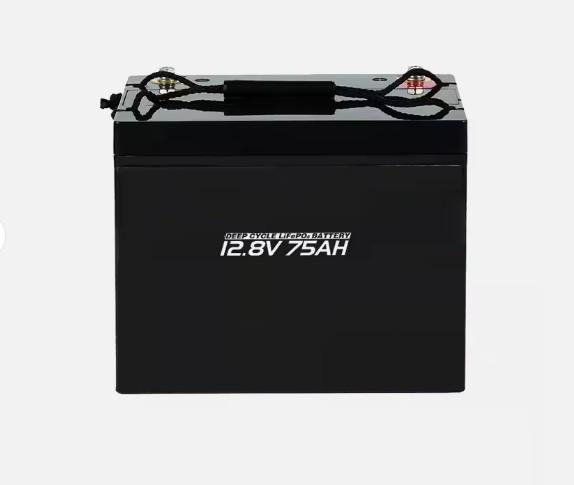

12V/24V 75AH Lifepo4 Battery For Solar Storage System And Electric Transportation Power Supply

Categories 12V/24V Battery
Brand Name: TINKO/OEM
Model Number: KTQG - 12075
Certification: CE/ROHS/MSDS/UN38.3
Place of Origin: China
MOQ: 100PC
Price: Negotiable
Supply Ability: 100pcs/day
Packaging Details: 1pc/parer carton
Type: Lithium iron phosphate
Voltage: 12V
Capacity: 75AH
Weight: 9kg
Size: 265*168*211mm
Model: KTQG-12075
Package: Paper Carton
Original: China
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

12V/24V 75AH Lifepo4 Battery For Solar Storage System And Electric Transportation Power Supply

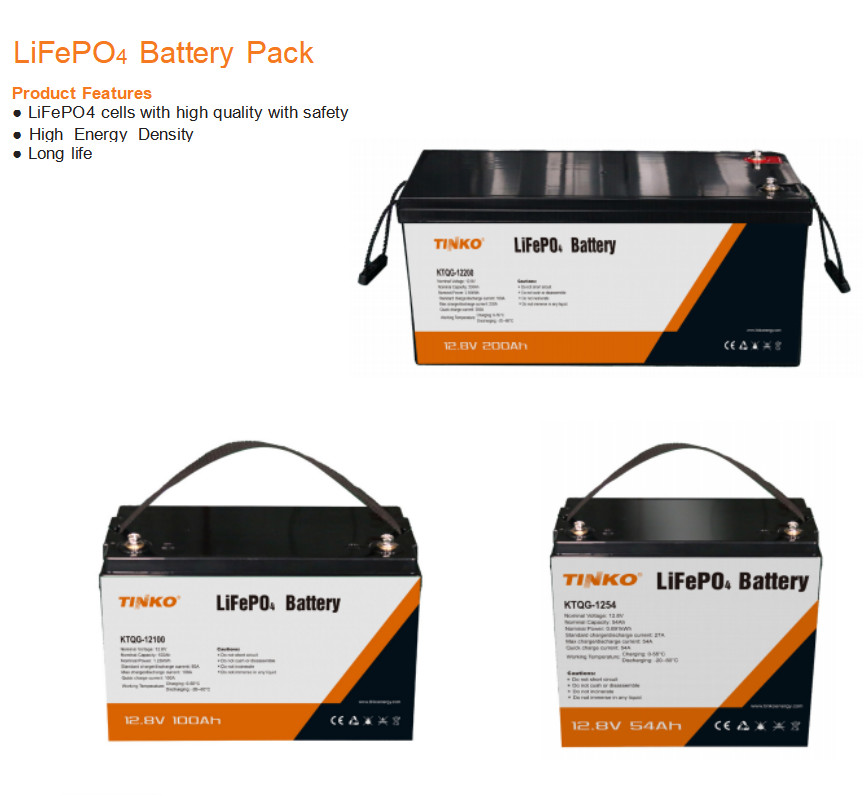

High Density 12V 75AH Lifepo4 Battery for Solar Storage System and Golf Cart


Product Description


Lithium iron phosphate (LiFePO4) batteries, known as LFP batteries, now are widely use in many product such as golf cart, solar street light, LED light, Bluetooth speaker, power tools, solar energy storage system, power supplies and so on.

Our TINKO lifepo4 battery do not suffer from the issues of degradation and fast capacity loss as lead-acid batteries, it self discharge rate is very small, so they can store the power for a longer time and you needn't to charge it frequentlly as other types of rechargeable batteries. Besides, lithium iron phospate batteries are much lighter than lead-acid batteries, this making them suitable for applications where requiring weight reduction, such as electric vehicles and portable devices. Besides, the cycle life of lithium batteries is usually 2-3 times that of lead-acid batteries, so it is more economically than lead acid battery by reducing replacement frequency and maintenance costs.


Product Parameters


NO



Projects



Specification



Remark



Cell unit parameter


1

Battery types and materials


LiFePO4
2

Rated voltage/capacity


3.2V / 75Ah
3

Single battery voltage range


2.5V~3.65V
4

Single battery weight


1.4Kg
5

The battery internal resistance


≤ 0.4mΩ

Battery parameter


1

Rated voltage


12.8V
2

Rated capacity


75Ah
3

Battery pack voltage range


10~14.6V
4

Total Power


960Wh
5

Combination


4S1P
6

Insulation resistance test value


≥1.2MΩ
7

Operating temperature


Charging 0 ~ 55℃;

Discharging -20 ~ 60℃

8

Standard charging current


0.2C
9

Quick charging current


0.5C
10

Standard discharge current


0.5C
11

Maximum continuous discharge current


1C
12

Gross weight


Around 9KG
13

Ambient relative humidity


20-85%RH
14

Battery size


265*168*211mm(±2mm)
