Architectural Facade Wire Rope Plant Trellis Climbing Support Yard Decoration

Categories Wire Rope Plant Trellis
Brand Name: Yuntong
Model Number: YT--F-2075
Certification: CE , SGS
Place of Origin: Hebei
MOQ: 10 Sqm
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 300Sqm/Week
Delivery Time: 5-8 Work Days
Packaging Details: Package film for each piece,Several pieces packed in 1 carton
Material: Stainless Steel 304 , 316 , 316L
Wire Rope: 1.6 mm to 2.4 mm
Rope Constructions: 7 x 7 , 7 x 19 , 1 x 19
Mesh Orientation: Horizontal , Vertical
Product Name: Wire Rope Mesh Plant Trellis
Mesh Shape: Rhombus , Diamond
Application: Green Wall , Plant Trellis ,Climbing Net
Mesh Angle: 60 degree
Mesh Style: X-tend in Ferruled Type
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Architectural Facade Wire Rope Plant Trellis Climbing Support Yard Decoration

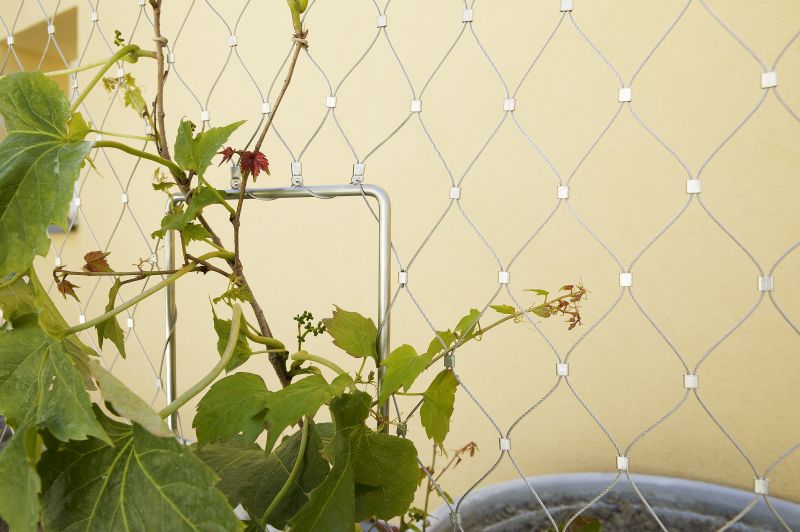

Architectural Facade Green Wall Wire Rope Mesh Plant Trellis

Cable Wire Mesh Specifications Sheet :


Hole Size

(Opening)

1.2MM(3/64)

(7 x 7 )

1.6MM(1/16)

(7 x 7 )

2.0MM(5/64)

(7 x 7 )

2.4MM(3/32)

(7 x 7 )

3.2MM(1/8)

(7 x 19 )

20 x 35mmYT-1235
25 x 42mmYT-1225YT-1625
30 x 52mmYT-1230YT-1630YT-2030
35 x 60mmYT-1235YT-1635YT-2035
38 x 66mmYT-1238YT-1638YT-2038YT-2438
40 x 69mmYT-1240YT-1640YT-2040YT-2440YT-3040
50 x 86mmYT-1250YT-1650YT-2050YT-2450YT-3050
60 x 104mmYT-1260YT-1660YT-2060YT-2460YT-3060
70 x 120mmYT-1270YT-1670YT-2070YT-2470YT-3070
76 x 131mmYT-1276YT-1676YT-2076YT-2476YT-3076
80 x 138mmYT-1280YT-1680YT-2080YT-2480YT-3080
90 x 154mmYT-1290YT-1690YT-2090YT-2490YT-3090
100 x 173mmYT-12100YT-16100YT-20100YT-24100YT-30100
120 x 206mmYT-12120YT-16120YT-20120YT-24120YT-30120


Material of Stainless Steel X-tend Cable Mesh : Stainless steel 304,304L,316,306L etc.

SS304(%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035
SS316(%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5
SS316L(%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0~18.0, Ni:12.0~15.0

Architectural Cable Wire Mesh by Yuntong made from stainless steel wires, and has skin-like characteristics. It can form a plane surface but can also be tensioned into three-dimensional forms featuring funnel-like, cylindrical or spherical.


Stainless Steel Cable Mesh is custom manufactured to in widths and lengths to suit your architectural application. Finished diamond mesh style when it is stretched at 60 degree angle ; Diagonal and irregular shapes can also be supplied. Mesh can be applied in either a vertical or horizontal direction, again dependent on the balustrade or railing design and the required aesthetics.

Recommended Stainless Steel Cable Mesh Specification For Architectural Facade :


MaterialCable DiameterHole SizeNormal Break
SS304/316/316L3/32" (2.4MM)2.5" x 2.5"920LBS
SS304/316/316L3/32" (2.4MM)3" x 3"920LBS
SS304/316/316L3/32" (2.4MM)4" x 4"920LBS
SS304/316/316L5/64" (2.0MM)2.5" x 2.5"676 LBS
SS304/316/316L5/64" (2.0MM)3" x 3"676 LBS
SS304/316/316L5/64" (2.0MM)4" x 4"676 LBS

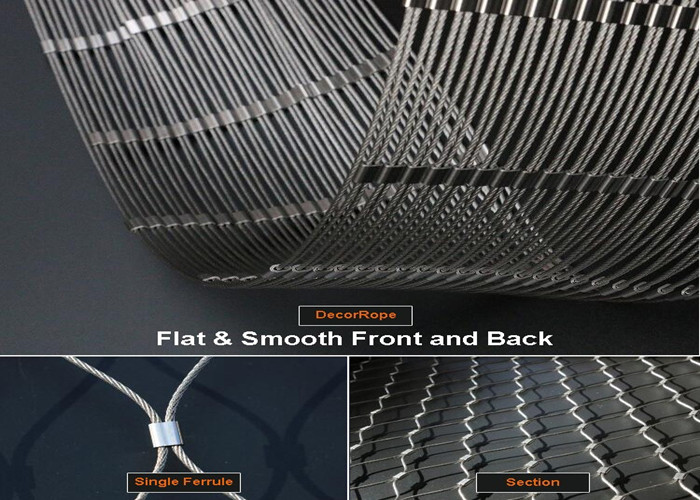

X-TEND Stainless steel mesh is light, robust, and transparent. High-quality stainless steel cables and pressed ferrules are used for the production of the mesh and connected to a load-bearing and flexible structure. The curvature in the opposite direction of the stainless steel cables creates the exceptionally robust characteristics of X-TEND – the mesh can even stand up to heavy loads.
