| Categories | Wire Rope Plant Trellis |
|---|---|
| Brand Name: | Yuntong |
| Model Number: | YT--F-2075 |
| Certification: | CE , SGS |
| Place of Origin: | Hebei |
| MOQ: | 10 Sqm |
| Payment Terms: | T/T, Western Union,PayPal |
| Supply Ability: | 300Sqm/Week |
| Delivery Time: | 5-8 Work Days |
| Packaging Details: | Package film for each piece,Several pieces packed in 1 carton |
| Material: | Stainless Steel 304 , 316 , 316L |
| Wire Rope: | 1.6 mm to 2.4 mm |
| Rope Constructions: | 7 x 7 , 7 x 19 , 1 x 19 |
| Mesh Orientation: | Horizontal , Vertical |
| Product Name: | Wire Rope Climber Plant Trellis Mesh |
| Mesh Shape: | Rhombus , Diamond |
| Application: | Green Wall , Plant Trellis , Climbing Net |
| Mesh Angle: | 60 degree |
| Mesh Style: | X-tend in Ferruled Type |
| Company Info. |
| Anping Yuntong Metal Wire Mesh Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Green Wall Screen Stainless Wire Rope Climber Plant Trellis Mesh
Cable Wire Mesh Specifications Sheet :
Hole Size (Opening) | 1.2MM(3/64) (7 x 7 ) | 1.6MM(1/16) (7 x 7 ) | 2.0MM(5/64) (7 x 7 ) | 2.4MM(3/32) (7 x 7 ) | 3.2MM(1/8) (7 x 19 ) |
| 20 x 35mm | YT-1235 | ||||
| 25 x 42mm | YT-1225 | YT-1625 | |||
| 30 x 52mm | YT-1230 | YT-1630 | YT-2030 | ||
| 35 x 60mm | YT-1235 | YT-1635 | YT-2035 | ||
| 38 x 66mm | YT-1238 | YT-1638 | YT-2038 | YT-2438 | |
| 40 x 69mm | YT-1240 | YT-1640 | YT-2040 | YT-2440 | YT-3040 |
| 50 x 86mm | YT-1250 | YT-1650 | YT-2050 | YT-2450 | YT-3050 |
| 60 x 104mm | YT-1260 | YT-1660 | YT-2060 | YT-2460 | YT-3060 |
| 70 x 120mm | YT-1270 | YT-1670 | YT-2070 | YT-2470 | YT-3070 |
| 76 x 131mm | YT-1276 | YT-1676 | YT-2076 | YT-2476 | YT-3076 |
| 80 x 138mm | YT-1280 | YT-1680 | YT-2080 | YT-2480 | YT-3080 |
| 90 x 154mm | YT-1290 | YT-1690 | YT-2090 | YT-2490 | YT-3090 |
| 100 x 173mm | YT-12100 | YT-16100 | YT-20100 | YT-24100 | YT-30100 |
| 120 x 206mm | YT-12120 | YT-16120 | YT-20120 | YT-24120 | YT-30120 |
Material of Wire Rope Plant Trellis Mesh : Stainless steel 304,
304L,316,306L etc.
| SS304 | (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035 |
| SS316 | (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5 |
| SS316L | (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0 |

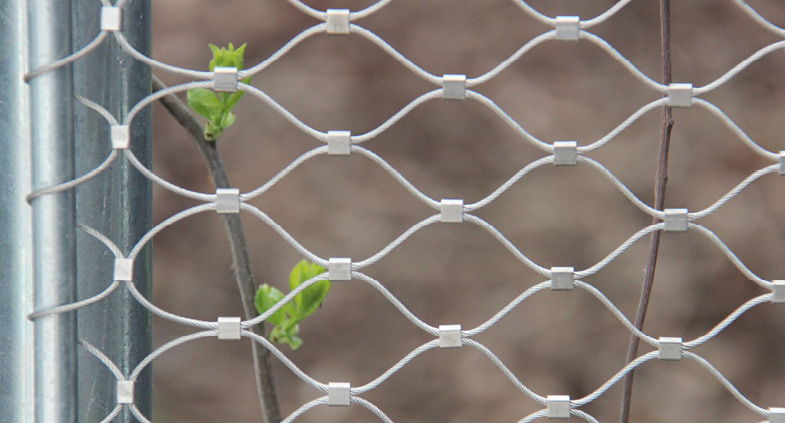

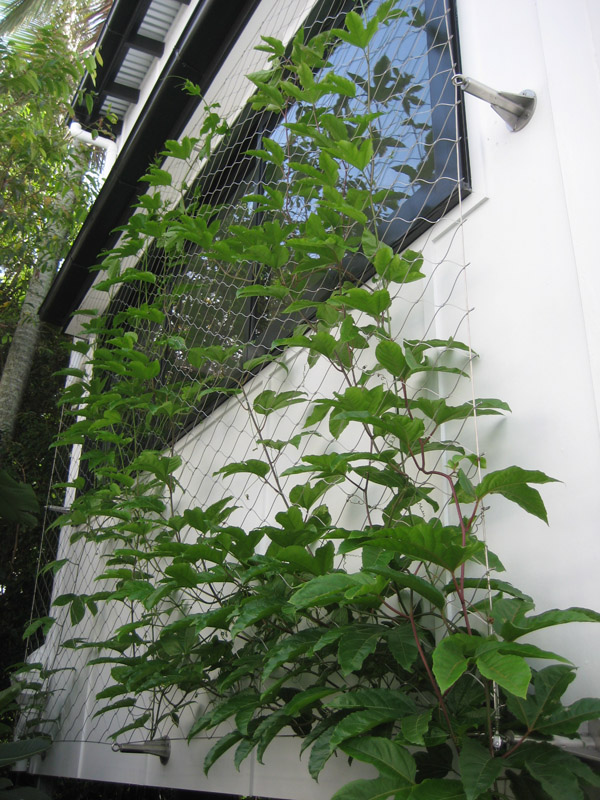

Wire Rope Climber Plant Trellis Mesh by Yuntong made from stainless steel wires, and has skin-like characteristics. It can form a plane surface but can also be tensioned into three-dimensional forms featuring funnel-like, cylindrical or spherical.
Stainless Steel Cable Mesh is custom manufactured to in widths and lengths to suit your architectural application. Finished diamond mesh style when it is stretched at 60 degree angle ;Diagonal and irregular shapes can also be supplied. Mesh can be applied in either a vertical or horizontal direction,again dependent on the balustrade or railing design and the required aesthetics.
Recommended Stainless Steel Cable Mesh Specification For Climber Plant Trellis Mesh :
| Material | Cable Diameter | Hole Size | Normal Break |
| SS304/316/316L | 3/32" (2.4MM) | 2.5" x 2.5" | 920LBS |
| SS304/316/316L | 3/32" (2.4MM) | 3" x 3" | 920LBS |
| SS304/316/316L | 3/32" (2.4MM) | 4" x 4" | 920LBS |
| SS304/316/316L | 5/64" (2.0MM) | 2.5" x 2.5" | 676 LBS |
| SS304/316/316L | 5/64" (2.0MM) | 3" x 3" | 676 LBS |
| SS304/316/316L | 5/64" (2.0MM) | 4" x 4" | 676 LBS |
X-TEND Stainless steel mesh is light, robust, and transparent.
High-quality stainless steel cables and pressed ferrules are used
for the production of the mesh and connected to a load-bearing and
flexible structure. The curvature in the opposite direction of the
stainless steel cables creates the exceptionally robust
characteristics of X-TEND – the mesh can even stand up to heavy
loads.
|
