| Categories | Vein Locator Device |
|---|---|
| Brand Name: | BIO |
| Model Number: | BS300 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 unit |
| Payment Terms: | Credit card, Paypal, T/T |
| Supply Ability: | 200 units / month |
| Delivery Time: | 7 working - days since getting full payment |
| Packaging Details: | Carton (30*27*16cm) 3kg |
| Effective objecting distance in positive direction: | 200±20mm |
| Strength of objecting light: | ＜ 80lux |
| Wavelength of objected light: | 850nm |
| Deviation: | <1mm |
| Power supply: | Lithium ion battery |
| Image resolution: | 720*480 |
| type: | handheld/table/trolley |
| warranty: | 12 months |
| Company Info. |
| Wuxi Biomedical Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Palm Vein Scanner Vascular Injection Vein Illuminator Vein Imaging Device With Rechargeable Battery
Venipuncture:
Helpful throughout the whole venipuncture procedure.
Before venipuncture:
Helpful for finding the invisable veins and the special veins efficiently and easily, evaluate the vein condition.
During venipuncture:
Shows the vein position, trend, branch, crossing
After venipuncture:
Check the hematoma ; Check the injection liquid flow.
• Increase first stick success by up to 100%
• Decrease medically unnecessary PICC lines by greater than 30%
• Increase patient satisfaction by 100%
Aesthetic Facial Injection
• Accidentally hitting a vein during injection of fillers and other cosmetic facial treatments can cause intense pain and facial bruising (damage).
• Veins in the area indicated in the right image is visable by vein illuminator, the visibility of the veins locted on the other area depends on the facial veins and musle condition of patient.
Specifications
| Light type | Near-infrared light |
| Infrared wavelengths | 850 nm |
| Image resolution | 720*480 |
| Visible Vein Size | ≥1mm |
| Accuracy | 0.25mm |
| Depth of Visible Vein | ≤12mm |
| Best projection distance | 200±20mm |
| Image frame rate | 20FPS |
| LED lifetime | 20000 hours |
| Power Supply | DC 5V ≤3.5W |
| Weight | 450g |
| Dimension | 240x60x60mm (LxWxH) |
| Battery volume | 4400mAH |
| Battery working time | ≈ 5 hours |
| Charging time | ≈ 3 hours |
| Battery detachable | Yes |
| Operating Mode | Handheld or Suspension |
| Package information | 30*27*16cm, 2.3kg |
Standard configuration
| main unit | 1 unit |
| battery | 1 pc |

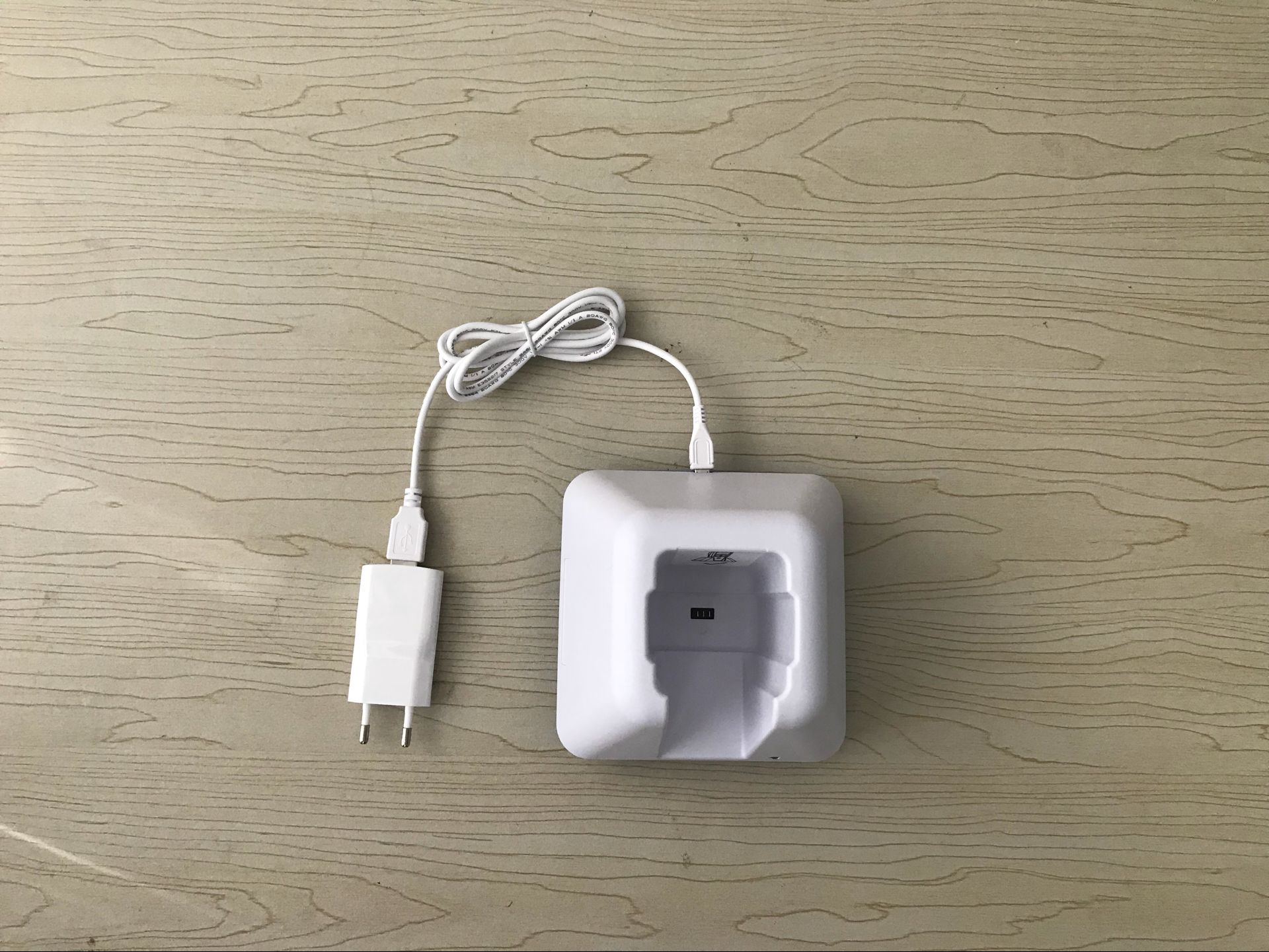

| charging base | 1 pc |
Optional
Fixed support  | 1 unit |
Mobile support | 1 unit |
What kinds of patients is it suitable for?
Children
The elderly
Obese patients
Dark-skinned patients
Patients with anemia, hypotension, or excessive loss of blood
Our Service
1. All your inquires will be replied within 24 hours;
2. Professional team who have professional attitude to recommended
products;
3. One year free warranty and after-sales service are guaranteed;
4. OEM and customized services are available;
5. Experienced engineers can help you better use our products.
Product Image
Pls find the belows catalogue and user's manual of vein locator BS300 for reference:
E-catalogue for BIO_BS300 Vein Finder-20160908.pdf
vein finder bs300 user's Manual.pdf
