| Categories | Vein Locator Device |
|---|---|
| Brand Name: | BIO |
| Model Number: | BS300 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 unit |
| Payment Terms: | Credit card, Paypal, T/T |
| Supply Ability: | 200 units / month |
| Delivery Time: | 7 working - days since getting full payment |
| Packaging Details: | Carton (30*27*16cm) ,3kg |
| Effective objecting distance in positive direction: | 200±20mm |
| Strength of objecting light: | ＜ 80lux |
| Wavelength of objected light: | 850nm |
| Deviation: | <1mm |
| Power supply: | Lithium ion battery |
| Image resolution: | 720*480 |
| Company Info. |
| Wuxi Biomedical Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Portable Near-infrared Light Vein Detector Vein Scanner With 0.25mm Accuracy
This vein viewing system is designed for venipuncture. It can be used widely in hospital, pediatric clinic,
emergency room, outpatient clinic/center, clinical laboratory, blood bank/center, military medics unit,
the CDC, rehabilitation center, nursing homes and others.
What kinds of patients is it suitable for?
Children
The elderly
Obese patients
Dark-skinned patients
Patients with anemia, hypotension, or excessive loss of blood
Specifications
| Light type | Near-infrared light |
| Infrared wavelengths | 850 nm |
| Image resolution | 720*480 |
| Visible Vein Size | ≥1mm |
| Accuracy | 0.25mm |
| Depth of Visible Vein | ≤12mm |
| Best projection distance | 200±20mm |
| Image frame rate | 20FPS |
| LED lifetime | 20000 hours |
| Power Supply | DC 5V ≤3.5W |
| Weight | 450g |
| Dimension | 240x60x60mm (LxWxH) |
| Battery volume | 4400mAH |
| Battery working time | ≈ 5 hours |
| Charging time | ≈ 3 hours |
| Battery detachable | Yes |
| Operating Mode | Handheld or Suspension |
| Package information | 30*27*16cm ,3kg |
What makes it so different?
| Optimized structure | Easy to disassemble and fold. Smaller and safer package which saving freight cost. |
| More usable cushions | Equipped with both hand cushion and elbow cushion |
| Enhanced image | Clearer vein image, less noises and interference |
| Safe | Use safe light source, no laser, no radiation |
| Color image | Clear and accurate |
| No patient contact | Clear and accurate |
| Easy to learn and use | no pre-use calibration or adjustments are necessary just turn it on to display the veins beneath the skin |
| Small size | The BS300 fits in your hand and weighs no more than 480g |
| Hands-free option | The BS300 can be converted from hand held to hands-free quickly and easily |
| Works in light or dark | Use the BS300 in light or darkly lit environments |
Venipuncture:
Helpful throughout the whole venipuncture procedure.
Before venipuncture:
Helpful for finding the invisable veins and the special veins efficiently and easily, evaluate the vein condition.
During venipuncture:
Shows the vein position, trend, branch, crossing
After venipuncture:
Check the hematoma ; Check the injection liquid flow.
• Increase first stick success by up to 100%
• Decrease medically unnecessary PICC lines by greater than 30%
• Increase patient satisfaction by 100%
Aesthetic Facial Injection
• Accidentally hitting a vein during injection of fillers and other cosmetic facial treatments can cause intense pain and facial bruising (damage).
• Veins in the area indicated in the right image is visable by vein illuminator, the visibility of the veins locted on the other area depends on the facial veins and musle condition of patient.
Our Service
1. All your inquires will be replied within 24 hours;
2. Professional team who have professional attitude to recommended
products;
3. One year free warranty and after-sales service are guaranteed;
4. OEM and customized services are available;
5. Experienced engineers can help you better use our products.
Your satisfaction is our duty! It will be our great honor to serve
you.
We do hope we can offer you more help in medical field and build
the long term business relationship with you.

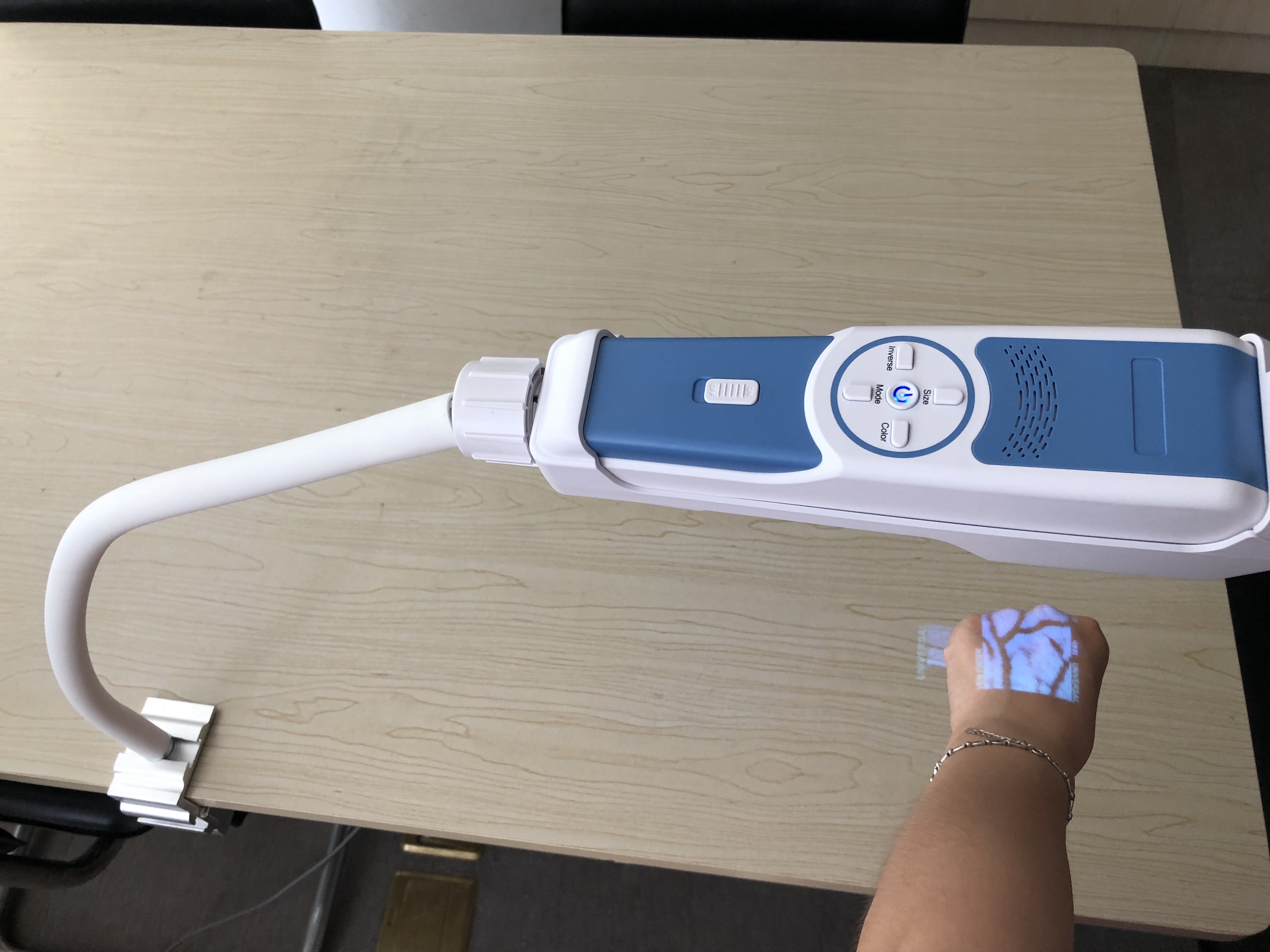

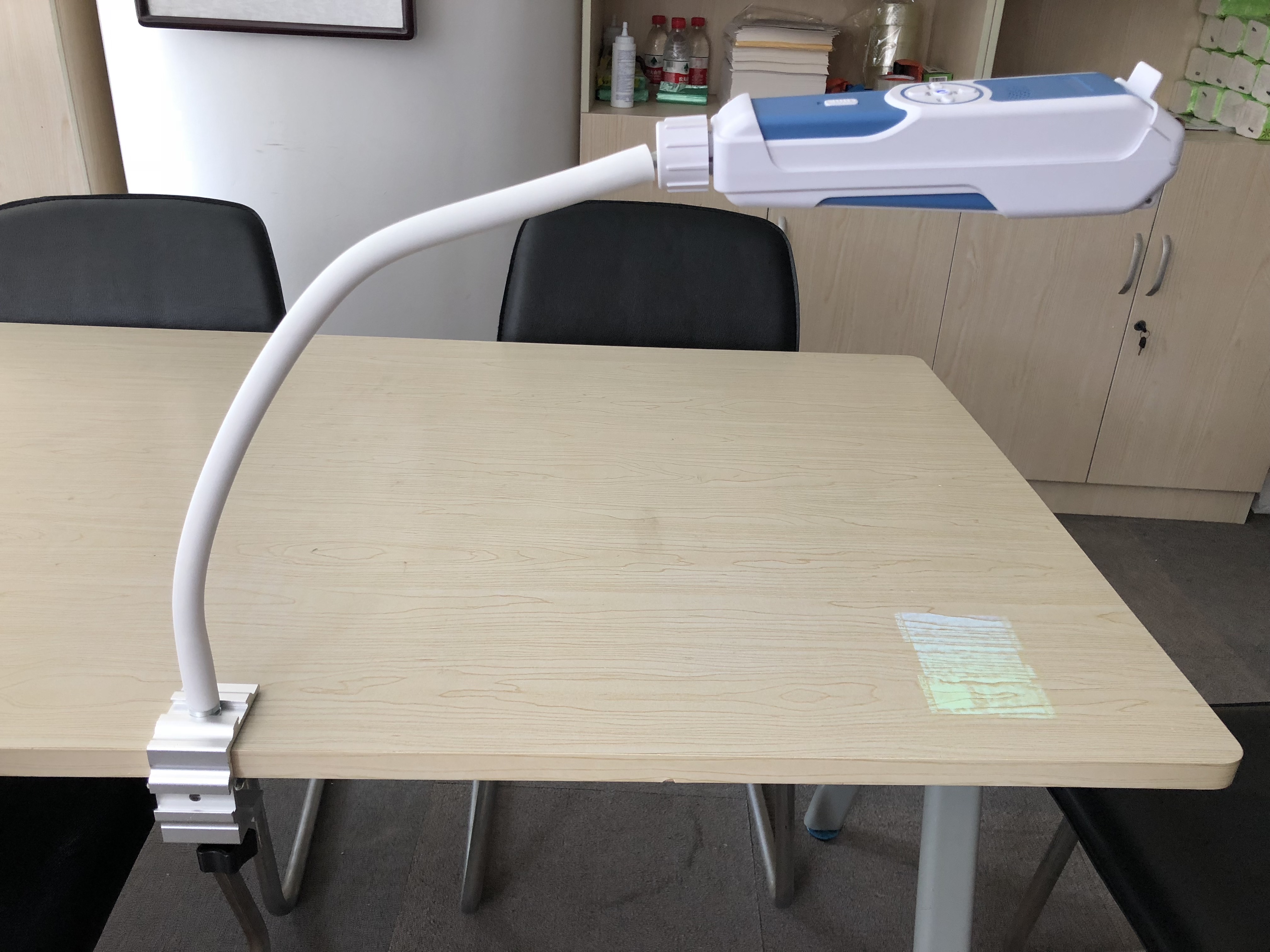

Product Image
Customers reception
Pls click the below brochures and user's manual for reference:
E-catalogue for BIO_BS300 Vein Finder-20160908.pdf
|
