Independent Grid Hybrid Solar Power Inverter / Solar Grid Tie Inverter Battery Connected

Categories Hybrid Solar Inverter
Brand Name: SOROTEC
Model Number: REVO II
Certification: CE
Place of Origin: China
MOQ: 10PCS
Payment Terms: L/C, T/T
Supply Ability: 1000PCS/Month for REVO Series Solar Inverter
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Packaging Details: Standard Exported Cartons and Pallets.
Maximum AC Input Current: 60A
Max PV Array Power: 5000W
Nominal DC Voltage: 48VDC
Nominal Output Voltage: 220/230/240VAC
Frequency Range: 50Hz/60Hz (Auto sensing)
MPPT Range @ Operating Voltage: 120-450VDC
Maximum Solar Charge Current: 90A
Power Factor: =1.0
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

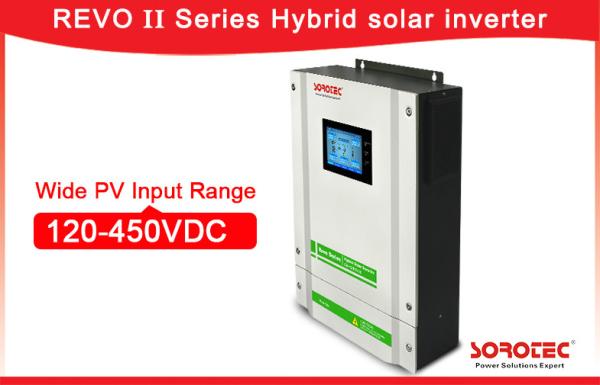

Independent Grid Hybrid Solar Power Inverter / Solar Grid Tie Inverter Battery Connected

Independent CPU 220/230/240VAC Solar Power Inverters with Battery Connected


Key Features:


1.Touch screen display.
2.PV and utility power take the load at same time(can setting).
3.Output power factor PF=1.0.
4.On&Off Grid with energy storage.
5.Energy generated record,load record,history information and fault record.
6.Language and time setting.
7.Structure with dust filter.
8.AC charging and AC output time setting.
9.Charging voltage and charging current timing.
10.External Wi-Fi device optional.
11.Parallel operation up to 12 units .
12.Connected with battery optional.
13.Wide PV input range 120-450VDC.
14.Independent CPU.
15.MAX PV Array power 5000W.
16.Solar and Utility supply power to the load when solar power is not sufficient to load.
Product Show:

Wall Mounted Integrated Solar Power Inverter Technical Specification
Built-in MPPT Solar Controller

MODELREVO II 3K-24REVO II 3.2K-48REVO II 5.5K-48
Max PV Array Power5000W
Rated Output Power3000W3200W5500W
Maximum PV Array Open Circuit Voltage500VDC
MPPT Range @ Operating Voltage120-450VDC
GRID-TIE OPERATION
GRID OUTPUT (AC)
Nominal Output Voltage220/230/240VAC
Output Voltage Range184-265VAC
Nominal Output Current15A
EfficiencyUp to 93.5%
OFF-GRID, HYBRID OPERATION
GRID INPUT
Acceptable Input Voltage Range90-280VAC or 170-280 VAC
Frequency Range50Hz/60Hz (Auto sensing)
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage220/230/240VAC
Output Wave FormPure sine wave
BATTERY & CHARGER
Nominal DC Voltage24VDC48VDC
Maximum Solar Charge Current90A
Maximum AC Charge Current60A
Maximum Charge Current90A
Emergency output power
Maximum output power3000W3200W5500W
Automatic Transfer Time<8ms
GENERAL
INTERFACE
Parallel FunctionYes
CommunicationUSB or RS232/Dry-Contact
ENVIRONMENT
Humidity0~90% RH (No Condensing)
Operating Temperature0 to 50 °C
SOROTEC Three Main Products



APPLICATION OF OUR PRODUCT


1. Living house and home building.

2. Office building, factory and warehouse.

3. Shopping mall, stadium and so on.

4. Power station, field operation and some huge engineer construction.

5. Suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip.

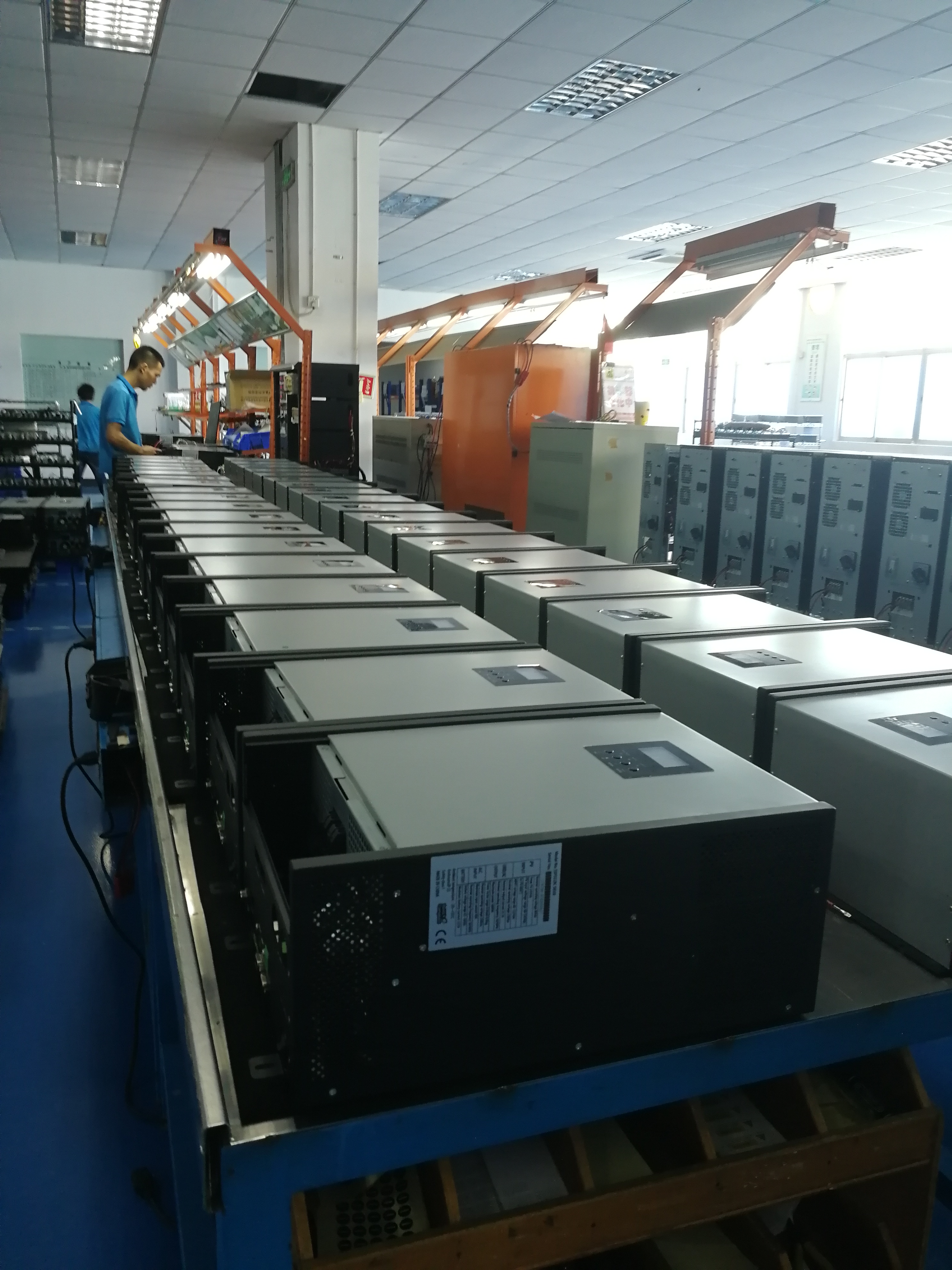

COMPANY SHOW

Introduction of Company

Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.

Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.
