Brand Name: | OK |
Model Number: | OK12832-09 |
Certification: | SGS |
Place of Origin: | China |
MOQ: | 1000pcs |
Price: | usd 1.99-2.99 pcs |
Payment Terms: | Western Union, L/C, T/T, MoneyGram |
Supply Ability: | 100000pcs |
Delivery Time: | 15-25days |
Packaging Details: | 50pcs in one tray, 15 trays in one inner box, 4 inner box in 1 outer box. Outer Box Dimensions: 49*48*31cm. Gross Weight is around 13KGs |
Item No.: | OK12832-02 |
Size: | 0.91inch |
resolution: | 128*32inch |
Interfae: | I2C |
Application: | smart watch |
Drive IC: | SSD1306 |

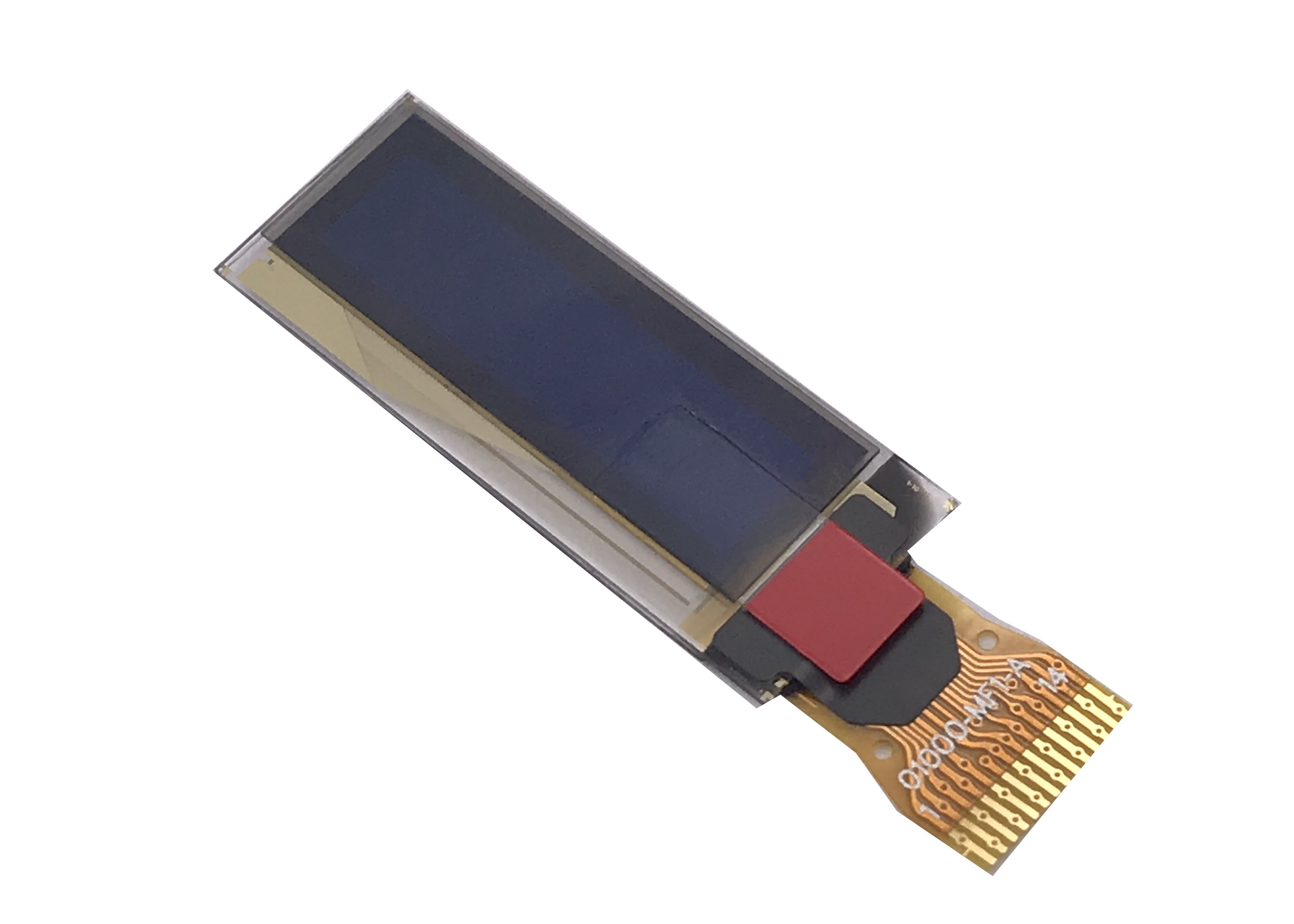

OK Smart oled isis the graphic OLED display module made of 128x32 individual blue OLED pixels,diagonal is only 0.91 inch.The controller ic SSD1306, communicates via 4-wire serial spi interface only,thanks to controller's built-in voltage generation,only a single 2.8V power supply is needed. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.The fpc is the soldering type,no need connector.Just solder the FPC on your PCB directly.
item No. | OK12832-02 |
size | 0.91inch |
VA | 24.384*7.584mm |
Driver IC | SSD1306 |
Wide angle | 160 degree |
operating tempeture | -20-70 degree |
DATESHEET:
Other hot selling OLED items from OKSMART
OUR TEAM :
About our Factory
We, Shenzhen OK smart-LCM photoelectric co., Ltd focus on the LCD screen and module in high quality, high effiency,
high ROI building long-term partnership with each other not
one-time business.
It would be our most pleasure to be your trusted sourcing partner
handing the purchasing, exporting and after-service issue in China,
you develop market and promote sales with 100% energy without any
worries.
for more details ,pls contact me :
![]() |
