Brand Name: | OKSMART |
Model Number: | OKP12832-09 |
Certification: | SGS |
Place of Origin: | Shenzhen China |
MOQ: | 3000 |
Price: | usd 1.40 - 2.85 piece |
Payment Terms: | T / T, trade assruance, Western Union, L/C, D/A, D/P, MoneyGram |
Supply Ability: | 10000 pieces per month |
Delivery Time: | 1- 30 working days |
Packaging Details: | Cartons, Capboard, EPE, Blister Tray. About how many products in one package, it is up to the size of products. |
display: | oled |
dot matrix: | 128X32 |
Interface: | I2C |
Item Min: | Max |
0.91inch high brightness high contrast sunlight visible wide temperature range low power consumption fast response

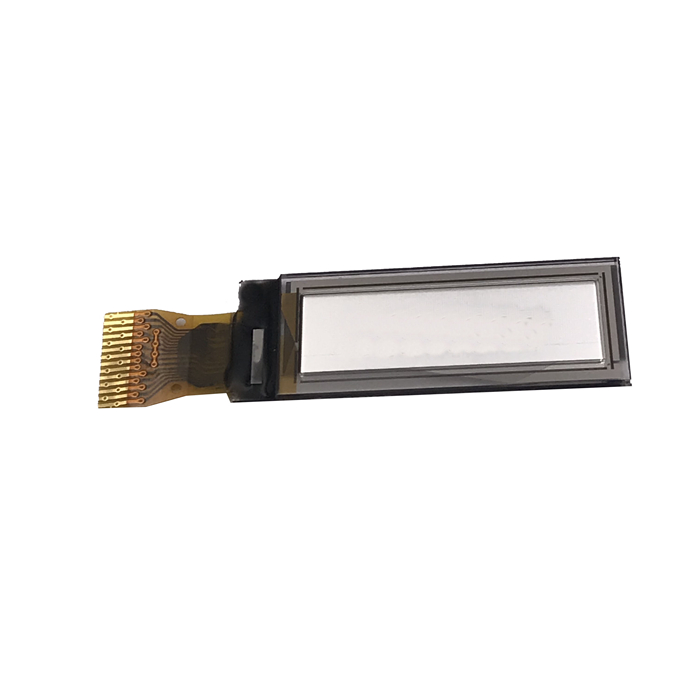

0.91inch OLED with 128*32 resolution for smart wearable application
Advantage : 1.3 inch oled advantage : High Contrast Ratio(10000:1)
Free Viewing Angle
Fast Response Time (≦ 10μs)
Thinner & Lighter & Durable
Wide Operation Temperature (-40~85℃)
No need of backlight, self emitting
Apply to most products from any area.
Trend of Displays
Leading the green vision
Diagonal Screen Size | 0.91 inch | Color Monochrome | (white/Blue) |
Number of Pixels | 128X32 | Active Area | 22.384X5.584mm |
Drive IC | SSD1306 | Pixel pitch | 0.175X0.175mm |
![]() |
